Today’s audiences don’t just listen — they feel the music through visuals.
At every major festival or club, the LED screen has become the centerpiece of the stage, blending sound, light, and motion into one immersive experience. It transforms rhythm into light, and performance into emotion.

🎵 Immersive Visual Impact
⚡ Dynamic Synchronization
🌈 Vivid Color and Depth
🧩 Flexible Stage Integration
🚀 Built for Touring and Events
🔧 Reliable for Continuous Operation

LED Display Price Calculator

Just fill the sizes, and get your LED screen budget right now !

Precision and Reliability Behind Every Frame

Every pixel matters when visuals are part of the performance.
A professional-grade DJ LED screen must meet the standards of clarity, consistency, and reliability demanded by live entertainment.

Performance Standard	Professional Benchmark	Impact on Live Events
Refresh Rate	≥ 3840Hz	Prevents flicker on camera and live stream
Brightness	1500-5000 nits	Visible under stage lighting and sunlight
Color Accuracy	16-bit grayscale or higher	Delivers smooth gradients and lifelike tones
Signal Redundancy	Dual backup supported	Keeps the show running under any condition
Module Tolerance	≤ 0.1 mm	Guarantees seamless splicing for large screens

Why DJ LED Screens Stand Out?

DJ LED screens are built for live performance, and that’s what makes them different from regular displays.

High Brightness & Visibility

Even under club lights or bright outdoor stages, visuals remain sharp and vivid. Your audience sees every detail, whether it’s a looping visual, logo, or live feed.

Customizable Pixel Pitch

From ultra-close indoor booths to large outdoor stages, DJs can choose the right resolution for the perfect viewing experience.

Flexible Sizes & Shapes

Panels can be arranged to fit booths, backdrops, or entire stage walls. Some DJs even use curved or tunnel setups to create immersive visuals.

Fast Setup & Portability

Designed with touring DJs in mind, LED panels are lightweight, easy to lock together, and come in flight cases for safe transport.

Real-Time Visual Control

Most DJ LED screens can sync with VJ software or DJ controllers, letting you mix visuals as fluidly as your music.

Durability

Built to withstand constant assembly, disassembly, and live event conditions, from smoky clubs to outdoor festivals.

Partnership That Goes Beyond the Screen

A great performance doesn’t stop when the music fades—and neither does our support. We stay with you every step of the way, offering a full-service solution that makes your DJ LED setup stress-free and reliable.

We help you pick the right pixel pitch and screen layout to fit your venue perfectly.

Every screen is calibrated for color, brightness, and performance before it even leaves our warehouse.

Certified engineers are ready to assist worldwide, so you’re never left in the dark.

All LED modules, power supplies, and controllers come with 2–3 years of protection.

We equip your team with the knowledge and extras they need to handle future shows with confidence.

LedInCloud Design Philosophy

LedInCloud’s DJ LED panels are engineered with the stage in mind — every component serves both artistic expression and operational reliability.

Ultra-Slim Stage Build

Crafted from high-strength aluminum alloy, each cabinet is both durable and easy to handle. The reduced weight simplifies transport and rigging, making it ideal for touring events or rapid venue changeovers.

Quick-Lock Assembly

Integrated locks and alignment pins allow a single technician to assemble or disassemble panels within minutes. This design dramatically shortens setup time while maintaining a perfectly seamless visual surface.

Smart Color Match

Each LED module is factory-calibrated and supports on-site fine tuning, ensuring color consistency across every panel — even after multiple installations. The result is a smooth, unified image that enhances the visual atmosphere without distraction.

Low-Latency Signal

Our advanced control systems minimize delay between audio and video output. Visuals respond instantly to rhythm changes, guaranteeing that light and sound stay perfectly synchronized throughout the performance.

Creative Setup Flex

From curved walls to 360° DJ booths and LED dance floors, the modular design supports endless layout possibilities. Panels can be combined in different shapes or orientations to match unique stage concepts and architectural limits.

Stable Power Flow

Dual-supply power redundancy and optimized heat dissipation keep the system stable during long, high-energy shows. Even under intense lighting and high temperatures, the display maintains consistent brightness and performance.

Send Us Message

If you have any LED display projects or technical problems regarding our LED display products. Please send us a message, we will reply to you in 24 hours.

ATTENTION: lf you bought LED Display & LED Module from other suppliers, Please get help from them directly.

DJ LED Screen: Bring Music and Visuals Together on Stage

A DJ LED screen is no longer a luxury—it has become part of the DJ booth itself. When the beat drops, the lights hit, and the visuals explode across the screen, the room shifts. The crowd doesn’t just hear the music; they see it, feel it, and move with it. That’s the power of a DJ LED video wall.

This guide takes you through everything you need to know about DJ LED screens.

1. What Is a DJ LED Screen?

A DJ LED screen is a large digital display made of many LED panels. Each panel is built from tiny light-emitting diodes. These diodes create red, green, and blue light. Together, they form bright, sharp images that can be seen from close up or far away. When panels are locked together, they create a seamless video wall.

For DJs, the screen is more than decoration. It works as a stage backdrop, a booth front, or even a floor panel. It can play music videos, looped graphics, live camera feeds, or animated text. The content moves with the beat, turning sound into a visual show.

A DJ LED screen is a tool to connect music and visuals. It gives DJs the power to shape atmosphere, guide energy, and add another layer to performance.

2. Core Benefits of a DJ LED Video Wall

A DJ LED video wall does more than show pretty pictures. It changes how people experience your set. The screen becomes part of the music, shaping the mood of the room.

(1) Strong Visual Impact

Music alone can move people, but music plus visuals creates a deeper hit. Bright colors, patterns, and videos on a DJ LED display catch attention instantly. Even in a crowded club or a big outdoor stage, the screen stands out and makes the performance memorable.

(2) Flexibility for Any Event

One of the biggest strengths of a DJ LED wall is how it adapts. For a wedding, you can show videos, photos, or names of the couple. In a nightclub, you can run motion graphics that pulse with the beat. At a festival, the screen can stretch wide as a backdrop for thousands of people to see. The same screen can serve very different roles.

(3) Branding and Personal Style

DJs often want their booth to feel unique. A DJ booth LED screen can show logos, artist names, or custom visuals that match a personal style. For clubs or event companies, it can display sponsors, promotions, or themed visuals. The screen is not just a tool—it’s part of the identity of the show.

(4) Better Engagement with the Crowd

LED walls make it easier to connect with people in the room. A simple example: show lyrics on screen so the audience can sing along. Or display live camera shots of the dance floor. When the crowd sees themselves on the big screen, energy jumps.

(5) A Professional Look

Even a small DJ setup feels more complete with an LED screen. It shows that thought has been put into production. For clients booking a wedding DJ or a corporate event, the screen adds value. For club owners, it raises the overall look of the venue.

3. Types of DJ LED Display

Not all DJ LED screens are made equal. How you use them changes everything. The type you pick can make your set feel flat—or unforgettable.

3.1 DJ Booth LED Screen

This one sits right in front of the DJ. It’s small but powerful. For parties, it can show short clips timed to the dance. In clubs, it’s perfect for animations, logos, or visuals that pulse with the beat. The audience is close, so resolution matters. Too low, and the visuals look pixelated; too high, and you’re paying for something you won’t fully use.

Quick tip: lightweight panels with fast locks make setup and teardown painless.

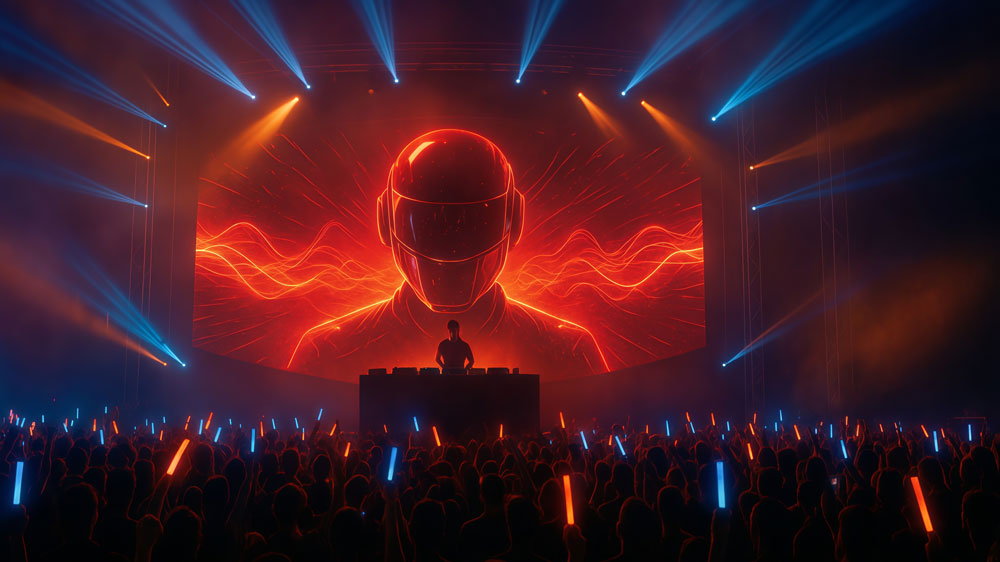

3.2 Backdrop LED Wall

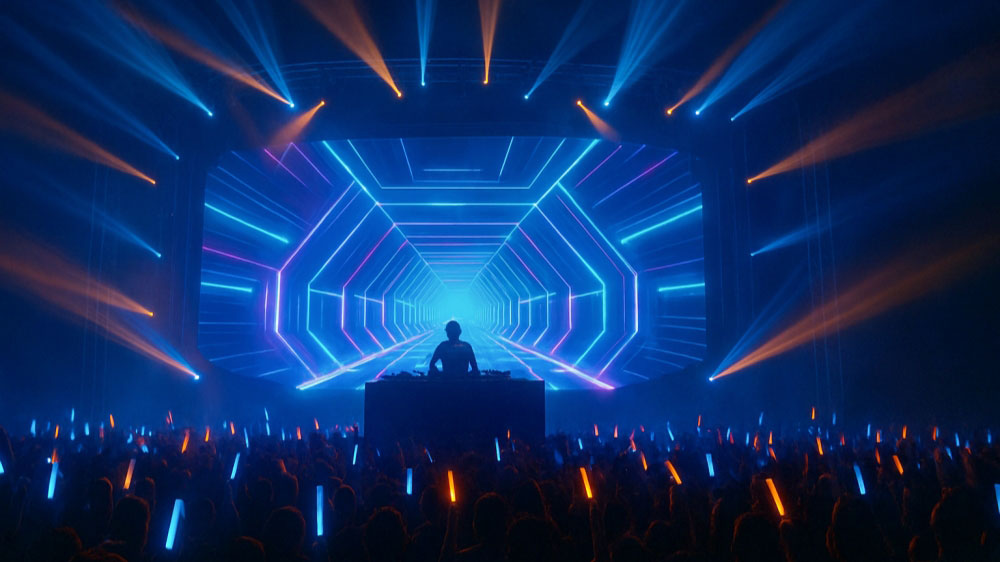

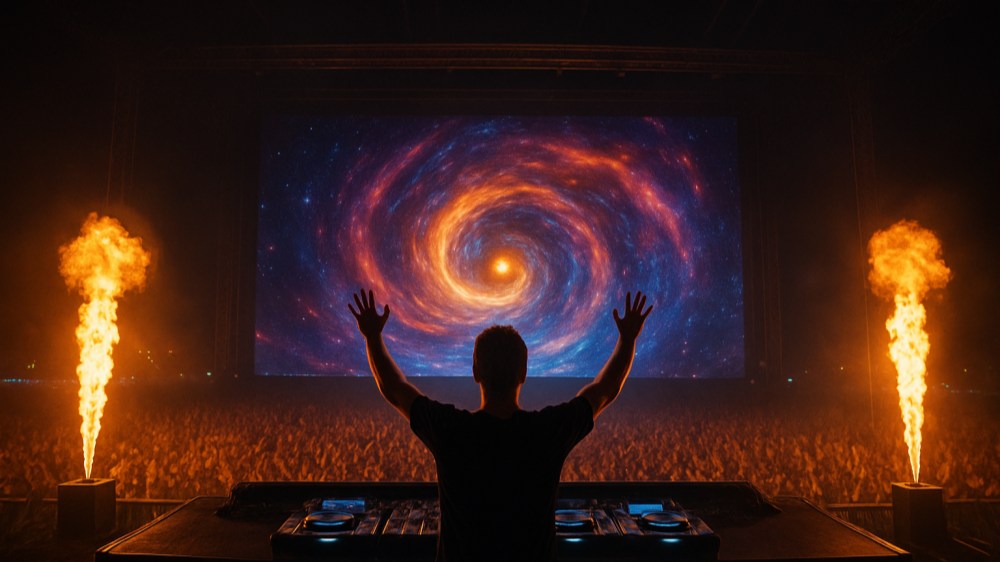

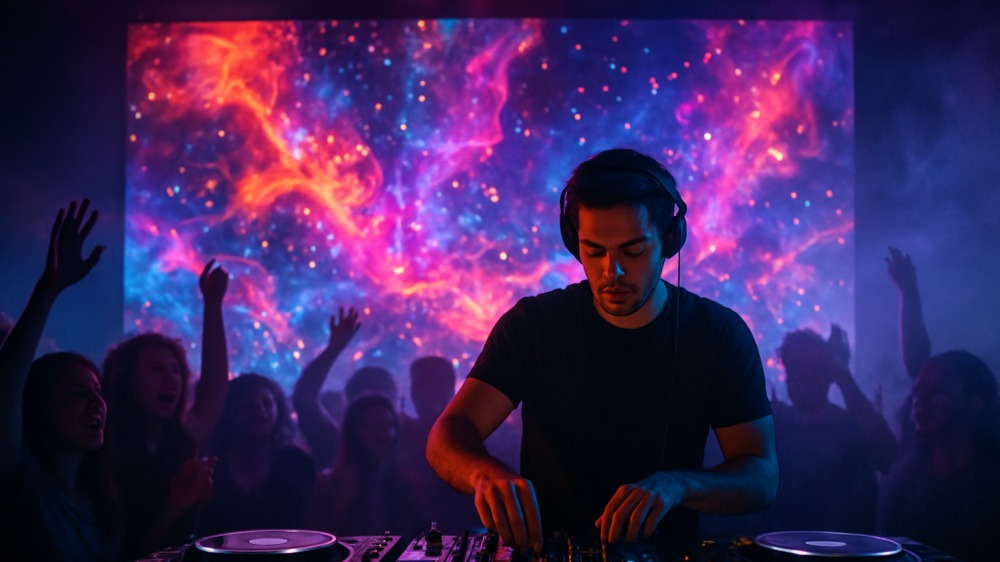

The big one behind the DJ. Also calLED a DJ LED video wall, it dominates the stage. Festivals, concerts, and large clubs love it. Full-motion videos, live camera feeds, or abstract VJ loops make the crowd feel like they’re inside the show. The key here is size and brightness. Outdoors or under strong lights? You need panels that punch through and don’t wash out.

3.3 Side LED Panels

Side panels are like the supporting cast. They don’t steal the show but make it complete. Placed on the edges, they help everyone see the visuals clearly—even the people off to the sides. They’re especially useful in clubs where the main screen can’t reach every corner. Sometimes DJs use them for extra effects, like mirrored visuals or lyric flashes.

3.4 Floor LED Screen

FL Series LED Floor Screen take things to the next level. Put one under the stage or dance floor, and you can sync visuals with lighting and bass. Shapes ripple, patterns move, and dancers literally step into the visuals. It’s high-energy and immersive—but make sure the panels can handle foot traffic and are slip-resistant.

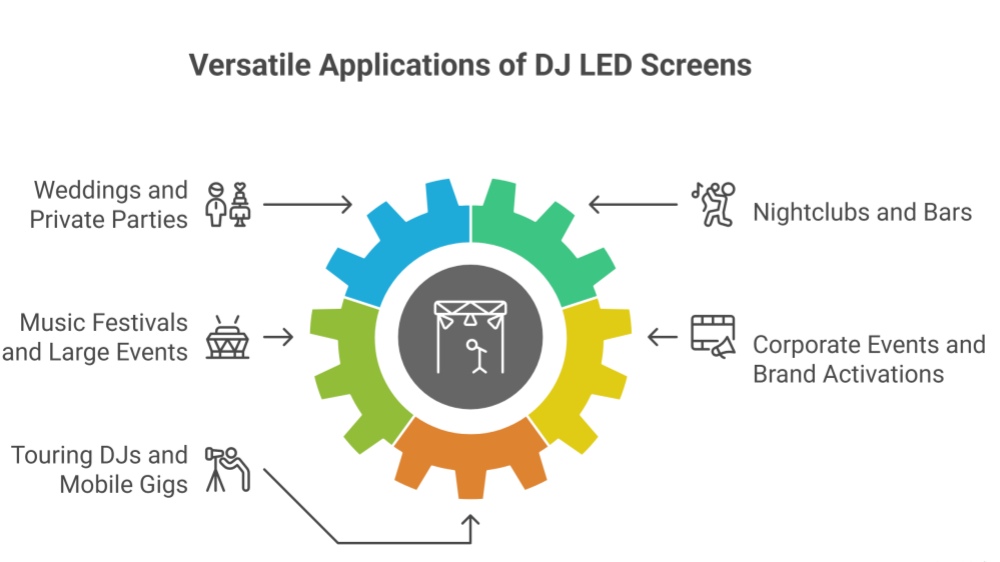

4. Applications in Real Events

DJ LED screens shape the mood and energy of any event. Here’s how they’re used:

Weddings and Private Parties: A DJ booth LED screen can show names, photos, or short clips. A small backdrop adds subtle visuals that match the music. It makes the event feel personal and polished.

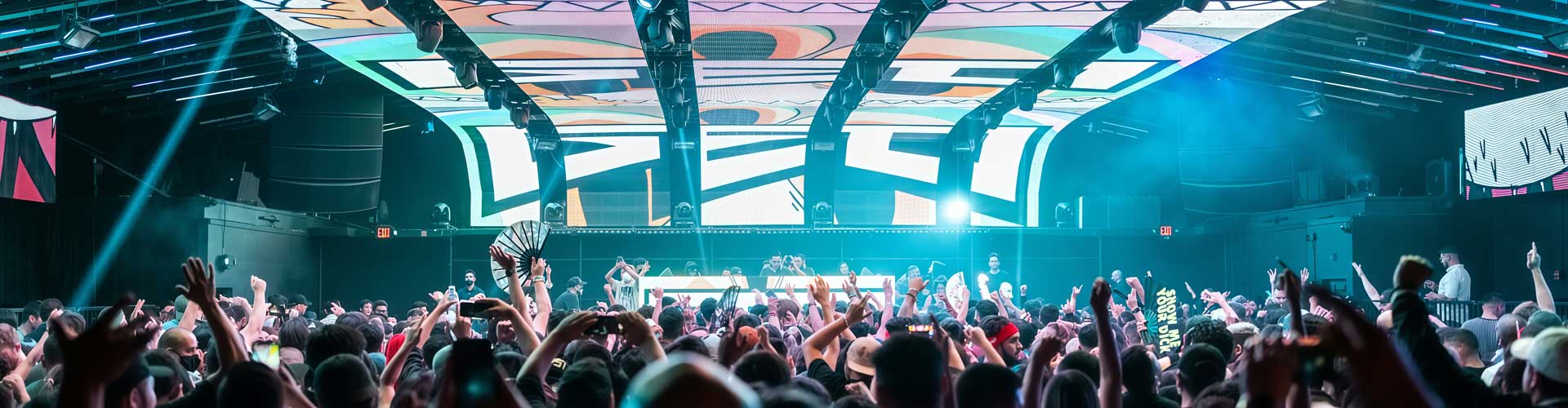

Nightclubs and Bars: A DJ LED video wall behind the DJ fills the stage with motion graphics synced to the beat. Side panels cover blind spots. Floor panels make the dance floor interactive, pulsing with the music.

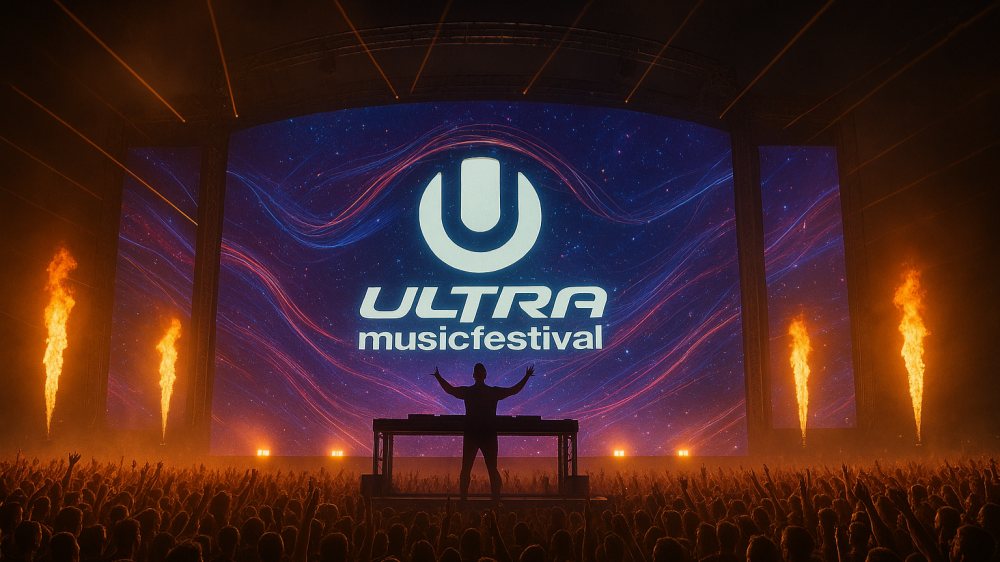

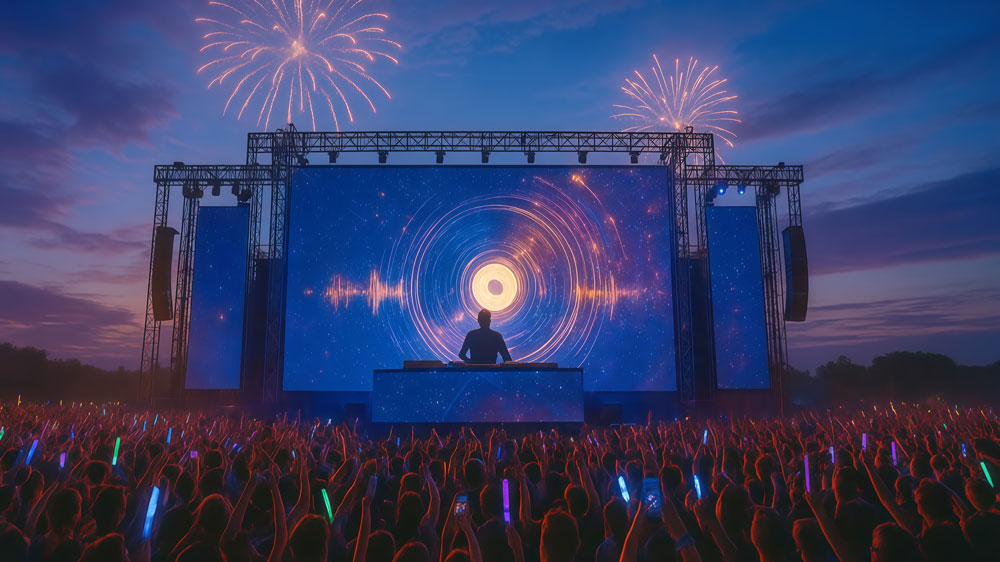

Music Festivals and Large Events: Backdrops dominate the stage. Booth screens keep the DJ connected to the audience. Floor and side panels add immersive layers for thousands of viewers. Brightness and pixel pitch are key for outdoor setups.

Corporate Events and Brand Activations: LED screens show logos, colors, or presentations. Booth and side panels display details up close. Backdrops provide scale. Clean visuals make the performance feel professional.

Touring DJs and Mobile Gigs: Rental LED screens are lightweight and modular. Booth screens and small backdrops create a full visual experience on the go. Quick setup saves time and effort.

5. How to Choose the Right DJ LED Screen?

When you’re planning to invest in a DJ LED wall or booth display, think of it in layers: what the audience sees, what you deal with during setup, and what it costs to keep running. Here are the key factors to weigh:

5.1 Viewing Distance & Pixel Pitch

Pixel pitch (P2.5, P3, P4, etc.) tells you how sharp the screen will look at a certain distance.

Close-range events (weddings, small clubs): P2.5 or P3 gives crisp visuals.
Mid-range venues (bars, medium halls): P3–P4 is usually enough.
Large outdoor stages: P4–P5 works fine, since nobody’s standing two feet away.

A quick rule: divide the pitch number by 10 to get the recommended minimum viewing distance in meters.

5.2 Brightness & Environment

Indoors, 1000–1500 nits is plenty.
Outdoors, aim for 2000–5000 nits, depending on sunlight.

A common mistake is buying a high-end indoor screen and then realizing it looks dim in daylight.

5.3 Screen Size & Ratio

It’s not just “bigger is better.” The screen should fit your stage.

For a DJ booth LED screen, even a small panel adds character.
For a backdrop wall, think about aspect ratio—16:9 for video content, or custom shapes if you want abstract visuals.

5.4 Portability & Setup Speed

If you tour, weight and assembly time matter more than you think. Look for:

Lightweight aluminum frames
Quick-lock systems
Flight cases for transport

These details can save you hours on the road.

5.5 Content Compatibility

Check what inputs the screen supports (HDMI, DVI, SDI). If you use VJ software like Resolume or MadMapper, make sure your controller matches. Some DJs also prefer screens with higher refresh rates (≥3840Hz) for smooth video playback on camera.

5.6 Durability & Protection

Clubs: indoor screens are fine.
Festivals: go for IP65 or higher to handle rain and dust.

Also consider LED Video Wall Rentals if the screen will be assembled and disassembled often.

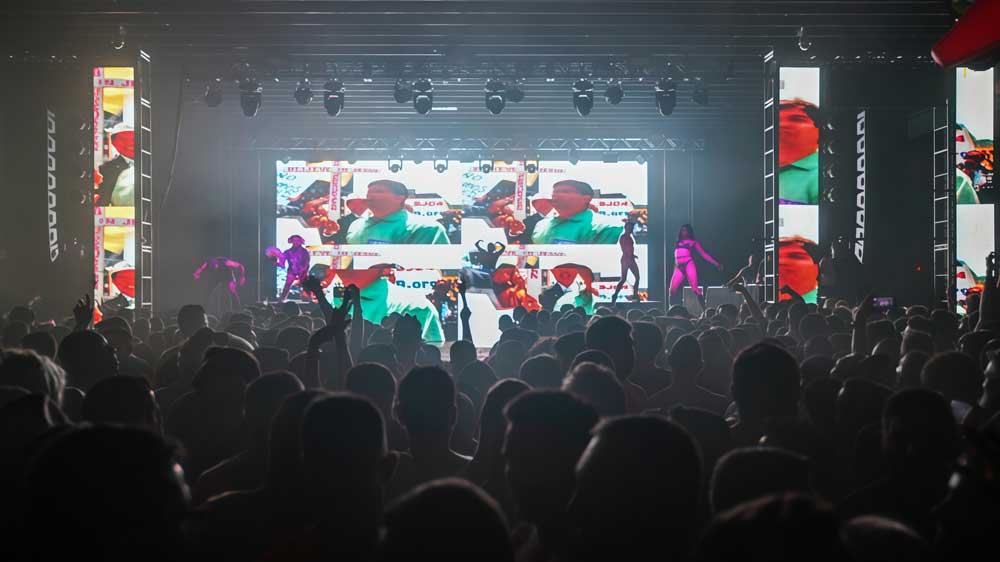

6. DJ LED Screen Price

The price of a DJ LED screen can vary a lot. The final number depends on a few key factors:

Pixel pitch: Smaller pitch (like P2.5) means sharper image, but also a higher cost compared to P4 or P5 panels.

Size and layout: A compact DJ booth LED screen could be just a few panels, while a wide LED video wall behind you multiplies the cost.

Indoor vs outdoor: Outdoor screens are built for brightness and weather protection, which adds to the price.

Portability: Touring-grade panels with quick-lock systems and flight cases usually come at a premium.

Accessories: Controllers, processors, cables, and installation services also add up.

👉 At LedInCloud-LED Screen Cloud Platform, we make it simple. Share your event type, venue size, and preferred screen style, and our team will recommend the right setup with a clear price breakdown.

Register LedInCloud today to get a custom DJ LED screen price quote.

7. Practical Setup & Maintenance Tips

A DJ LED wall isn’t plug-and-play like a TV. It’s built from panels, cables, and a controller, so knowing the basics of setup and care saves you time and stress on show day.

7.1 Setup Tips

Decide if you want a booth screen, a backdrop, or side walls. Sketching it out helps avoid surprises.

Short HDMI runs are fine for small setups. For larger walls, use signal extenders or SDI for stable transmission.

Power up the wall, run a test video, and check for dead pixels or sync issues. Fixing it during a live set is the worst timing.

Whether it’s truss-mounted or free-standing, make sure the frame is stable. A shaky screen is both unsafe and distracting.

7.2 Maintenance Tips

Panels shift in transit. Always do a pixel check after setup—most controllers have a built-in test pattern.

Build-up lowers brightness and creates hot spots on camera. Clubs with smoke machines should schedule weekly cleaning.

LED walls draw heavy current. Don’t daisy-chain too many panels on one line; uneven power is the top cause of sudden blackouts.

One spare module, one spare power supply, and a handful of data cables can save an entire gig.

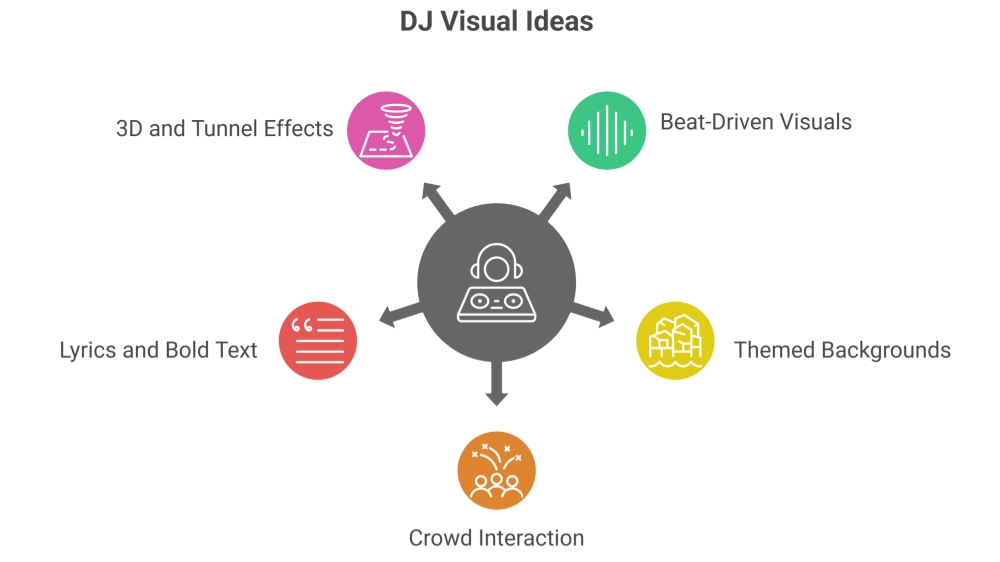

8. Creative Content Ideas for DJs

A DJ show isn’t just about sound. The right visuals on your LED screen can turn a good set into a full-blown experience. Here are a few ideas you can actually play with:

Beat-driven visuals

Use content that reacts to the track. Waveforms, pulsing shapes, or geometric lines that “dance” with every bass drop always work well. It keeps the crowd locked in because they can see the music as much as they hear it.

Themed backgrounds

Change the mood with visuals that match your set. Neon cityscapes for techno, tropical waves for house, retro arcade graphics for 80s mixes—your screen becomes part of the story you’re telling.

Crowd interaction

Throw in real-time elements like polls, live shoutouts, or even a “song request wall.” Fans love seeing their names or choices flash across the display.

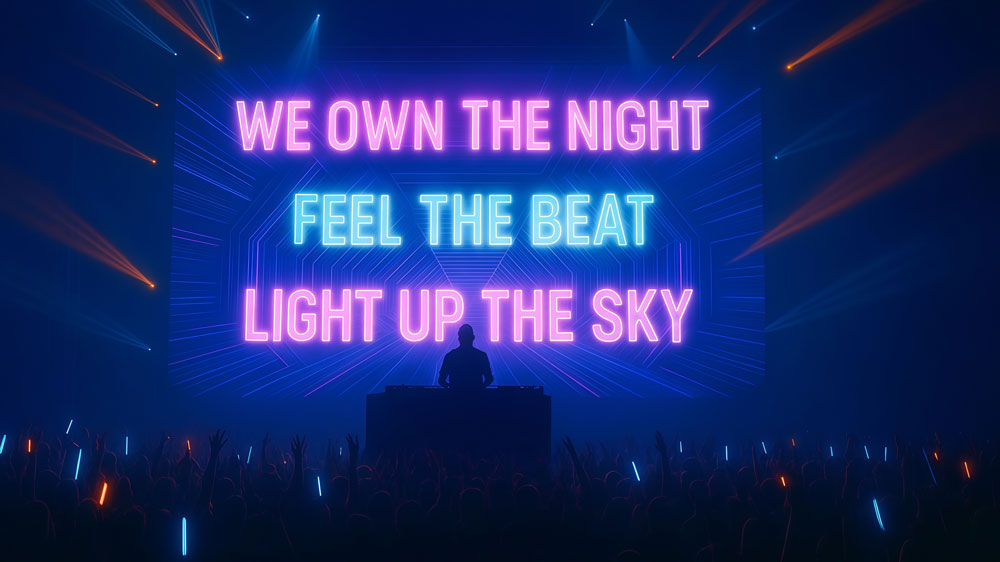

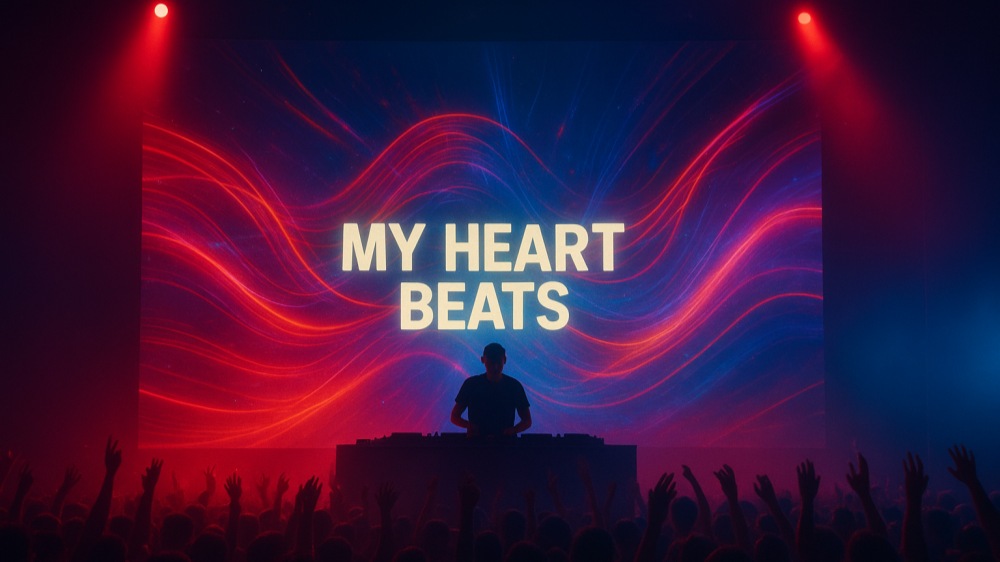

Lyrics and bold text

During big vocal hooks or hype moments, drop a few words on screen—short, punchy lines that the audience can shout back. Works wonders for crowd energy.

3D and tunnel effects

Visual illusions like neon tunnels, vortex spirals, or animated grids create that “falling into the music” feeling. These are crowd favorites for late-night sets.

The trick is variety—switching content throughout the night so the visuals evolve with your set, instead of looping the same clip for hours.

9. FAQs

Q1. What size LED screen is best for a DJ setup?

It depends on the venue. For small clubs, a 2–3m wide screen behind the booth is usually enough. For large festivals, screens can stretch across the whole stage, sometimes 10m or more.

Q2. Do I need special software to run visuals?

Most DJ LED screens connect to a video processor or controller. From there, you can run content through common software or even link visuals with your DJ software if supported. Our NovaStar Software download page provides the essential softwares free for you.

Q3. Is it better to buy or rent a DJ LED screen?

For regular touring DJs or venues, buying can pay off. But for one-off events, rentals are usually more cost-effective.

Q4. How do I keep the screen running smoothly during a show?

Always test content and connections before the set. Have backup media ready. And if possible, work with a technician who knows LED setups—especially for big shows.

10. Conclusion

A DJ LED screen isn’t just decoration—it’s part of your performance. The right screen makes your visuals pop, matches your music, and keeps the crowd hooked from the first beat to the last.
