Stage LED Screen
Transform your stage into a visual masterpiece with our cutting-edge Stage LED Screens. Designed for concerts, theater productions, corporate events, and live performances, our LED screens deliver vibrant visuals, seamless integration, and unparalleled reliability.
✔ Perfect for concerts, theaters, and live events
✔ Creates immersive visual experiences
✔ Low maintenance with long lifespan
✔ Seamless integration with existing production systems
Product Recommendations for Your Stage Project
At LedInCloud, we offer a wide range of stage LED screen solutions designed to meet the diverse needs of modern events. Whether you’re planning a concert, theater performance, or corporate presentation, our LED displays are built to deliver professional-grade visuals with speed, stability, and style.
LED Display Price Calculator
Just fill the sizes, and get your LED screen budget right now !

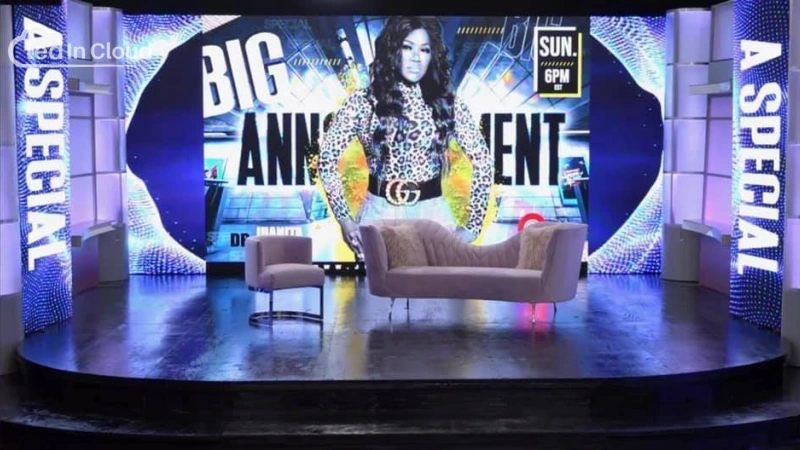

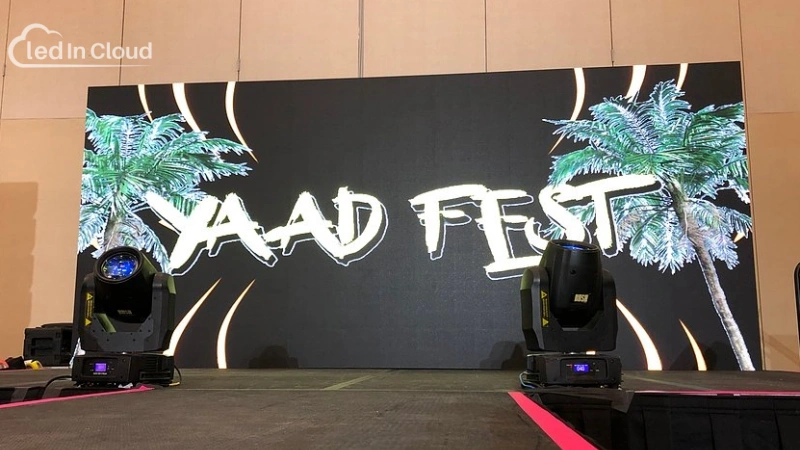

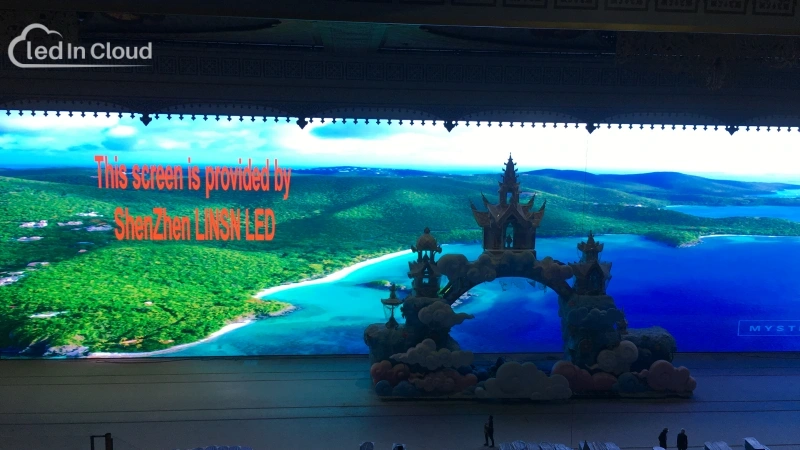

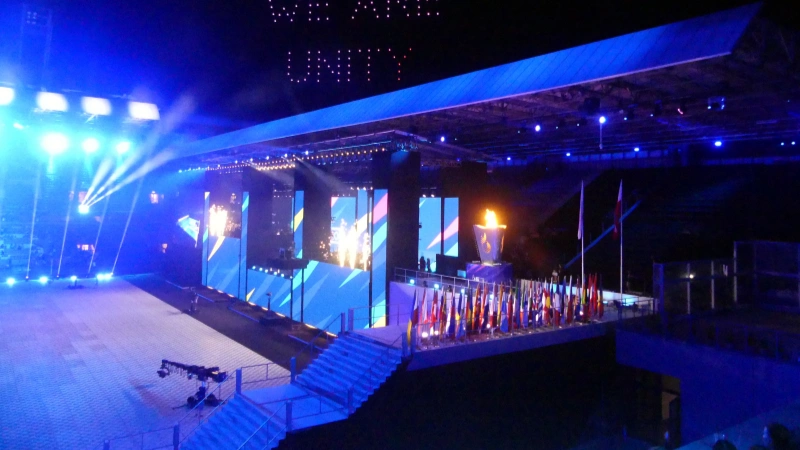

Our Customer Success Stories
Experience the performance and reliability that make our Stage LED Screens the preferred choice for concerts, live events, and exhibitions.
Engineered for Exceptional Stage Performance
Experience the performance and reliability that make our Stage LED Screens the preferred choice for concerts, live events, and exhibitions.
Impressive Visual Experience
A stage LED screen isn’t just a backdrop—it’s part of the performance. LedInCloud’s LED displays bring vibrant colors, sharp contrast, and high refresh rates that help every visual come through clearly, even in high-speed motion or bright stage lighting. This creates a dynamic, engaging viewing experience for both on-site and online audiences.
Our LED screens offer refresh rates up to 3840Hz and 14-bit grayscale processing, helping event visuals remain smooth and detailed across large formats.
Fast Assembly
Live events often come with tight schedules. Our LED rental series are engineered for quick assembly, featuring lightweight frames, ergonomic handles, and tool-free locking systems. The result: quicker builds, faster changeovers, and less pressure on the crew.

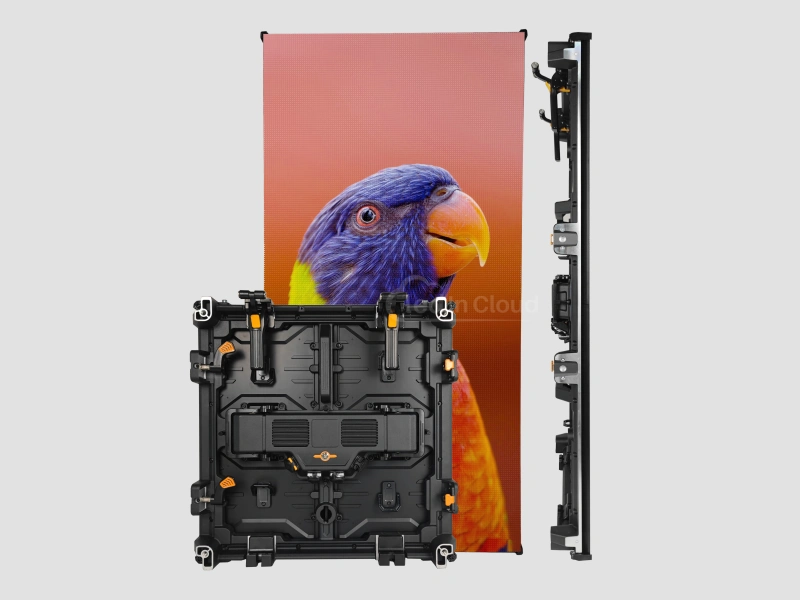

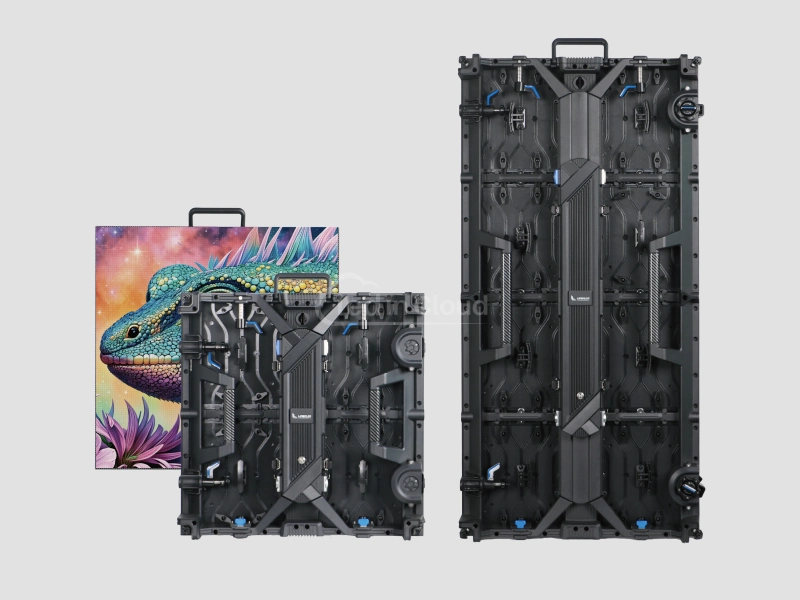

With LedInCloud: The MY, MS, and MX series are equipped with fast locks, soft connections, and dual-access maintenance options that simplify every part of the workflow.
Adaptable Designs for Any Stage Layout
Every stage is different. Whether you need a wide panoramic screen, a tall vertical tower, or a custom-curved LED wall, our rental cabinets are designed for flexibility. The modular structure makes it easier to match your venue size, artistic direction, and technical needs.

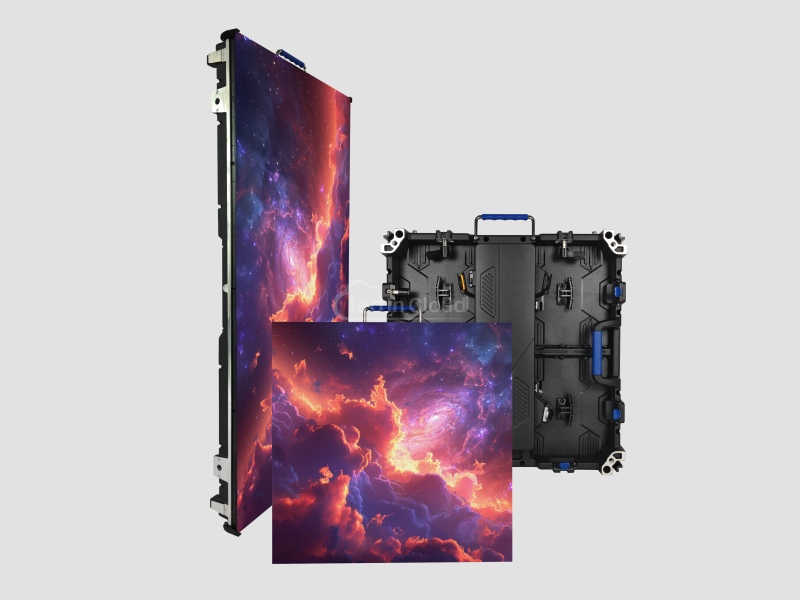

We offer both 500x500mm and 500x1000mm cabinet options, support for right angles and curves, and custom build consulting to suit creative stage setups.
Why Choose Us?
With over 15 years of experience in LED display manufacturing, we deliver high-performance stage LED screens trusted by global clients across entertainment, events, and touring productions.
Certified Quality
ISO9001, CE, RoHS certified for international standards
Fast Production
Over 5,000 m² monthly output for fast delivery
Global Reach
More than 2,000 successful installations worldwide
Reliable Support
24/7 technical assistance and comprehensive warranty
Send Us Message
If you have any LED display projects or technical problems regarding our LED display products. Please send us a message, we will reply to you in 24 hours.
ATTENTION: lf you bought LED Display & LED Module from other suppliers, Please get help from them directly.
Stage LED Screen for Concerts, Weddings & Events
A stage LED screen is a modular video wall built from rental LED cabinets for concerts, weddings, theaters and live events. Indoor stages typically use P2.6–P3.9 with 800–1,500 nits; outdoor concerts need P3.9–P4.8, 4,500+ nits and IP65. Pick it by viewing distance, brightness and protection rating — not by looks.
1. What Is a Stage LED Screen?
A stage LED screen is a large video wall assembled from lockable LED cabinets, placed behind or beside performers to show video, graphics, live camera feeds and branding during live events. Unlike a projector, it stays bright under stage lighting, and unlike a fixed wall, you can resize it for every show by adding or removing cabinets.
The cabinet is the building block. Each 500×500 mm unit is self-contained — frame, power, control and LED modules in one tile that locks to the next. That modularity is the whole point: line up ten cabinets and you have a 5-meter-wide screen; stack rows on top and it grows into a full backdrop. The same cabinet family covers a 3-meter wedding wall and a 10-meter concert main screen, which is why rental fleets are built from cabinets instead of fixed-size screens.
2. Where Are Stage LED Screens Used?
Different events stress different specs. A festival wall fights sunlight; a wedding backdrop never leaves the shade. Here is how the main applications differ.

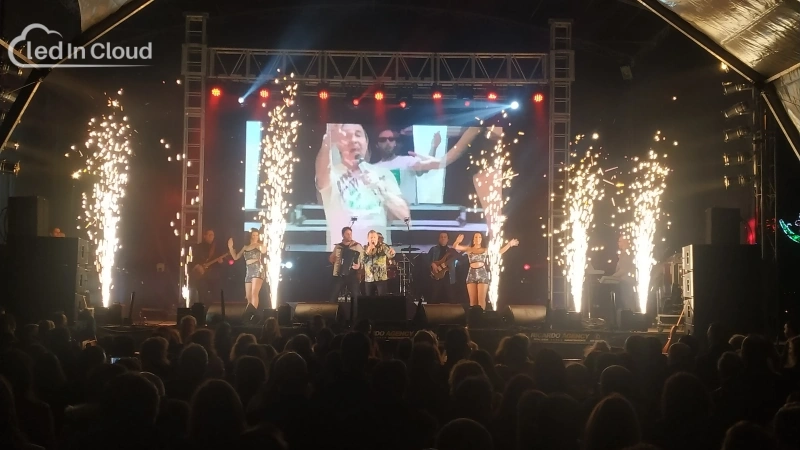

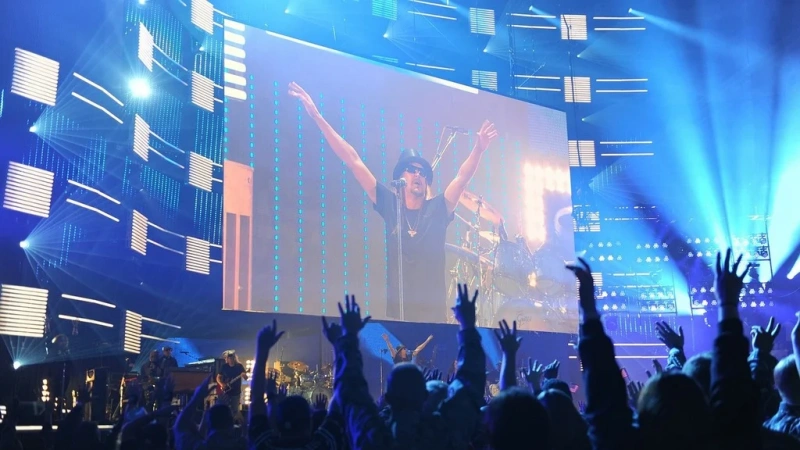

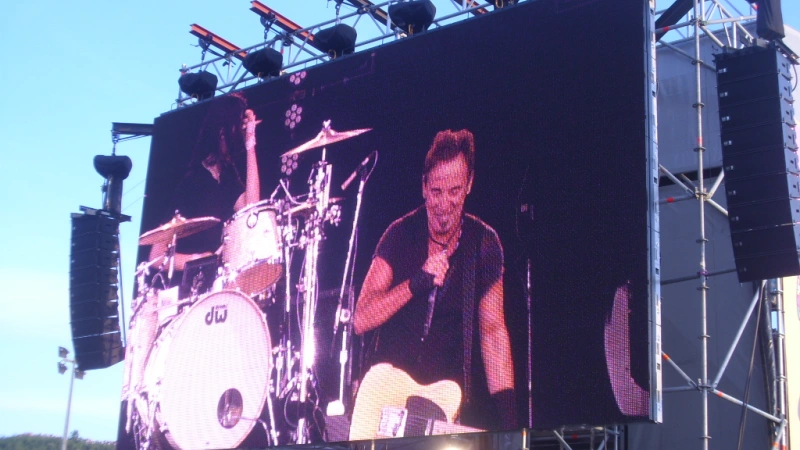

2.1 Concerts & Live Shows

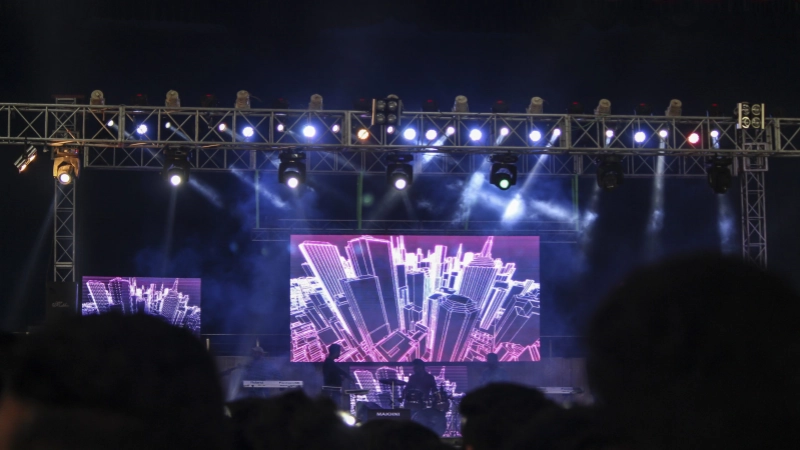

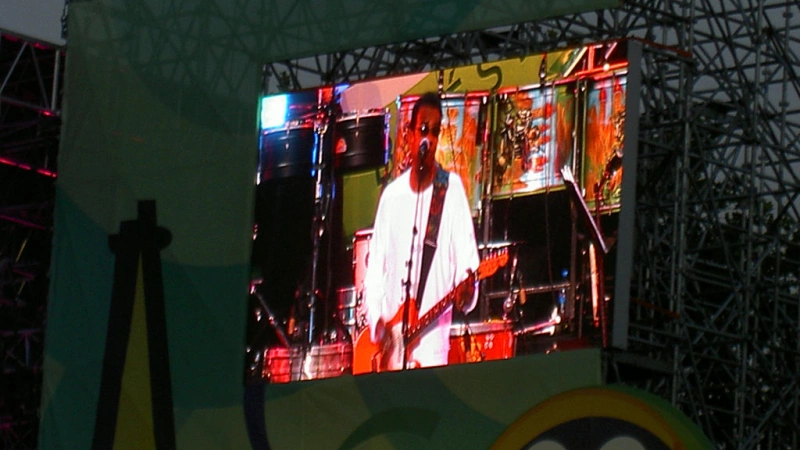

Concert stages need three things from an LED screen: high brightness to beat stage lighting and daylight, fast refresh rates so broadcast cameras see no flicker, and light cabinets that a crew can hang and strike between cities. For most concert stages, that means outdoor-rated cabinets around P3.91–P4.81, 4,500 nits or brighter, and a refresh rate of 3,840 Hz or higher.

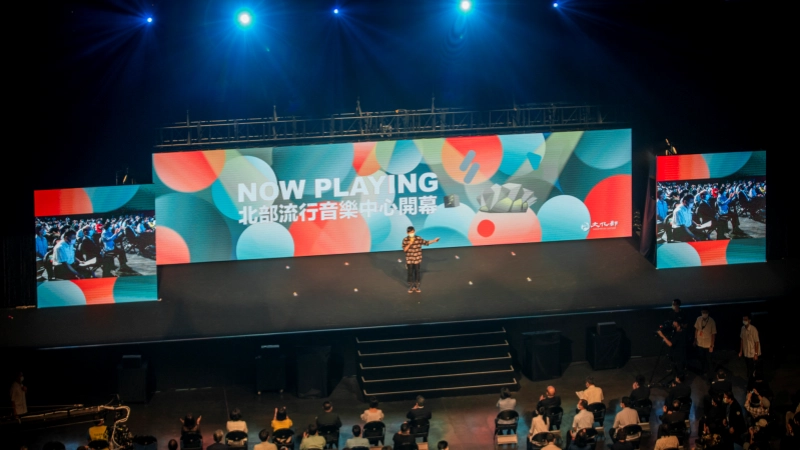

Main screens sit center stage and carry full-motion video; side panels mirror the feed for crowds at wide angles. Weight is the quiet constraint — LedInCloud MY 500×500 cabinet weighs 6 kg, light enough to fly large walls without upgrading the rig. DJ booth and festival setups often mix main walls with floor panels for the full look.

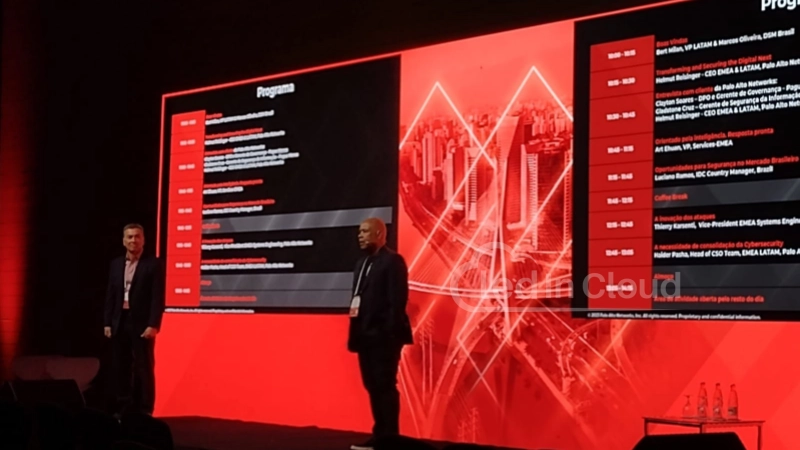

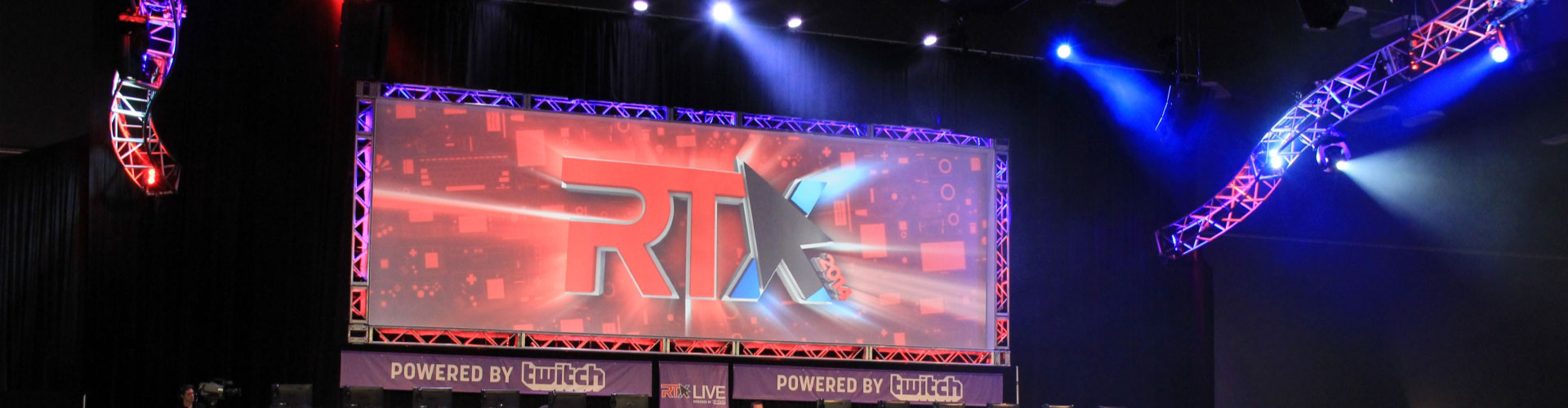

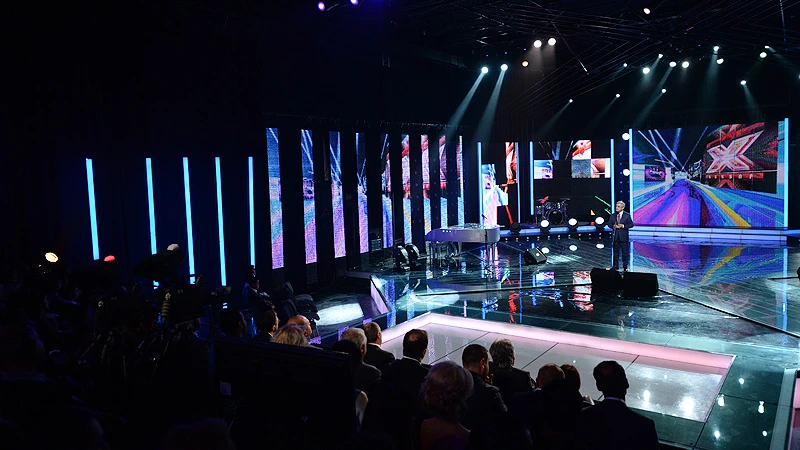

2.2 LED Stage Backdrop Screens

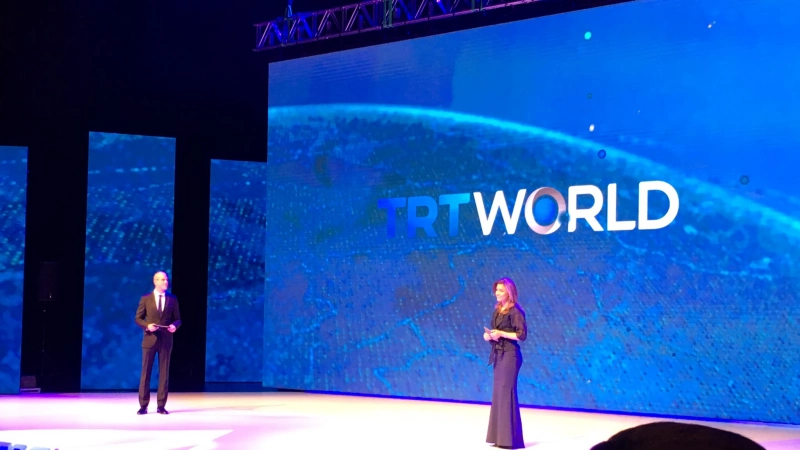

A stage backdrop LED screen is the wall behind the performers — the single most common type of stage background LED display.
Pick its pixel pitch by your closest seated viewer: P2.976 stays sharp from about 3 meters, P3.91 from about 4 meters. Match the wall width to your stage width, and choose front-service cabinets if the wall sits flush against a backdrop frame with no rear access.
Backdrops get built and struck at every event, so magnetic front-service modules help — on our MS series, a technician pulls a module from the front in about 5 seconds.

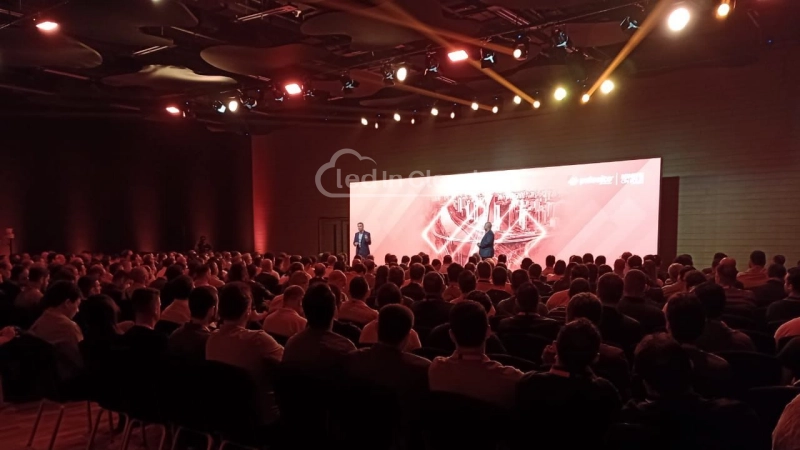

2.3 Weddings & Private Events
Wedding stage LED screens trade raw brightness for looks and ease. Guests sit close, the room is dim, and the content is slideshows, live vows and soft animation.
A 6–10 square meter wall of P2.976 or P3.91 panels covers most wedding stages without overpowering the décor.
Two details worth checking: a matte or low-glare module finish if the screen sits under spotlights, and a processor that accepts a laptop input without re-patching — slideshows usually change between ceremony and party. Typical layouts are on our wedding LED screen page.
2.4 Corporate Events & Theaters
Corporate stages lean on text and data, so fine pitches pay off — P1.9 to P2.6 indoors keeps small text sharp from 2–3 meters.
Theaters add scene changes: a backdrop that switches from a city skyline to a forest in one second replaces truckloads of set pieces, which is why more productions rent walls per season instead of building scenery. For multi-purpose venues, the event LED screen covers the middle ground.

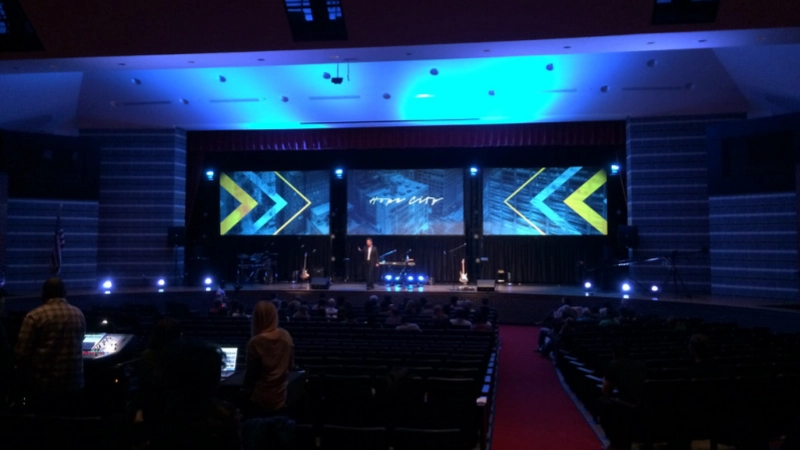

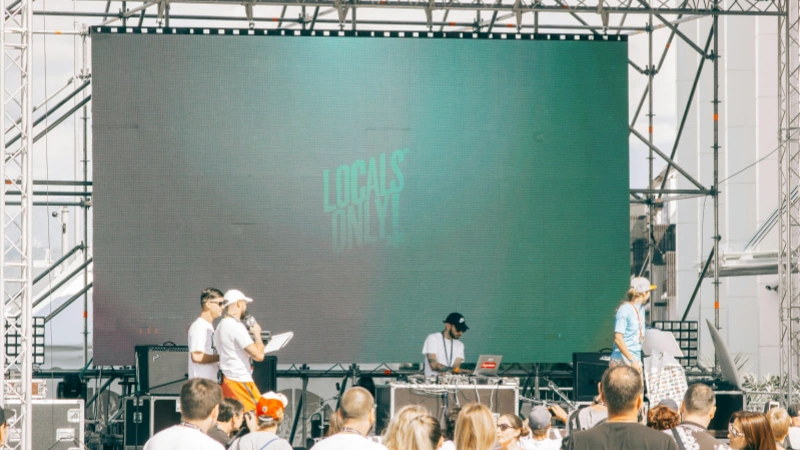

3. Stage LED Screen Design & Layout
Three layout decisions cover most stages:
✔ Position — main wall behind the performers, side panels mirroring it for wide-angle crowds, floor panels recessed into the deck. Floors look striking but need load-rated reinforced cabinets and extra rig time, so they only pay off on high-production shows.
✔ Height — bottom edge of the main wall at roughly 1.5–3 m off the deck: above heads and set pieces, low enough that the visuals stay tied to the action.
✔ Shape — flat walls build fastest. MS cabinets curve −10° to +15° in 2.5° steps, MX goes ±10°, MY builds 90° corners, and arc cabinets (MYS 500) take 45° each — eight close a full circle with a 0.64 m radius.
One rule ties it together: set position and height from the sightlines of the worst seat, not the stage render. If it works from the far corners, every other seat follows.
4. How to Choose the Right Stage LED Screen
Choose a stage LED screen by four parameters in this order: pixel pitch (set by viewing distance), brightness (set by ambient light), protection rating (set by venue) and refresh rate (set by cameras). Get these four right and the rest of the spec sheet follows.
4.1 Pixel Pitch & Viewing Distance
Pixel pitch is the gap between LEDs in millimeters, and it sets how close a viewer can stand before the image breaks into dots.
The rule of thumb: the pitch number equals the minimum sharp viewing distance in meters. P2.976 reads sharp from about 3 meters, P4.81 from about 5.
Indoor stages and camera-heavy events use P1.9–P3.9; large outdoor stages sit fine at P3.91–P4.81 where the front row is far away anyway.
4.2 Brightness & Contrast
Indoor stages under controlled lighting run well at 600–800 nits — brighter washes out faces on camera.
Outdoor stages need 4,500–5,000 nits to hold contrast against daylight and stage wash.
Ask for the nits figure of the exact configuration; a series can cover both indoor and outdoor ratings with different modules.
4.3 Panel Size & Rigging
Standard LED video wall rentals cabinets come in 500×500 mm and 500×1000 mm.
Smaller cabinets give finer control on curved walls and lighter loads on truss; larger cabinets build faster on big flat walls and cut lock count.
Match the cabinet to how it will stand or hang — ground support, hanging truss and goal-post systems each load the frame differently — and confirm curve angles and right-angle support before ordering if your design needs them.
4.4 Refresh Rate & Power
Refresh rate decides whether cameras see a clean image or rolling scan lines. Anything above 3,840 Hz is safe for broadcast and livestream work; Our MS and MY series reach 7,680 Hz for camera-critical shows.
On power, check signal inputs (HDMI, DVI, SDI as a baseline) and the draw per square meter — Our MS series indoor configurations average around 200–225 W/m² with peaks near 400–640 W/m² depending on pitch, which your electrician will want for the breaker schedule.
4.5 Indoor vs. Outdoor: The Short Table
| Factor | Indoor stage | Outdoor stage |
| Pixel pitch | P1.9–P3.9 | P3.91–P4.81 |
| Brightness | 600–800 nits | 4,500–5,000 nits |
| Protection | IP50 | IP65 (front & rear for MX) |
| Maintenance | Front & rear access | Rear access (outdoor config) |
| Typical events | Theater, wedding, conference | Concert, festival, touring |
5. What Size Stage LED Screen Do You Need?
Size your stage LED screen from two numbers: stage width and front-row distance. A common starting point keeps screen height at roughly one-third of stage width — a 12-meter stage pairs well with a 4-meter-tall main wall. Then check pitch against the front row: at P3.91, viewers closer than 4 meters will see pixel structure, so either pull the wall back, raise it, or step down to a finer pitch.
Quick reference for common builds:
| Build type | Screen size | Pixel pitch | Environment |
| Wedding backdrop | 6×3 m to 8×4 m | P2.976–P3.91 | Indoor |
| Corporate stage main wall | 6×3.5 m to 10×5 m | P1.9–P2.9 | Indoor, close seating |
| Club / theater backdrop | 5×3 m to 10×5 m | P2.6–P3.91 | Indoor |
| Concert main wall (a large LED screen for stage use starts here) | 10×6 m and up | P3.91–P4.81 | Outdoor rated |
| Festival side panels | 4×6 m to 6×10 m, vertical | P3.91–P4.81 | Outdoor rated |
The math is simple: a 500×500 mm cabinet is 0.25 m², so a 10×5 m wall is 200 cabinets. Cabinet count drives roughly 60% of the budget — the next section covers the rest.
6. How Much Does a Stage LED Screen Cost?
A stage LED screen’s price is set by four factors: pixel pitch, total screen area, cabinet series and accessories. Finer pitches cost more per square meter because each cabinet packs far more LEDs; larger walls cost more in total but less per square meter; outdoor-rated configurations carry a premium over indoor ones.
What that means in practice: a 10×5 m wall is 200 cabinets, so even a small per-cabinet price difference moves the total by thousands. Fixed extras — processor, sender, rigging bars, flight cases, spare modules — add the rest. Fill your screen sizes into the LedInCloud – LED Screen Cloud Platform and you will see those numbers instead of guessing at them.
6.1 Rent or Buy a Stage LED Screen?
Rent if your events are occasional and varied; buy if you run shows most weeks.
Renting shifts storage, maintenance and transport to the rental house and lets you scale each show.
Buying pays back once your annual usage is steady and frequent — the break-even point depends on local rental rates.
| Factor | Rent | Buy |
| Upfront cost | Per event, low | Full system, high |
| Best for | One-offs, weddings, single tours | Rental companies, frequent producers |
| Flexibility | Change size/setup each show | Fixed fleet, but always available |
| Maintenance & storage | Included in rental | Your warehouse and crew |
| Long-term cost | Adds up with frequency | Lowest per event at high usage |
7. Why LedInCloud?
LedInCloud is the factory-direct platform of a stage LED screen manufacturer. Here is what that means for your project:
LedInCloud Projects
✔ Proven factory: over 16 years in LED display production, with ISO9001-certified lines and CE, RoHS and FCC certifications
✔ Real capacity: more than 5,000 square meters of monthly output and over 2,000 installations worldwide — from theater backdrops in Thailand to touring walls in the USA and Portugal
✔ Transparent pricing: fill in your screen sizes on the LedInCloud cloud platform, compare MY, MX and MS configurations, and see budget numbers before you talk to sales
✔ Engineering support: the team reviews your stage drawings, confirms the cabinet mix, and quotes the full package — cabinets, processing, rigging and spares — with 24/7 technical support after delivery
✔ Fleet-friendly service: spare parts come from the same production line as your walls; our MS series ships with a 3-year warranty and 5% spare parts support, and the shared magnetic module design means a technician trained on one wall can service the whole fleet
✔ Wholesale available: the same lines supply distributors — ask about volume pricing for resale
Request your stage LED screen quote — include stage size, indoor or outdoor, and event dates, and you will have numbers back within 24 hours.
8. FAQ
Q1. How much does a stage LED screen cost?
Budget per square meter (pitch drives the rate), multiply by your cabinet count, and hold back 5–10% for processors, rigging and spares.
Q2. What pixel pitch is best for a stage LED screen?
The pitch number roughly equals the minimum sharp viewing distance in meters: P2.976 from ~3 m, P3.91 from ~4 m, P4.81 from ~5 m. Indoor stages use P1.9–P3.9; outdoor concert stages use P3.91–P4.81.
Q3. Should I rent or buy a stage LED screen?
Rent for occasional events; buy when your yearly rental spend starts to approach the purchase price. Compare the last 12 months of rental invoices against a quote.
Q4. What's the ideal LED screen size for a concert stage?
Main walls commonly run 10 m wide or more, with height around one-third of the stage width. Add side panels for wide venues — the sightlines decide it.
Q5. What should I look for in a stage LED screen factory?
Certifications (ISO9001, CE, RoHS), verifiable production capacity, and after-sales terms — warranty length and same-line spare parts.
9. Conclusion
Here is the whole guide of stage LED screen in four checks: pitch by viewing distance, brightness by venue, protection by environment, and an honest rent-or-buy answer based on how often you run shows. Get those four right and the rest of the spec sheet is detail work.
When you are ready, compare the MY, MX and MS configurations up top, size your wall from section 5, and bring your stage drawings to LedInCloud — we will give you budget numbers in minutes, and the engineering team confirms the details.
More Solutions
Event LED Screen
Delivering sharp visuals, smooth playback, and quick installation, making every gathering more engaging and memorable.
3D LED Screen
Eye-catching naked-eye 3D visuals that attract crowds and boost brand exposure in outdoor spaces.

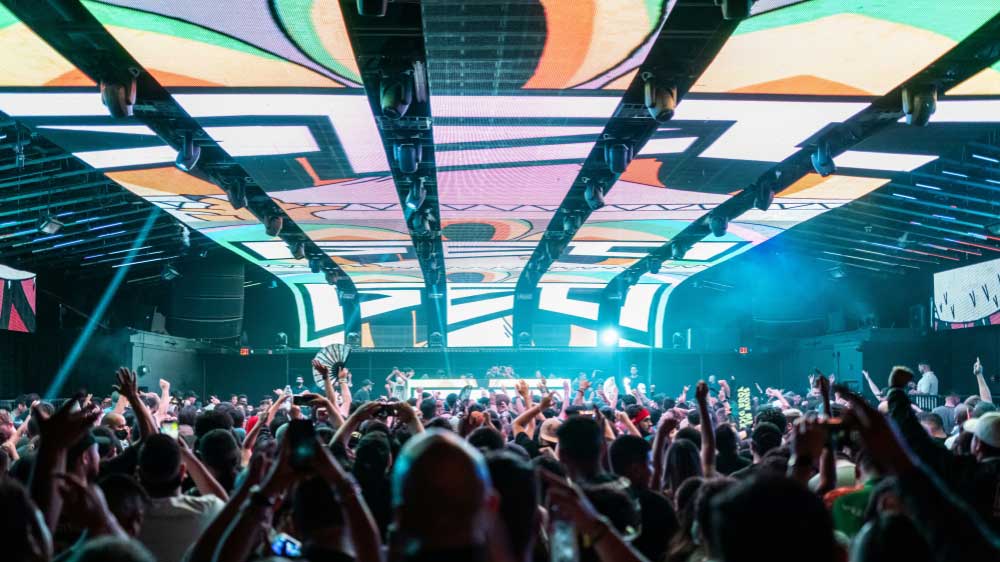

DJ LED Screen
