The Huidu HD-U6A is one of the simplest and most practical LED control cards for single-color displays. It’s made for people who don’t want to deal with complex setup, networks, or software that takes hours to figure out.
In this article, we’ll look at what makes the u6a led controller a solid choice for straightforward LED projects, and how it fits into real-world use. If you have any questions during reading, please contact us. We are an LED Screen Cloud Platform.
1. Huidu HD-U6A Introduction
The Huidu HD-U6A is a compact LED control card designed for single-color displays. It’s a good fit for small digital signs in stores, schools, and other public spaces—anywhere you need simple text, time, or countdowns.

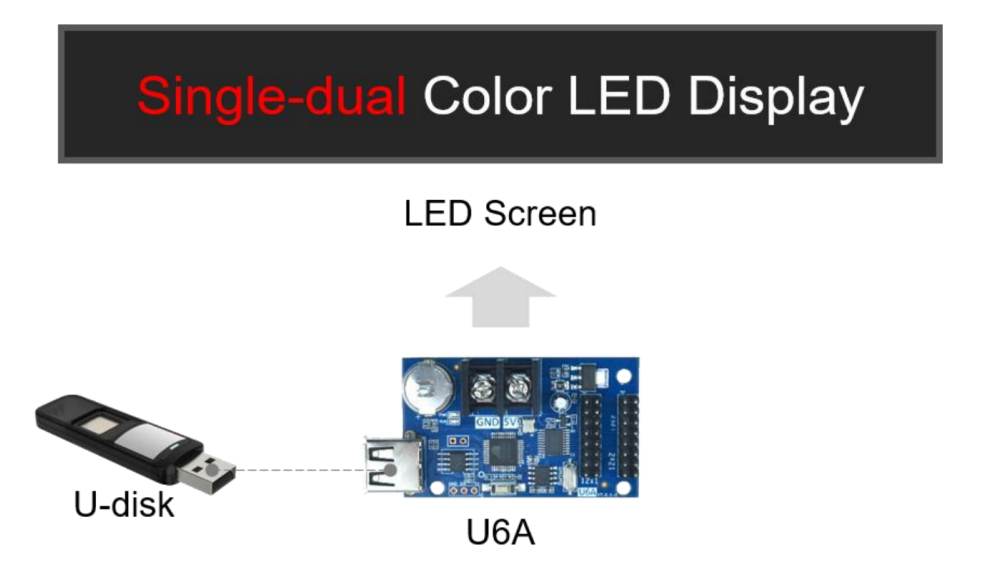

Unlike more advanced cards with network or wireless features, the HD-U6A controller is fully offline. You prepare your content using software, save it to a USB flash drive, and plug it into the controller. That’s it. No IP setup. No cables. No app.
This model supports a display size of up to 320×32 pixels and offers up to four content zones, each with its own layout and effects. For a card this small, that’s surprisingly flexible.
In the Huidu product family, the u6a led controller sits at the entry level. It doesn’t try to do too much—but what it does, it handles well. It’s stable, low-maintenance, and easy to set up even if you’ve never used an LED controller before.

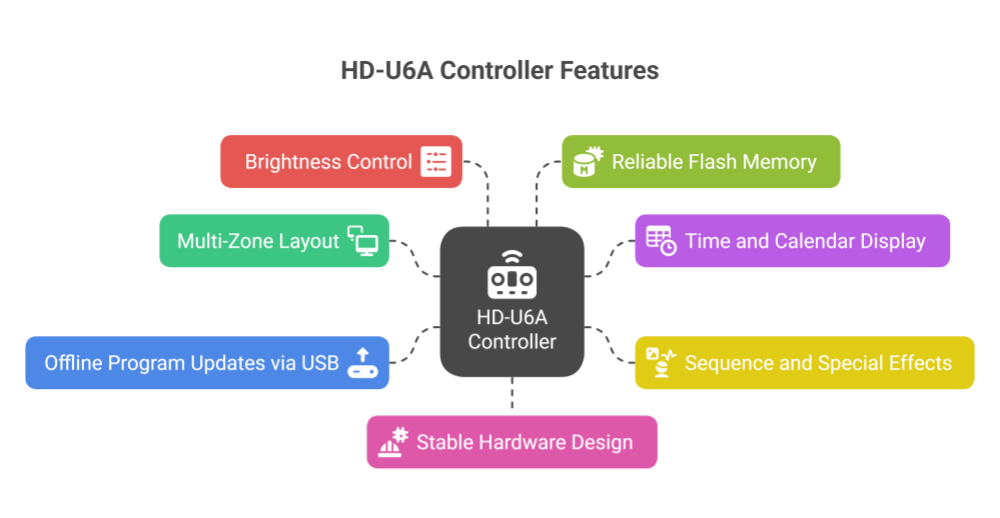

2. Key Features and Functions
The HD-U6A controller may be compact, but it offers more than you’d expect from a basic LED control card. Its main job is to handle single-color LED displays, and it does that with a mix of reliability, flexibility, and ease of use.
Let’s break down what it offers.
2.1 Multi-Zone Layout
This u6a led controller supports up to four independent display zones on a single screen. You can show text in one area, a digital clock in another, and maybe a countdown or date in the rest. Each zone can have its own size, position, and animation. This makes it more than just a simple scroller.
2.2 Time and Calendar Display
The HD-U6A can show digital and dial-style clocks, plus lunar dates, countdowns, and timers. This is useful for public notices, school events, shop hours, or shift tracking in factories. All time formats are customizable—font size, color, position—so your display stays readable in any layout.
2.3 Sequence and Special Effects
Even with limited space, the controller allows some simple visual touches. You can apply scrolling effects, flashing, and transitions between messages. While it’s not meant for video or images, the movement options help catch attention without distracting from the message.
2.4 Offline Program Updates via USB
This is one of the strongest points. With the HD-U6A controller, you don’t need internet, Wi-Fi, or software running in the background. Just use the Huidu software (Huidu HD2020 or others), save your program to a U-disk, and plug it in. The card reads the file and updates automatically. It’s fast and doesn’t require technical skill.
This offline approach also avoids connection failures. That’s why this card is often used in remote locations, old buildings, or busy retail shops where stable network access isn’t always available.
2.5 Brightness Control
The controller includes both manual and automatic brightness settings. If your display faces a window or changes lighting during the day, this feature helps keep content visible without becoming too bright at night.
2.6 Reliable Flash Memory
It supports up to 1000 different programs, all stored inside its built-in 2MB flash memory. For single-color text, that’s more than enough. You can preload different schedules for weekdays, holidays, or special events—then swap them with just a USB drive.
2.7 Stable Hardware Design
The card runs on 5V DC power and uses minimal energy (around 3W). It can handle harsh temperatures, from –40°C to 80°C.
The HDU6A software interface is clean and direct. You don’t need a manual to figure out how to create a message or set a timer. Even non-technical users can get comfortable with it in minutes.
3. Specs That Matter in Real Life
Spec | Value / Range | What It Means for You |
Control Size | Max 320×32 pixels | Ideal for one-line or two-line single-color displays. Fits common LED panels used in signs. |
Flash Memory | 2MB | Can store up to 1000 message programs. Good for daily content updates. |
Display Areas | 4 zones | Show text, time, date, countdowns—each in a different layout. |
Communication Method | USB U-disk only | No Wi-Fi or cable needed. Just plug in and update. Simple and stable. |
Program Quantity | Up to 1000 | You can load different messages for different days or events. |
Power Consumption | About 3W | Very low energy use. Can run 24/7 without noticeable cost. |
Working Voltage | DC 4.2V–5.5V | Compatible with standard 5V power supplies. Easy to integrate. |
Operating Temperature | –40°C to 80°C | Suitable for indoor and outdoor use, even in harsh weather. |
Storage Temperature | –40°C to 105°C | No risk during transport or storage in hot or cold areas. |
Humidity Range | 0%–95% RH | Works well even in humid environments like kitchens or outdoors. |
Brightness Control | Manual & auto dimming | Keeps the screen readable in sunlight or at night. |
Software Compatibility | HD2020 / Huidu HDSign | Easy-to-use interface. Also searched as HD-U6A 32 * 320 software download. |
HUB Ports | 2× HUB12 | Connects directly to single-color display modules. |
Test Button | S1 button | Used for screen testing without software connection. |

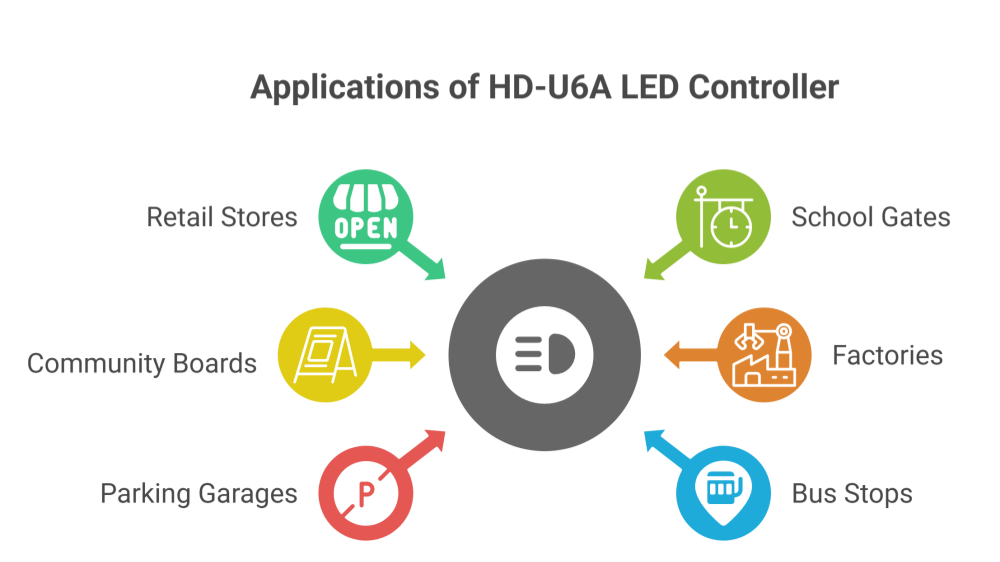

4. Typical Applications
The HD-U6A is designed for basic LED displays, and that’s exactly where it works best. If your screen only needs to show text, time, or countdowns—and doesn’t need color or video—this card is a great fit.
Here are some common places where the HD-U6A controller is used:
- Retail stores – Show promotions, business hours, or scrolling welcome messages.
- School gates or hallways – Display class times, lunch menus, or holiday notices.
- Community bulletin boards – Post announcements, dates, and public reminders.
- Factories and warehouses – Track shift changes, safety messages, or production counts.
- Parking garages – Show availability, entry messages, or rates.
- Bus stops or terminals – Display time schedules or route updates in simple text.
Anywhere that needs clear, readable info on a single-color display—the u6a led controller fits right in. It’s especially useful in places with no stable internet, since updates are done offline with a USB drive.

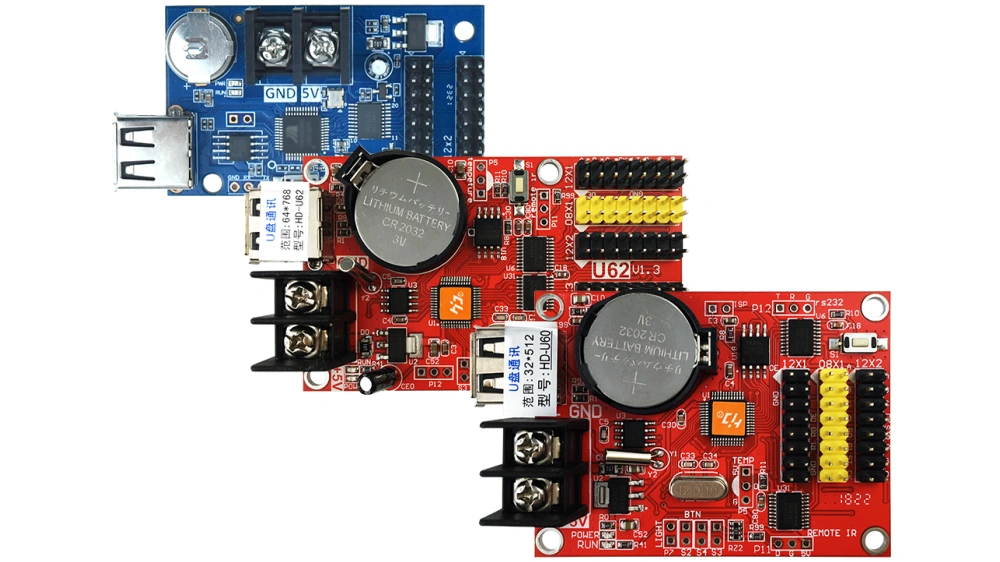

5. HD-U6A vs Other Huidu LED Controller
| Feature | HD-U6A | HD-U60 | HD-U62 |
| Max Screen Size | 320×32 pixels (~0.5m wide) | 512×32 pixels (~1m wide) | 768×64 pixels (~2m wide) |
| Max Width | 320 pixels | 1,024 pixels | 1,536 pixels |
| HUB Ports | 2×HUB12 | 2×HUB12 + 1×HUB08 | 4×HUB12 + 2×HUB08 |
| Sensors | ❌ None | ✅ Temp, Humidity Brightness, IR | ✅ Temp, Humidity Brightness, IR |
| Best For | Small text boards (Shop signs, bus stops) | Mid-size info displays (Factory counters, cafes) | Large panels (Entrance halls, stadiums) |
6. HD-U6A Controller Price
The Huidu HD-U6A is known as one of the most affordable LED control cards for single-color screens. Its price is much lower than full-color or network-based controllers, which makes it popular for budget projects and simple signage.
To check the latest price of the HD-U6A controller, you can register LedInCloud and log in. There, you’ll find not only this model but also pricing for other Huidu controllers and other brands.
You can see how the U6A LED controller stacks up against similar models from NovaStar, Linsn, or Colorlight, whether you’re looking for offline cards, Wi-Fi solutions, or full-color processors.
7. HD-U6A LED Controller Software Download
To set up the HD-U6A, you’ll need the right software. The good news is—it’s free, and easy to get.
The official software for the HD-U6A controller is called HD2020, or HDSign. It’s used to create content, set up display zones, adjust screen size, and export programs to a USB drive. This is the same tool used for most single-color Huidu cards, including the u6a led controller.
You can download it directly from the HuiDu Resource Download page on LedInCloud. This page includes:
- HD2020 / HDSign software
- Manuals and guides for HDU6A software
- Firmware files and technical resources
- Layout templates for common screen sizes (like HD U6A 32 * 320 software download setups)
No need to search multiple sites or worry about outdated versions. Everything is organized by model and regularly updated. And there’s no login required to download—just click and go.
If you’re not sure which file fits your setup, just contact us.
8. Conclusion
The Huidu HD-U6A isn’t packed with advanced features—and that’s exactly why it works so well.
With USB-based updates, multi-zone layout, and solid performance in tough environments, the HD-U6A controller handles day-to-day display tasks without fuss. Whether you’re setting up a shop sign, a school board, or a factory notice screen, this card gives you what you need—and leaves out what you don’t.
Simple, stable, and ready to go—the u6a led controller is a smart choice for basic LED display control.
