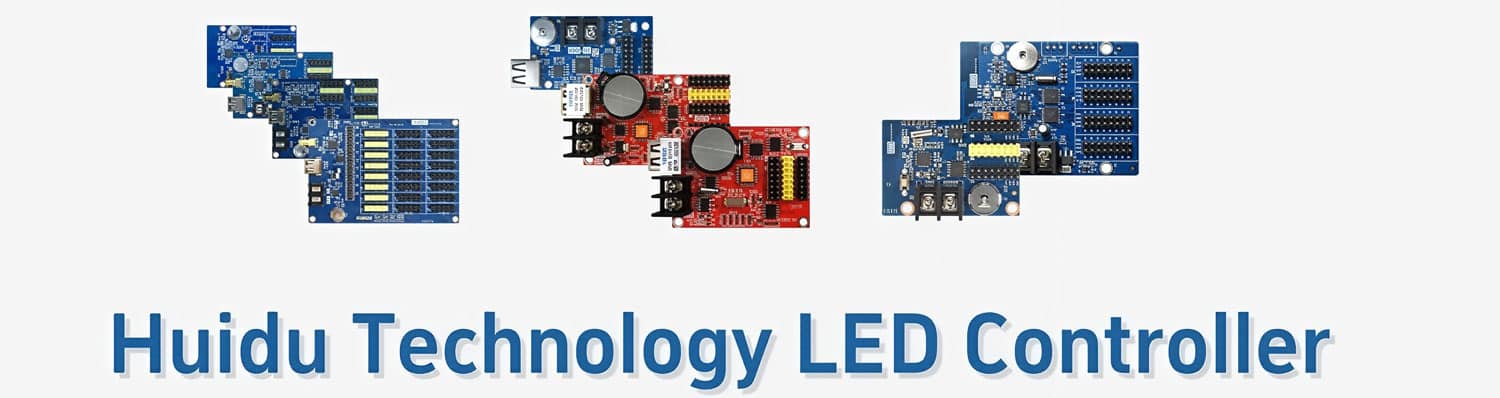

Huidu LED Controller: Product Series and Popular Models

Huidu LED controller cover several control systems, including dual-mode multimedia players, full-color controllers, synchronous controllers, and single-color control cards. The right model depends on your LED display type, pixel load, input signal, and control method.

This guide covers the main Huidu controller types, popular models, key specifications, software resources, and the main points to check before choosing a controller.

Catalogs:

1. Huidu Technology Introduction

2. Types of Huidu LED Controllers

3. Huidu LED Controller Card Price

4. How to Choose the Right Huidu LED Controller?

5. Huidu LED Controller Software Download

6. Conclusion

1. Huidu Technology Introduction

Huidu Technology is a leading high-tech enterprise focusing on LED display application technology. The company is known for its innovation and professionalism and stands at the forefront of the display control system industry.

Huidu Technology is committed to promoting product and service upgrades to meet rapidly changing market needs.

At the 21st Shenzhen International LED Exhibition (LED CHINA 2024), Huidu demonstrated a series of solutions including visual control, cloud cluster management, LCD splicing and wireless projection, highlighting its unique technical advantages and wide application potential. Its booth attracted great attention from industry insiders and the media and received wide acclaim.

Huidu W66 LED Controller
W66 LED Controller
Huidu T901 LED Controller
T901 LED Controller
Huidu WF4/WF2/WF1
WF4/WF2/WF1
Huidu E64/E63/E62
E64/E63/E62

2. Types of Huidu LED Controllers

Huidu offers different LED controller types for different display setups. Below, we look at each type and the main models in the range.

Huidu LED Controller Models at a Glance：

Type

Popular Models

Main Use

Full-Color Controller

HD-A3L, HD-C16L, HD-D16, HD-C08L

Full-color LED displays

Synchronous Controller

HD-T16, HD-T902x2, HD-T902x1, HD-T901, HD-T901B

Real-time video control

Asynchronous Controller

HD-T16, HD-T902x2, HD-T902x1, HD-T901, HD-T901B

Asynchronous LED displays

Single-Color Controller

HD-W60, HD-W63, HD-W66, HD-WF4

Single/dual-color displays

2.1 Synchronous LED Controller

ModelsInputOutputFunctions
HD-T16
  • Supports 1 channel of DP1.4 and 1 channel of HDMI2.0 for signal input; two video signals can be switched freely.
  • Supports 1 TRS
  • 5mm standard two-channel audio input, which can be connected to a multifunction card to transmit audio.
  • Standard configuration includes 16 Gigabit Ethernet ports, directly cascaded to the receiving card.
  • 1 channel HDMI OUT for display screen program preview.
  • Maximum control of 8.84 million pixels (4096×2160), with maximum horizontal support of 8192 pixels and maximum vertical support of 8192 pixels.
  • Supports 4096×2160@60Hz synchronous signal input, with point-to-point display.
  • Standard Wi-Fi for wireless control via PC software.
  • Supports key black and freeze function.
  • Supports seamless splicing of multiple units.
  • Supports infrared remote control (optional).
HD-T902x2
  • 2 dual-channel stereo inputs.
  • Two DVI video inputs.
  • Two USB-B control interfaces.
  • AC 110~220V 50/60Hz power terminal.
  • 8 network port outputs, controlling up to 5.2 million pixels.
  • Standard 3.5mm interface dual-channel stereo output.
  • 1000M RJ45 (8 ports).
  • Ascading multiple units for unified control.
  • Built-in 110V~220V AC to 5V DC transformer.
  • Control range up to 5.2 million pixels (2560*2048@60Hz), with a maximum width of 7680 pixels and a maximum height of 4096 pixels.
  • DVI synchronous display for program updates.
  • Requires a multifunction card for audio output.
  • Communication via USB-B type interface and Gigabit network port.
HD-T902x1
  • One dual-channel stereo input.
  • One DVI video input.
  • USB-B control interface.
  • AC 110~220V 50/60Hz power terminal.
  • 4 network port outputs, controlling up to 2.6 million pixels.
  • Standard 3.5mm interface dual-channel stereo output.
  • 1000M RJ45 (4 ports).
  • Cascading multiple units for unified control.
  • Built-in 110V~220V AC to 5V DC transformer.
  • Control range:
    Direct connection with a computer controls up to 2.3 million pixels (1920*1200@60Hz).
    Connection with a video processor controls up to 2.6 million pixels (2048*1280@60Hz).
  • Maximum width: 3840 pixels, Maximum height: 2048 pixels.
  • DVI synchronous display for program updates.

HD-T901

  • One DVI video input.
  • 5V power supply terminal.
  • USB 2.0 interface.
  • PCI finger interface.
  • Serial cascade interface.
  • 2 x 1000M RJ45 interfaces.
  • Serial interface for cascading.
  • Supports 1~64 scan, compatible with indoor and outdoor full color and single color modules.
  • Control range:
    Maximum of 1.3 million pixels.
    Maximum width: 3840 pixels.
    Maximum height: 2048 pixels.
  • Grayscale levels up to 65536.
  • Supports cascading with serial port to configure multiple sending cards, and cascading of sending cards to control high-resolution screens.
  • DVI synchronous display for program updates.
  • Compatible with PWM chips such as MBI, MY, ICN, SM, and conventional chips.
  • Supports any scanning method from static to 1/64 scan.
HD-T901B
  • One dual channel stereo input.
  • One DVI video input.
  • USB-B control interface.
  • AC 110~220V 50/60Hz power terminal.
  • 2 network port outputs, with maximum control of 1.3 million pixels.
  • Standard 3.5mm interface for dual channel stereo input.
  • 1000M RJ45 x 4.
  • Dual channel audio output.
  • Supports direct connection with computer to control up to 1.3 million pixels (1920×1200@60Hz).
  • Requires a video processor for widths exceeding 1920 pixels.
  • DVI synchronous display for program updates.
  • Standard 3.5mm interface for dual channel stereo input.
  • Audio output requires cooperation with a multi-function card.
  • Communication through USB-B type interface and Gigabit network port.
  • Cascading multiple units for unified control.
  • Built-in 110V~220V AC to 5V DC transformer.

2.2 Asynchronous LED Controller

Models

Input

Output

Functions

HD-T16

  • Supports 1 channel of DP1.4 and 1 channel of HDMI2.0 for signal input; two video signals can be switched freely.
  • Supports 1 TRS 3.5mm standard two-channel audio input, which can be connected to a multifunction card to transmit audio.
  • Standard configuration includes 16 Gigabit Ethernet ports, directly cascaded to the receiving card.
  • 1 channel HDMI OUT for display screen program preview.
  • Maximum control of 8.84 million pixels (4096×2160), with maximum horizontal support of 8192 pixels and maximum vertical support of 8192 pixels.
  • Supports 4096×2160@60Hz synchronous signal input, with point-to-point display.
  • Standard Wi-Fi for wireless control via PC software.
  • Supports key black and freeze function.
  • Supports seamless splicing of multiple units.
  • Supports infrared remote control (optional).

HD-T902x2

  • 2 dual-channel stereo inputs.
  • Two DVI video inputs.
  • Two USB-B control interfaces.
  • AC 110~220V 50/60Hz power terminal.
  • 8 network port outputs, controlling up to 5.2 million pixels.
  • Standard 3.5mm interface dual-channel stereo output.
  • 1000M RJ45 (8 ports).
  • Ascading multiple units for unified control.
  • Built-in 110V~220V AC to 5V DC transformer.
  • Control range up to 5.2 million pixels (2560*2048@60Hz), with a maximum width of 7680 pixels and a maximum height of 4096 pixels.
  • DVI synchronous display for program updates.
  • Requires a multifunction card for audio output.
  • Communication via USB-B type interface and Gigabit network port.

HD-T902x1

  • One dual-channel stereo input.
  • One DVI video input.
  • USB-B control interface.
  • AC 110~220V 50/60Hz power terminal.
  • 4 network port outputs, controlling up to 2.6 million pixels.
  • Standard 3.5mm interface dual-channel stereo output.
  • 1000M RJ45 (4 ports).
  • Cascading multiple units for unified control.
  • Built-in 110V~220V AC to 5V DC transformer.
  • Control range:
    Direct connection with a computer controls up to 2.3 million pixels (1920*1200@60Hz).
    Connection with a video processor controls up to 2.6 million pixels (2048*1280@60Hz).
  • Maximum width: 3840 pixels, Maximum height: 2048 pixels.
  • DVI synchronous display for program updates.

HD-T901

  • One DVI video input.
  • 5V power supply terminal.
  • USB 2.0 interface.
  • PCI finger interface.
  • Serial cascade interface.
  • 2 x 1000M RJ45 interfaces.
  • Serial interface for cascading.
  • Supports 1~64 scan, compatible with indoor and outdoor full color and single color modules.
  • Control range:
    Maximum of 1.3 million pixels.
    Maximum width: 3840 pixels.
    Maximum height: 2048 pixels.
  • Grayscale levels up to 65536.
  • Supports cascading with serial port to configure multiple sending cards, and cascading of sending cards to control high-resolution screens.
  • DVI synchronous display for program updates.
  • Compatible with PWM chips such as MBI, MY, ICN, SM, and conventional chips.
  • Supports any scanning method from static to 1/64 scan.

HD-T901B

  • One dual channel stereo input.
  • One DVI video input.
  • USB-B control interface.
  • AC 110~220V 50/60Hz power terminal.
  • 2 network port outputs, with maximum control of 1.3 million pixels.
  • Standard 3.5mm interface for dual channel stereo input.
  • 1000M RJ45 x 4.
  • Dual channel audio output.
  • Supports direct connection with computer to control up to 1.3 million pixels (1920×1200@60Hz).
  • Requires a video processor for widths exceeding 1920 pixels.
  • DVI synchronous display for program updates.
  • Standard 3.5mm interface for dual channel stereo input.
  • Audio output requires cooperation with a multi-function card.
  • Communication through USB-B type interface and Gigabit network port.
  • Cascading multiple units for unified control.
  • Built-in 110V~220V AC to 5V DC transformer.
  • Control range:
    Maximum width: 3840 pixels.
    Maximum height: 2048 pixels.

2.3 Full-Color LED Controller

Models

Input

Output

Functions

HD-A3L

  • Supports 1 network port for faster parameter debugging and program sending.
  • Includes 1 USB2.0 and 1 USB3.0 interface for program insertion and capacity expansion.
  • Supports 1 sensor input interface for environmental monitoring.
  • Features 1 Gigabit network port for HD-R series receiving card control display.
  • Controls up to 655,360 pixels, with a maximum horizontal support of 8192 pixels and vertical support of 2560 pixels.
  • Includes 1 TRS 3.5mm two-channel audio output.
  • Standard Wi-Fi for mobile app control (supports STA mode to connect to nearby Wi-Fi networks).
  • Supports multi-channel video playback (1-channel 4K, 2-channel 1080P, 4-channel 720P, or 6-channel 360P).
  • Optional 4G access for XiaoHui Cloud platform remote management.

HD-C16L

  • Supports 1 channel 100M network port for debugging, program sending, and Internet access.
  • Includes 1 USB interface for program updates and capacity expansion.
  • Features dedicated interfaces for 1 temperature sensor, 1 GPS sensor, and 1 universal sensor.
  • Controls up to 650,000 pixels, with a single card supporting 200,000 pixels; cascades can handle up to 650,000 pixels. Maximum width is 8192 pixels (width > 1920 pixels triggers discount), and maximum height is 1920 pixels.
  • Includes 1 Gigabit network port for cascading to HD-R series receiving cards.
  • Features 12 HUB75E interfaces.
  • Provides 1 TRS 3.5mm two-channel audio output.
  • Includes 2.4GHz Wi-Fi for mobile app control (supports Wi-Fi-AP and Wi-Fi-STA modes).
  • Features 1 relay for remote power supply control.
  • Supports 2-channel video playback (up to 2 channels of 1080P).
  • Optional 4G access for remote management via XiaoHui Cloud platform.
  • Supports UART communication.
  • Optional 1-channel RS-232 or RS-485 communication.

HD-D16

  • 1 Standard 5V power input
  • 1 USB 2.0 port
  • 1 10/100M RJ45 network port
  • 4 HUB75E ports for connecting LED modules

U-Disk for program expansion and plug-in broadcasting

  • Grayscale Support: 256 to 65536 levels
  • Display Types: Video, Picture, Animation, Clock, Neon background
  • Special Effects: Word art, animated backgrounds, neon light effects
  • Video Playback: 720P hardware decoding with 60Hz frame rate output; supports AVI, WMV, MP4, 3GP, ASF, MPG, FLV, F4V, MKV, MOV, DAT, VOB, TRP, TS, WEBM

HD-C08L

  • Supports 1 channel 100M network port for debugging, program sending, and Internet access.
  • Includes 1 USB interface for program updates and capacity expansion.
  • Features dedicated interfaces for 1 temperature sensor, 1 GPS sensor, and 1 universal sensor.
  • Controls up to 196,000 pixels, with a maximum width of 2048 pixels or height of 1024 pixels.
  • Onboard 8 HUB75E interfaces.
  • Provides 1 TRS 3.5mm two-channel audio output.
  • Standard 2.4GHz Wi-Fi for mobile app control (supports Wi-Fi AP and Wi-Fi STA modes).
  • Onboard 1 relay for remote power control.
  • Supports 2-channel video playback (up to 2 channels of 1080P).
  • Optional 4G access for remote management via XiaoHui Cloud platform.
  • Supports UART communication.
  • Optional 1-channel RS-232 or RS-485 communication.
  • Optional Chinese and English voice broadcast feature.

2.4 Single-Color LED Controller

Models

Control Range

FLASH Capacity

Communication

Area Quantity

HD-W2

Single color: 512*32, Max Width: 1024, Max Height: 32

1M Byte (512KB usable)

Wi-Fi

20 areas with separate zones, each with special effects and borders

HD-W04

Single color: 768*64, Max Width: 1536, Max Height: 64

Dual color: 384*64

1M Byte (512KB usable)

Wi-Fi

20 areas with separate zones, each with special effects and borders

HD-W60

Single color: 1024*32, Max Width: 1536, Max Height: 32

Dual color: 512*32

4M Byte (1M Byte usable)

U-disk, Wi-Fi

20 areas with separate zones, special effects, and borders

HD-W62

Single color: 1024*64, Max Width: 2048, Max Height: 64

Dual color: 512*64

4M Byte (1M Byte usable)

U-disk, Wi-Fi

20 areas with separate zones, special effects, and borders

HD-W63

Single color: 1024*128, Max Width: 3072, Max Height: 128

Dual color: 512*128

4M Byte (3.5MB usable)

U-disk, Wi-Fi

20 independent areas with separate effects and borders

HD-W64A

Single color: 1024*256, Max Width: 4096, Max Height: 256

Dual color: 512*256

8M Byte (5.2MB usable)

U-disk, Wi-Fi

20 independent areas with separate effects and borders

HD-W66

Single color: 2048*512, Max Width: 8192, Max Height: 512

Dual color: 1024*512

Full color: 1344*256

8M Byte (7.5M Byte usable)

U-disk, Wi-Fi, LAN, serial port (RS232, RS485)

20 independent areas with separate effects and borders

HD-WF1

384*64, Max Width: 640, Max Height: 64

1M Byte (480K Byte usable)

U-disk, Wi-Fi

20 independent areas with separate effects and borders

HD-WF2

768*64, Max Width: 1280, Max Height: 128

8M Byte (4.5M Byte usable)

U-disk, Wi-Fi

20 independent areas with separate effects and borders

HD-WF4

768*128, Max Width: 1280, Max Height: 256

8M Byte (4.5M Byte usable)

U-disk, Wi-Fi

20 independent areas with separate effects and borders

HD-U60

Single color: 512*32, Max Width: 1024, Max Height: 32

Dual color: 256*32

2M Byte (1.4MB usable)

U-disk

20 independent areas with separate effects and borders

HD-U6A

Single color: 320*32, Max Width: 320, Max Height: 32

2M Byte (practical usage)

U-disk

4 independent areas with separate effects and borders

HD-U62

Single color: 768*64, Max Width: 1536, Max Height: 64

Dual color: 384*64

8M Byte (5.2MB usable)

U-disk

20 independent areas with separate effects and borders

HD-E62

Single color: 1024*64, Max Width: 2048, Max Height: 64

Dual color: 512*64

4M Byte (practical usage: 3.5MB)

U-Disk, LAN

20 independent areas with separate effects and borders

HD-E63

Single color: 1024*128, Max Width: 3072, Max Height: 128

Dual color: 512*128

4M Byte (practical usage: 3.5MB)

U-Disk, LAN

20 independent areas with separate effects and borders

HD-E64

Single color: 1024*256, Max Width: 4096, Max Height: 256

Dual color: 512*256

Multiple colors: 672*128

8M Byte (practical usage: 7.5MB)

U-Disk, LAN

20 independent areas with separate effects and border

Huidu W Series Connection Diagram
Huidu U Series Connection Diagram
Huidu E Series Connection Diagram

3. Huidu LED Controller Card Price

Huidu Technology offers a range of LED controllers that cater to different needs and budgets.

We invite you to register on our LED Screen Cloud Platform platform to get the most accurate and up-to-date pricing. Registration is quick, easy, and completely free.

Upon registration, you will have access to a personalized dashboard where you can get:

  • LED Screen Price Online Caculator: Check the prices of all Huidu LED controller cards and compare different models to find the one that suits your needs.
  • Download Resources: Get access to product manuals, software, and other useful documents.
  • Stay Updated: Receive notifications about new products, special offers, and important updates directly in your inbox.

Registering on our platform not only provides you with valuable information but also connects you with a community of industry professionals and experts.

Ledincloud Price Caculator

4. How to Choose the Right Huidu LED Controller?

Huidu Technology offers a diverse range of LED controllers, each designed to meet specific requirements and applications. Here’s some tips to help you choose the right Huidu LED controller:

U6A LED Controller
U6A LED Controller
Huidu Controller Card
Huidu Controller Card

(1) Understand Your Display Requirements

Size of the Display: Larger displays typically require more powerful controllers to handle the increased data processing and output.

Resolution: Higher resolution displays need controllers that can manage the increased pixel count and data rate.

Type of Content: Determine whether your display will show static images, videos, or dynamic content. Different types of content require different controller capabilities.

(2) Identify the Application

Advertising and Retail: Controllers for advertising displays should support high brightness and contrast to stand out in various lighting conditions.

Public Information Displays: These require controllers with robust scheduling and content management features to ensure timely updates.

Events and Entertainment: Controllers for events need to support synchronization and high-quality video playback to create immersive experiences.

Corporate and Education: For classrooms and meeting rooms, look for controllers that support interactive features and seamless integration with presentation tools.

Command and Control Centers: Controllers should offer high reliability, real-time data processing, and multi-screen support.

(3) Consider Connectivity Options

Wired Connections: For stable and high-speed data transfer, consider controllers with Ethernet or fiber optic connections.

Wireless Options: If your setup requires flexibility or is in a location where wiring is difficult, look for controllers that support Wi-Fi or other wireless technologies.

By following these tips and getting detailed product information, comparing model prices, and more on our platform, you can ensure that you choose a controller that meets your needs and provides the most powerful performance for your LED display.

5. Huidu LED Controller Software Download

To start, navigate to our website. Here, you’ll find a comprehensive collection of Huidu Resource Downloads designed to support your LED display projects. The website is your one-stop destination for all software-related needs, including downloads, updates, and support.

Ledincloud Software Download

6. Conclusion

Huidu Technology continues to push the boundaries of what’s possible in display control systems. Whether you need a simple, cost-effective solution for a small setup or a high-performance controller for a complex, large-scale display, Huidu LED controller will always fit your needs.

Scroll to Top
