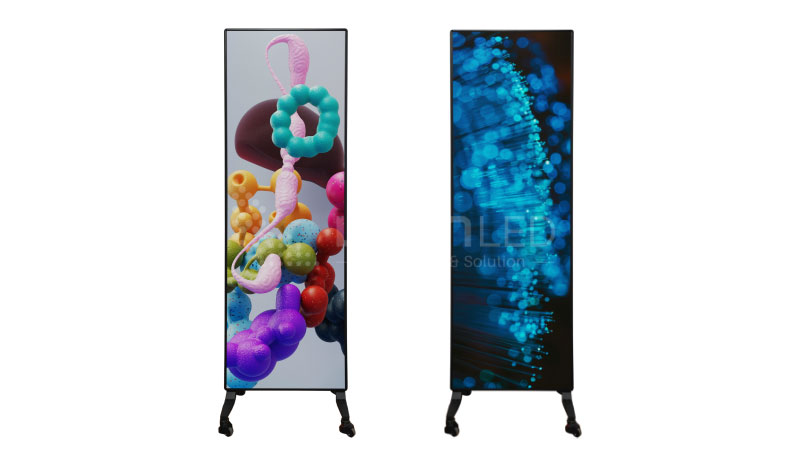

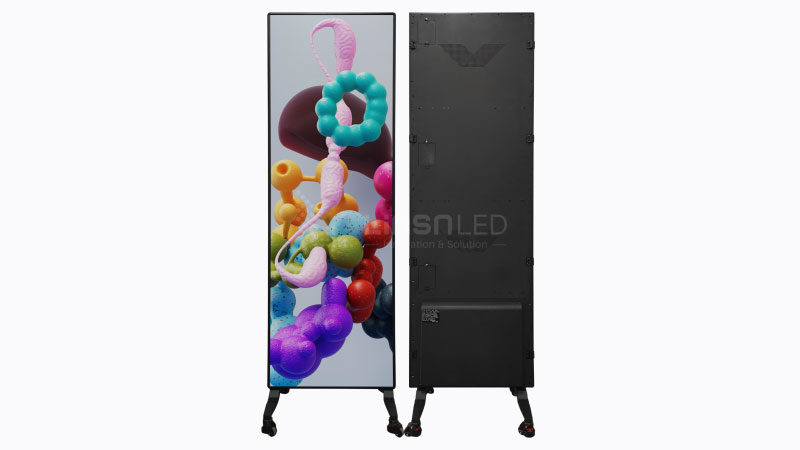

LC60S Series
Seamless Splicing LED Poster
- CNC-Machined Aluminum Alloy Cabinet

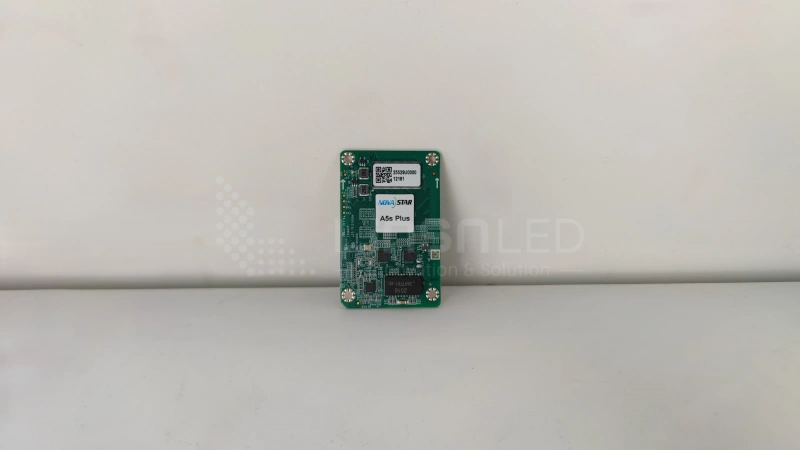

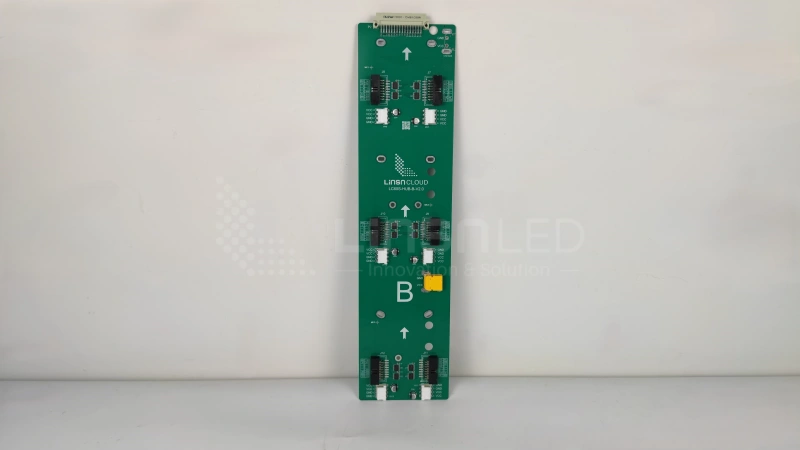

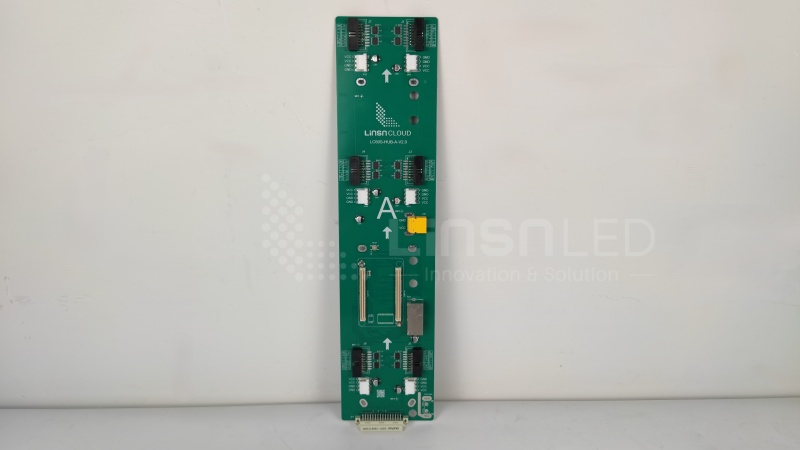

- Two-in-One Control Board Design
- Ultra-Thin and Lightweight
- Specialized Mobility Wheels
- Smart Cloud Control Management
- Multiple Connectivity Options
- Flexible Installation Options

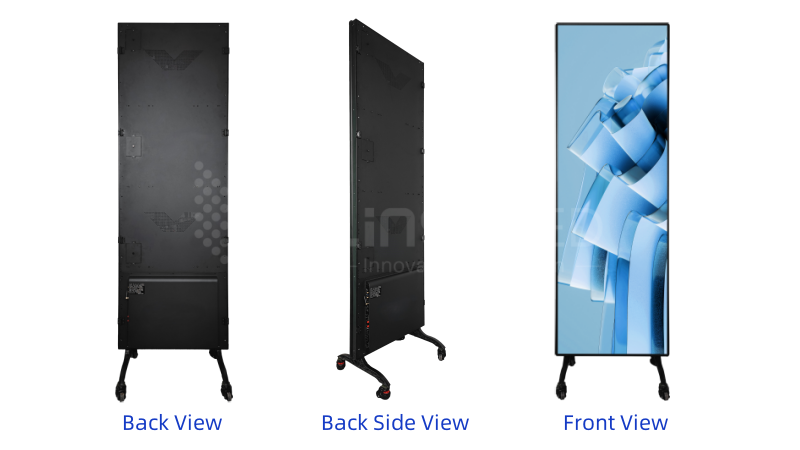

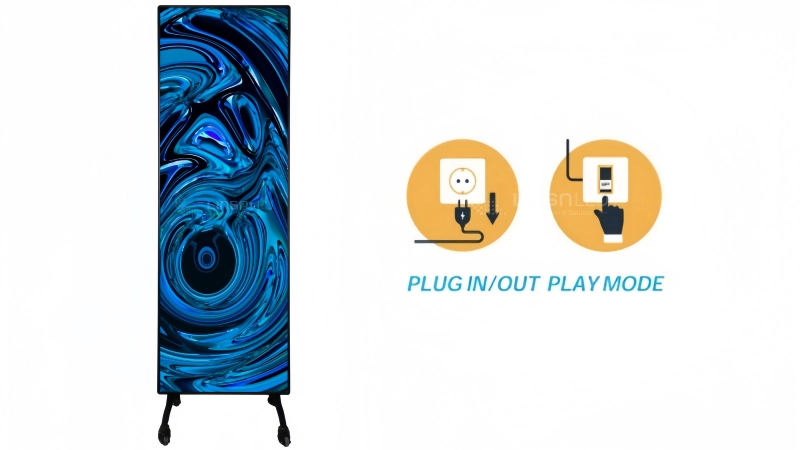

Plug-and-Play Design

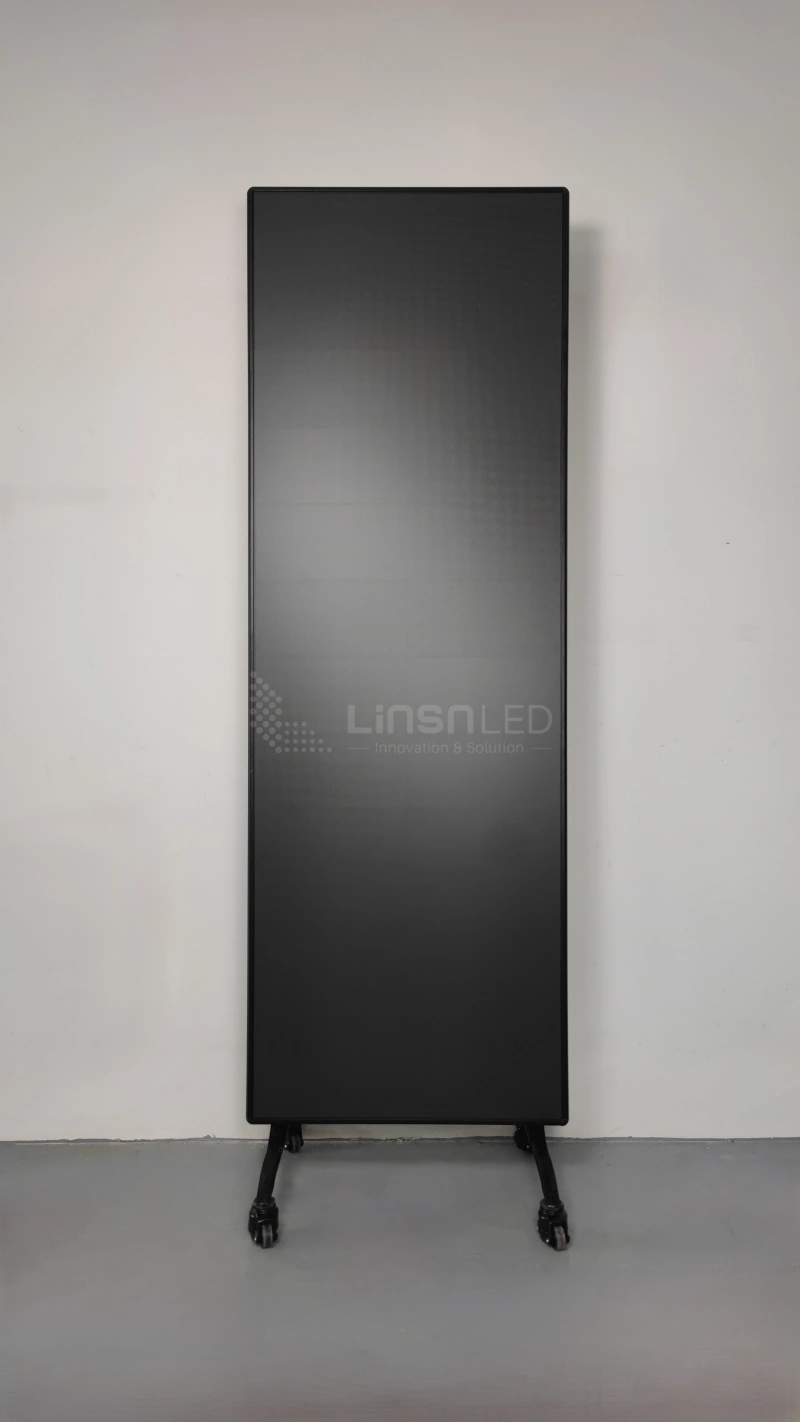

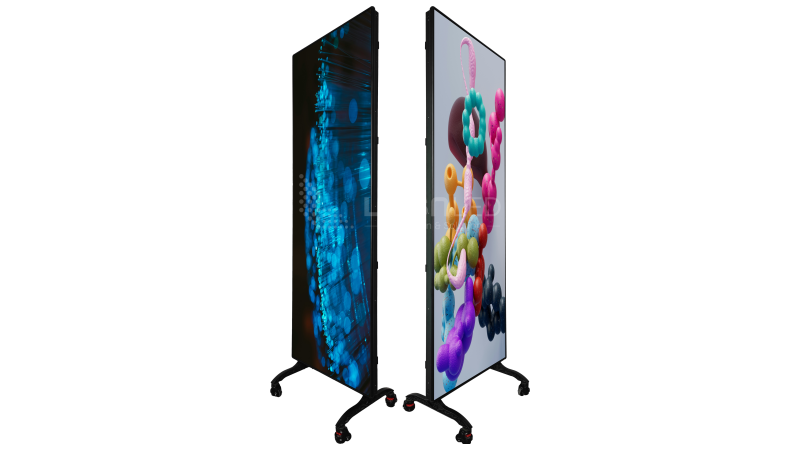

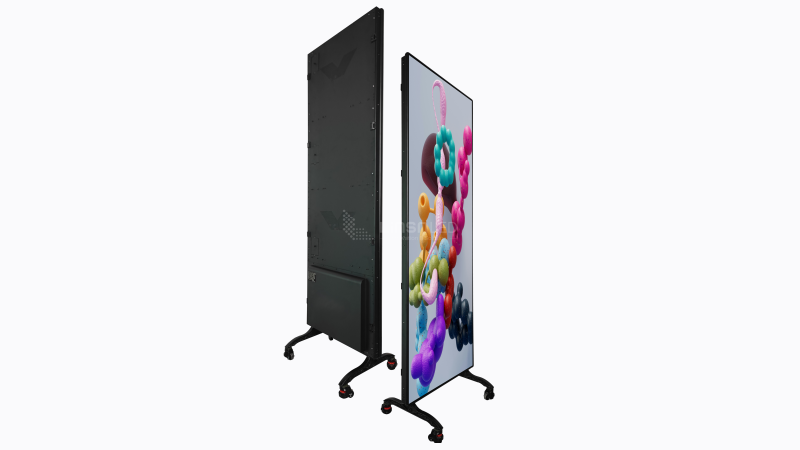

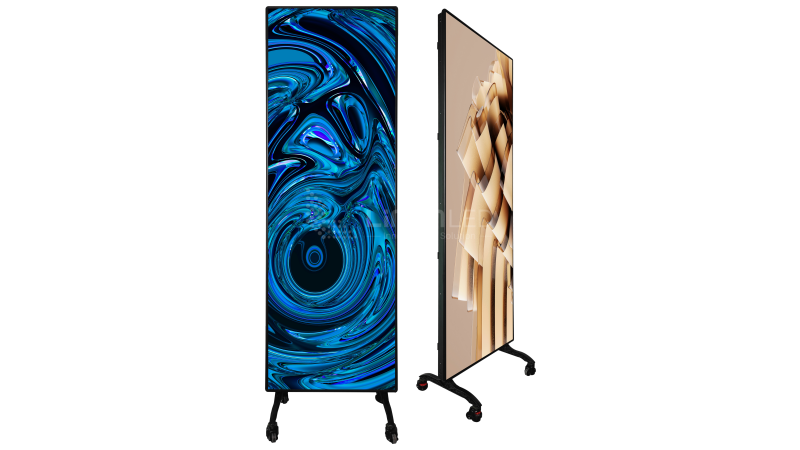

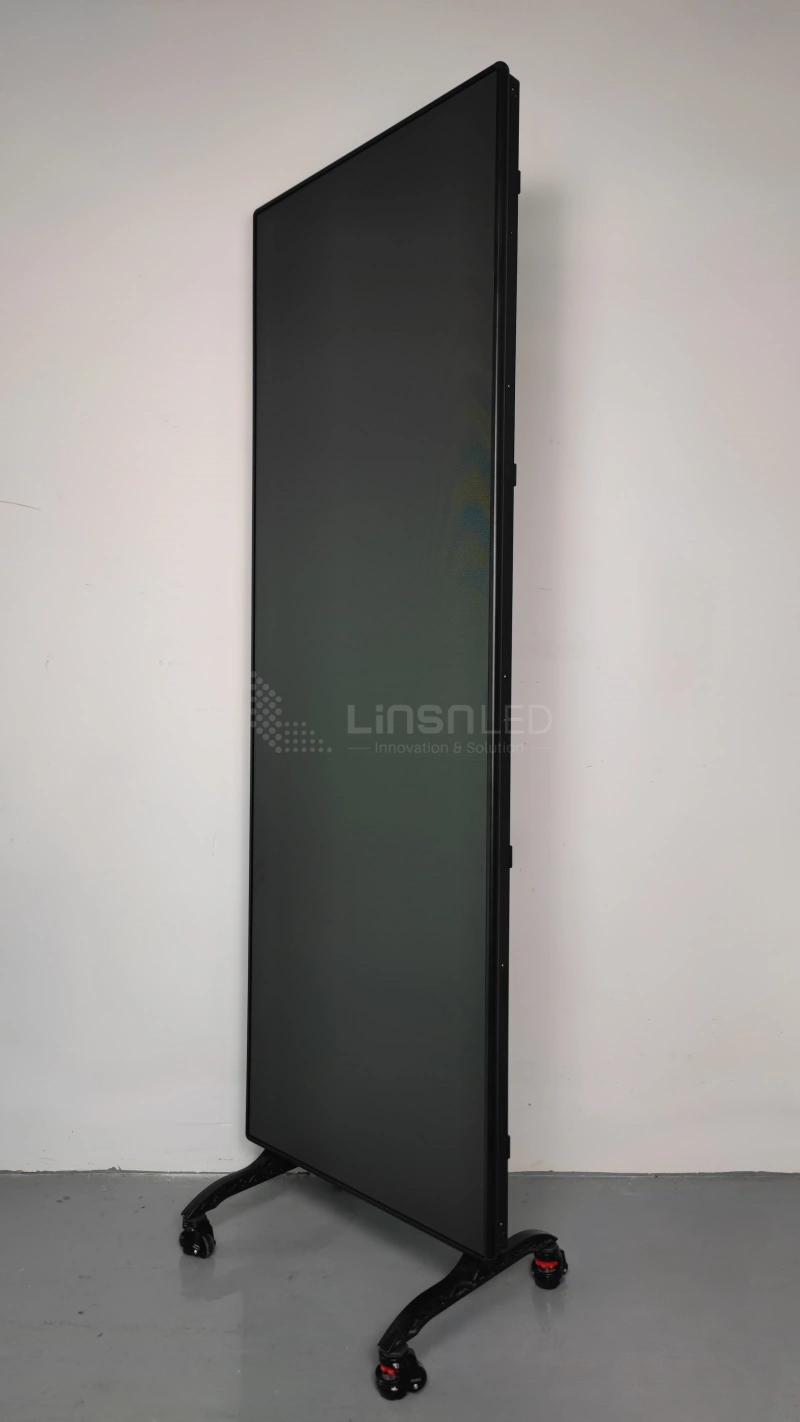

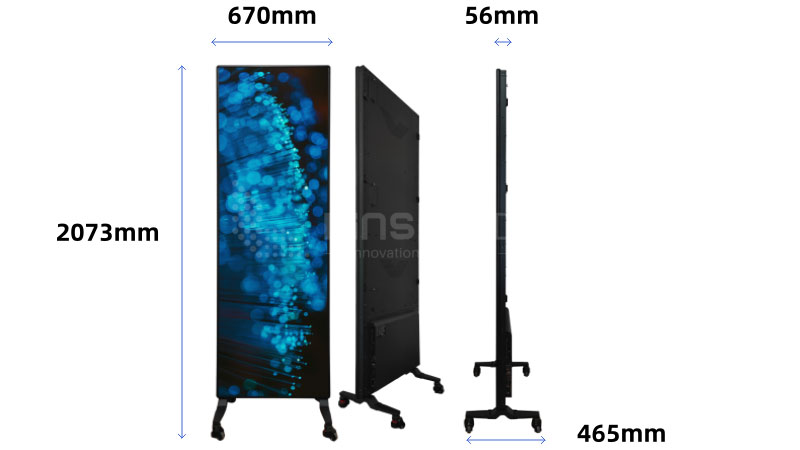

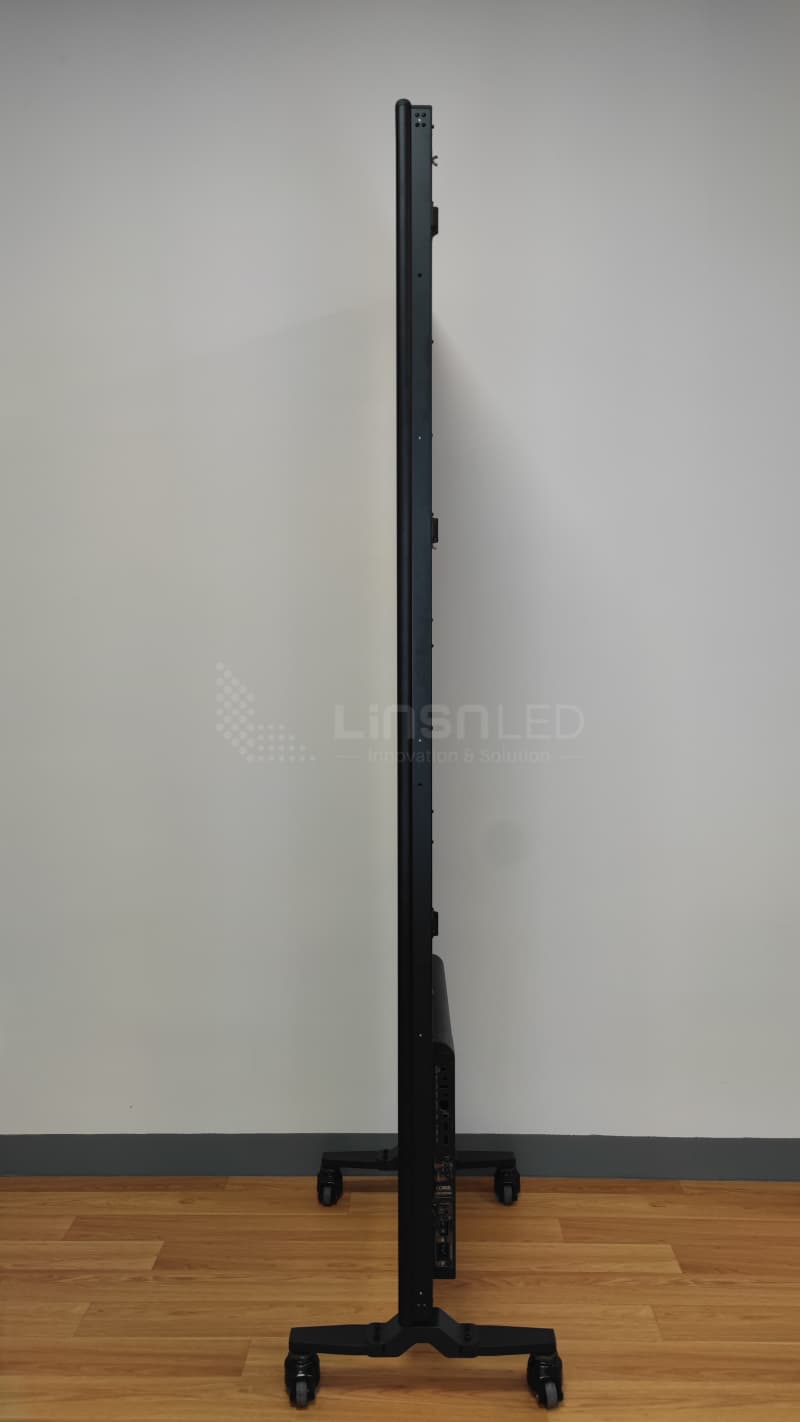

The LedInCloud LC60S boasts an integrated CNC-machined aluminum alloy cabinet, precisely crafted for a smooth, flat display surface. With no visible bright or dark lines, the display ensures uniform visuals. Weighing just 47KG and with compact dimensions of 670×2073×465mm, the LC60S is lightweight and easy to transport.
This one-piece, plug-and-play design features a 640×1920mm display area, making it quick to install and ideal for events, exhibitions, retail spaces, and digital signage applications.

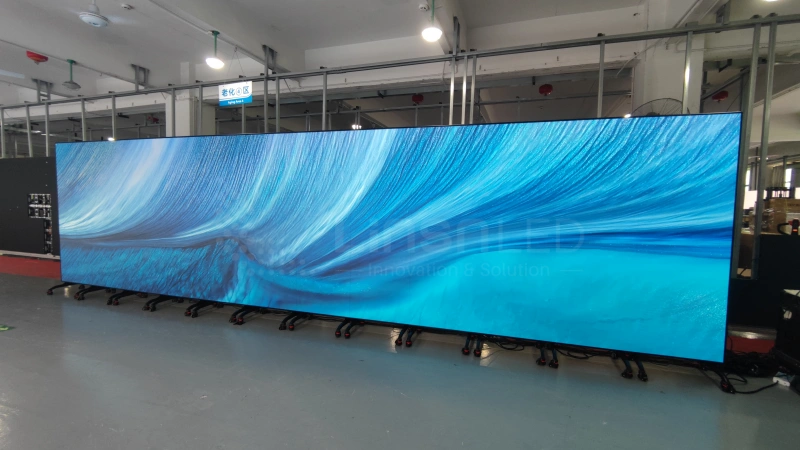

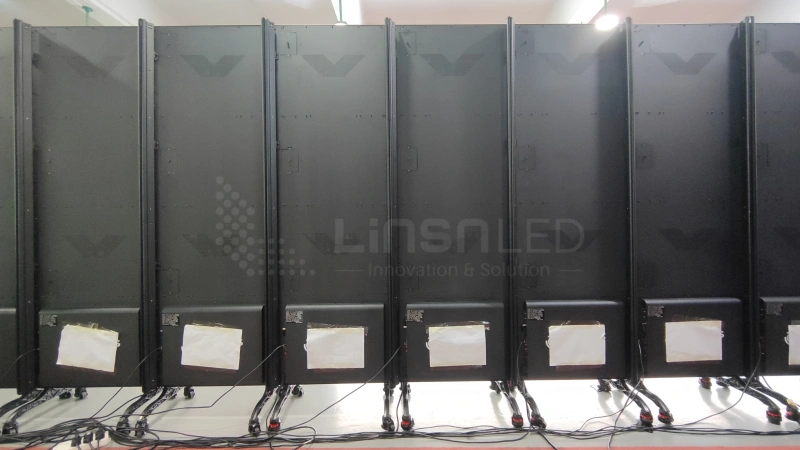

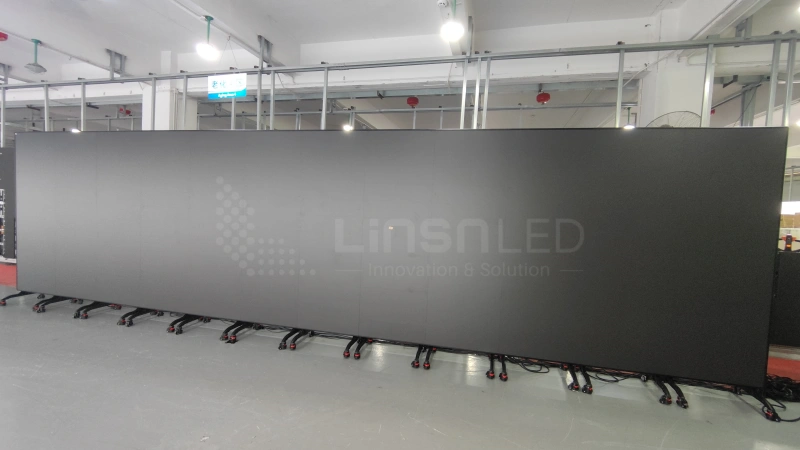

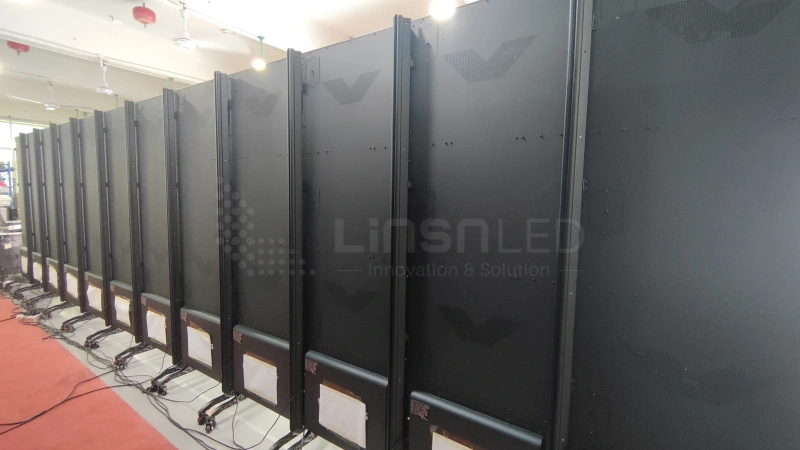

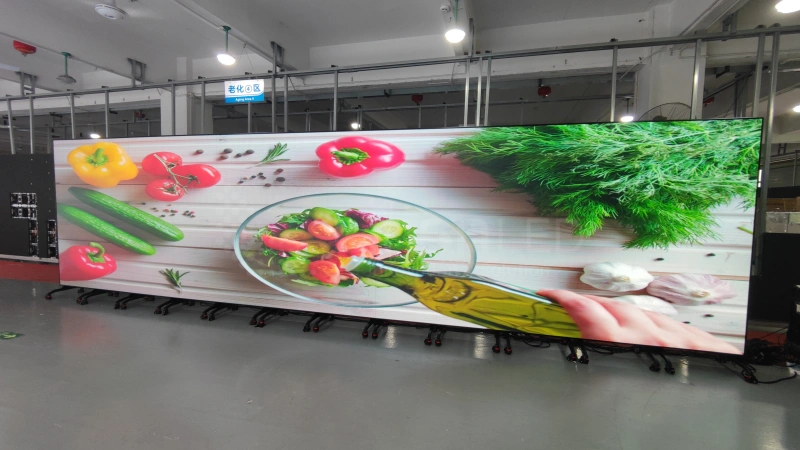

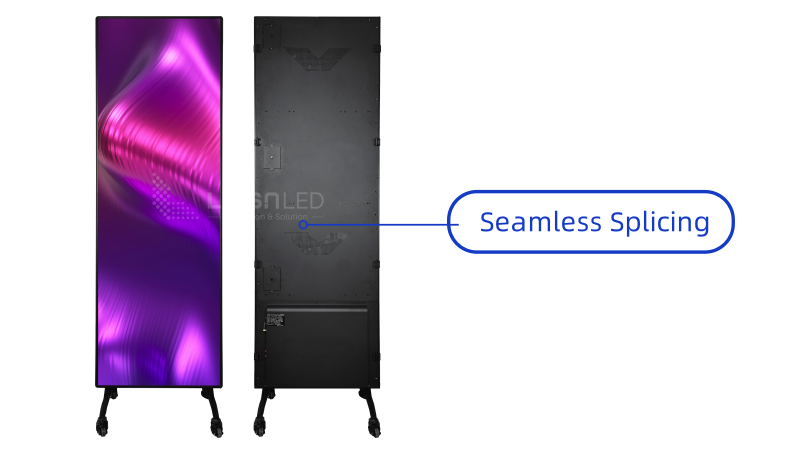

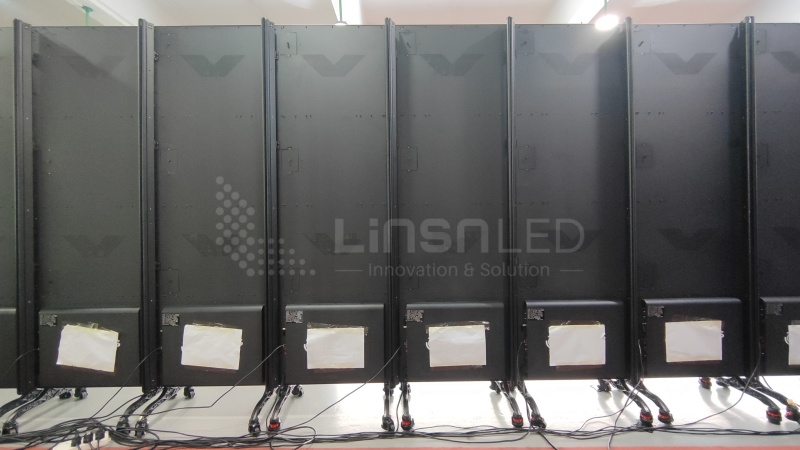

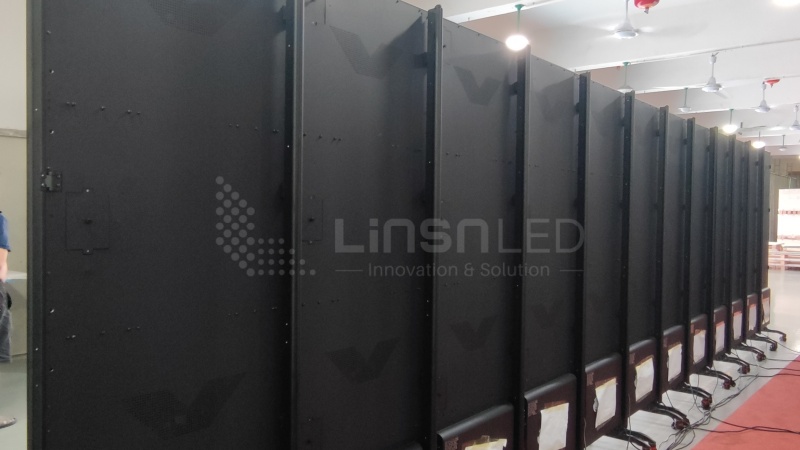

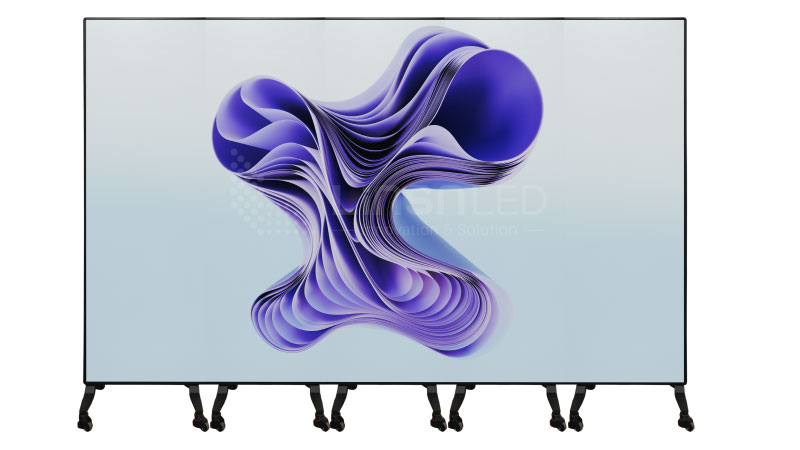

Seamless Multi-Screen Splicing

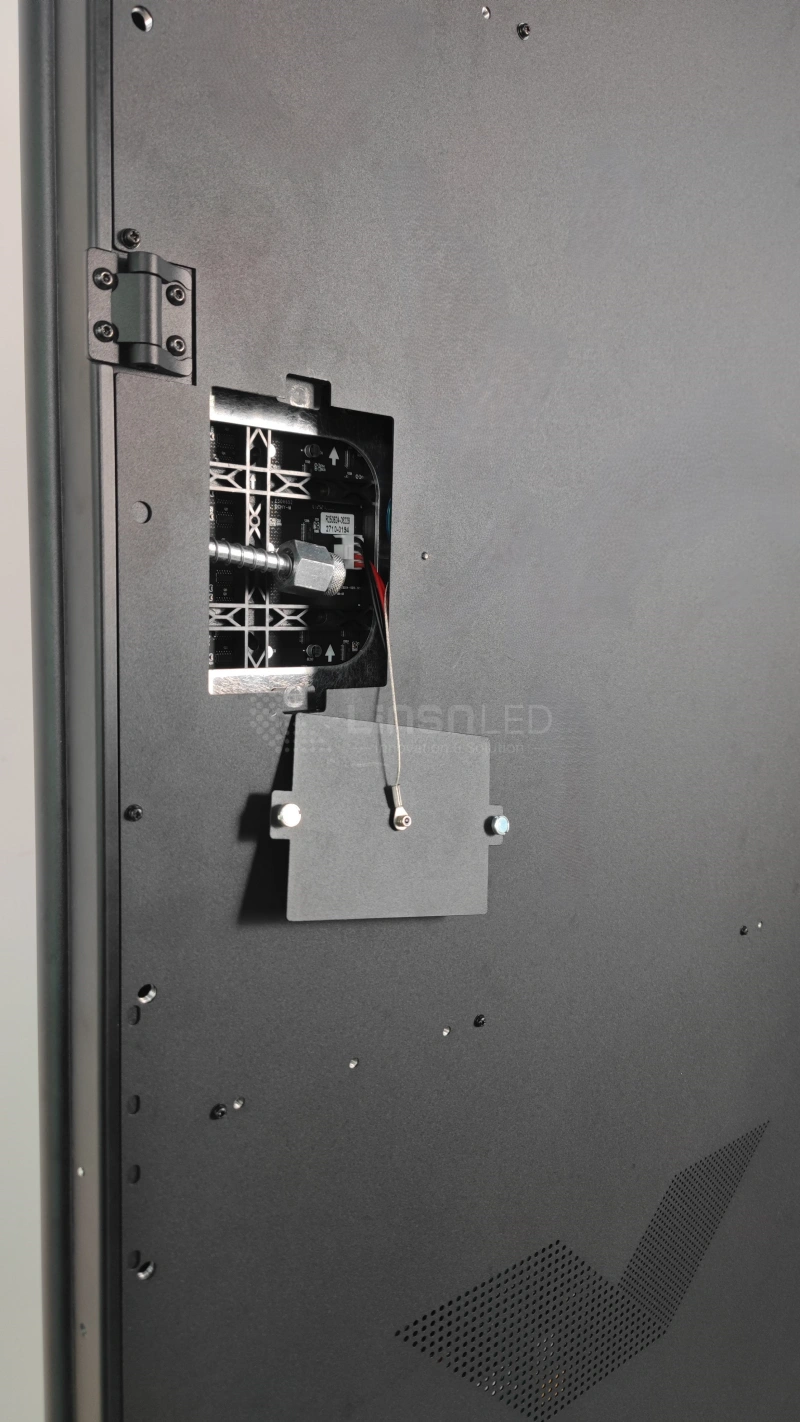

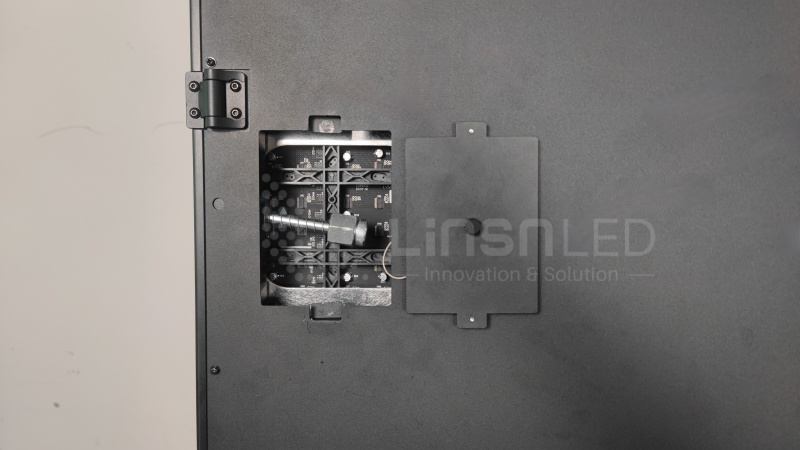

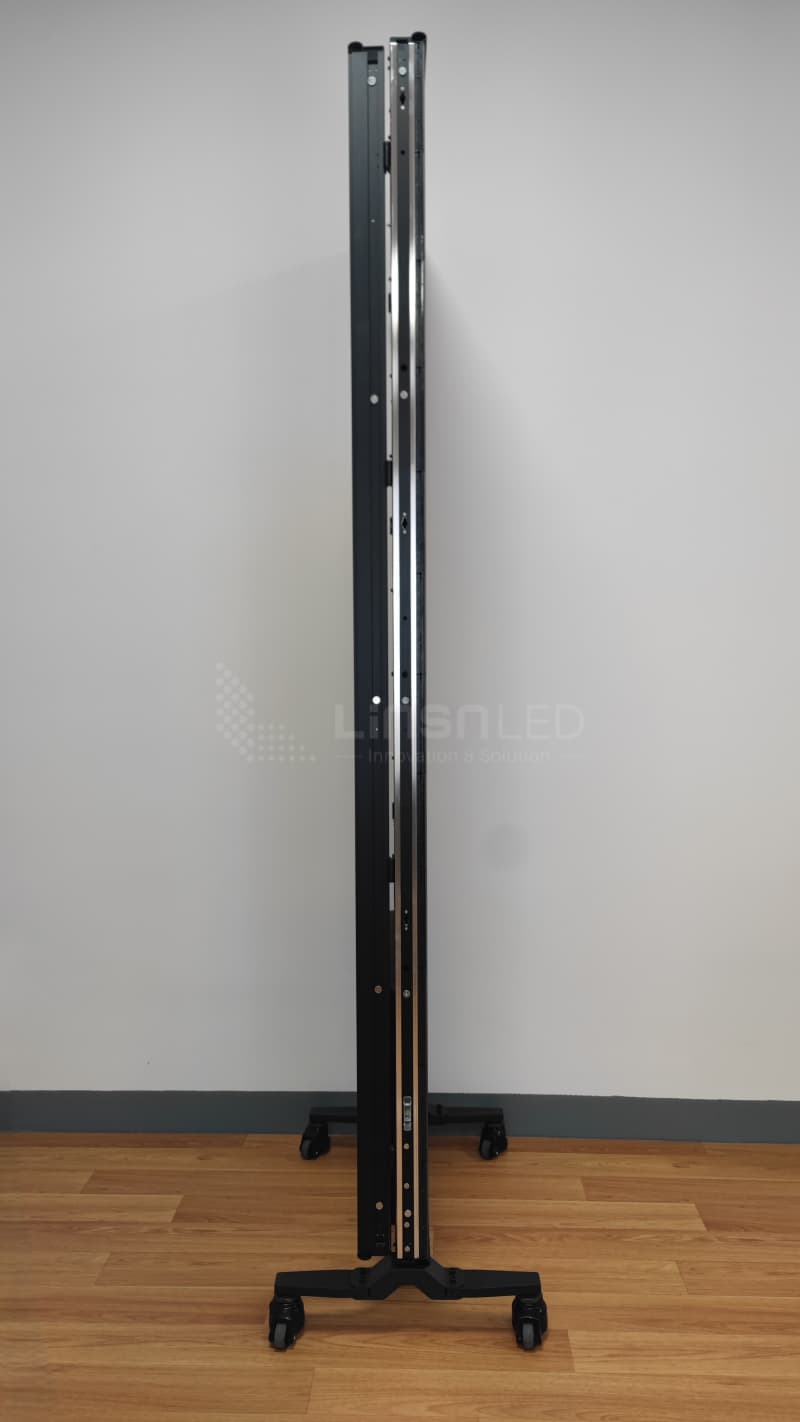

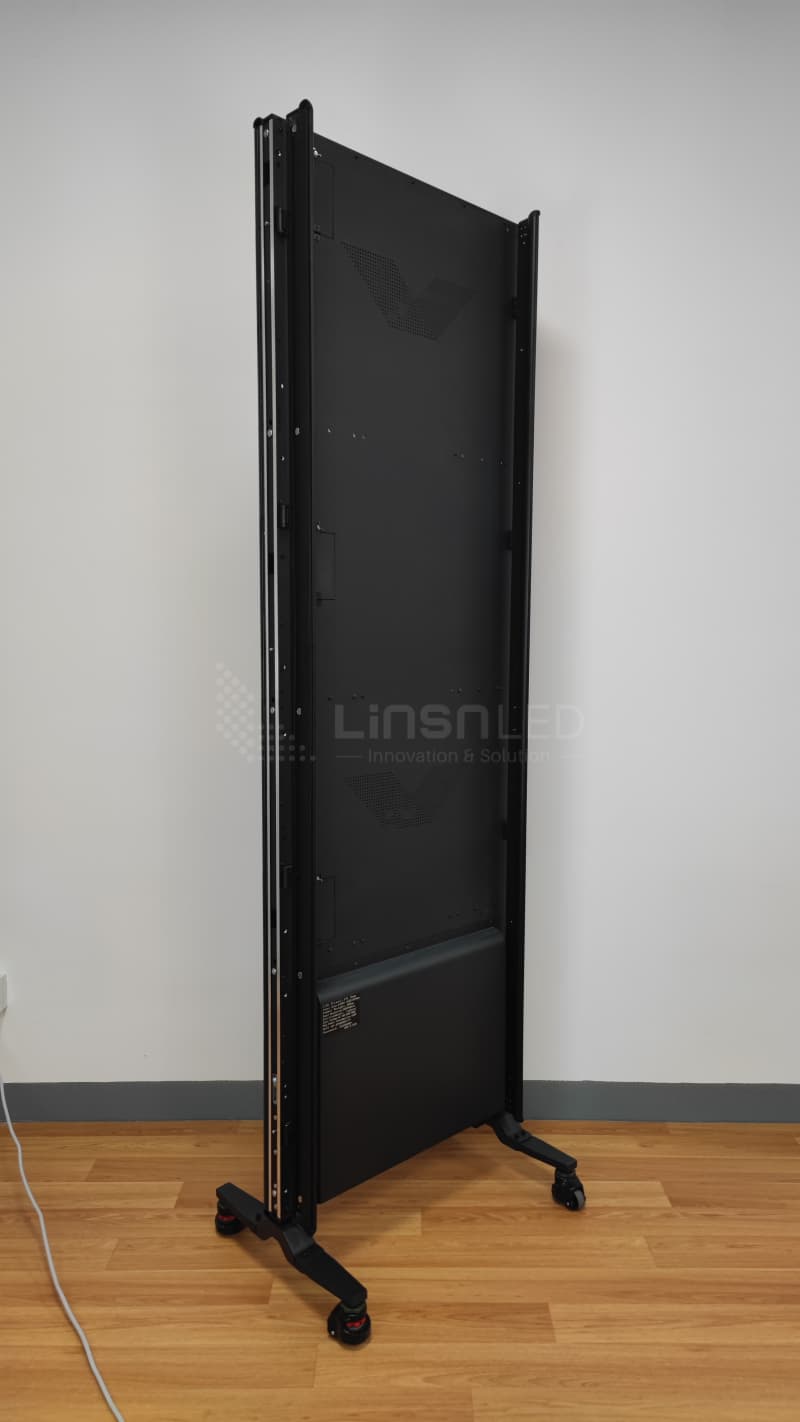

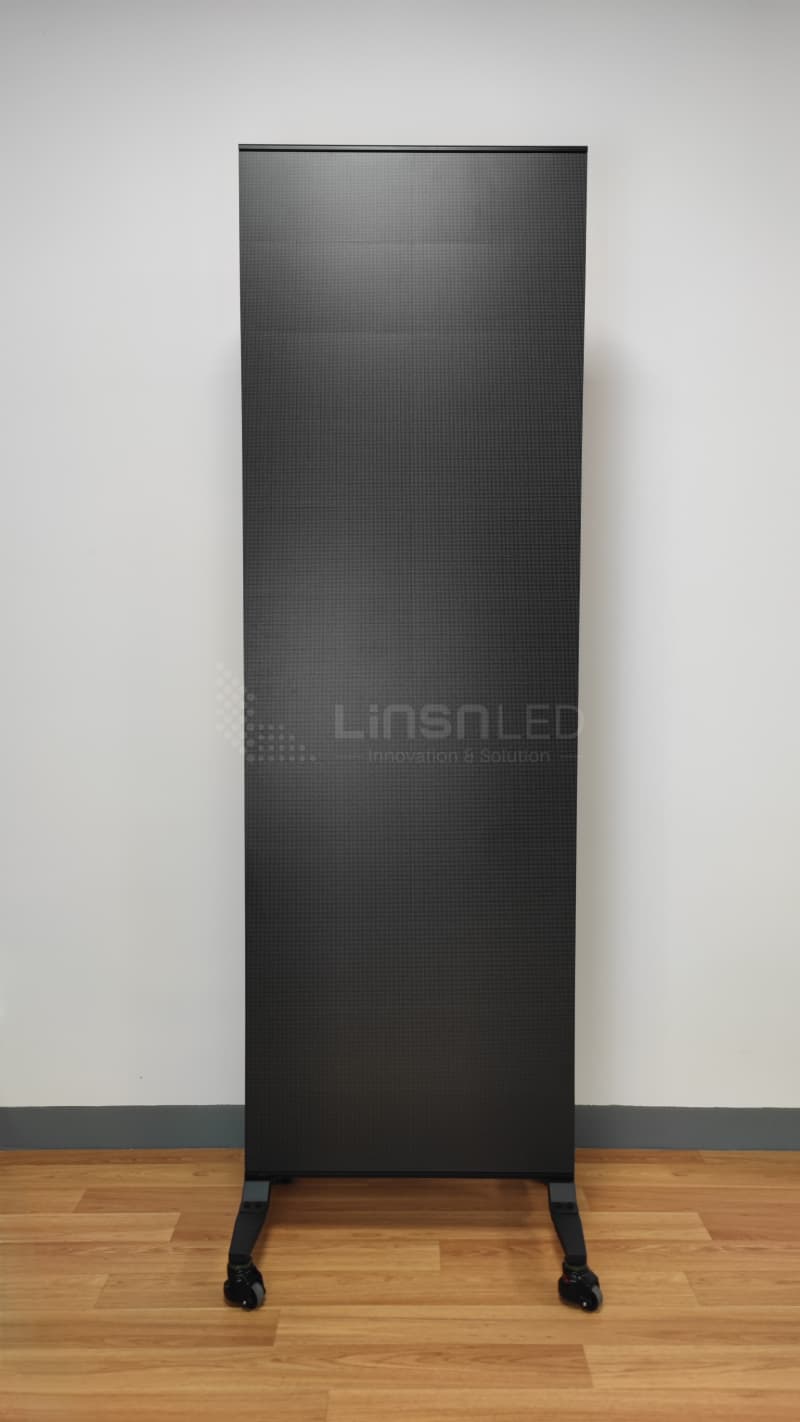

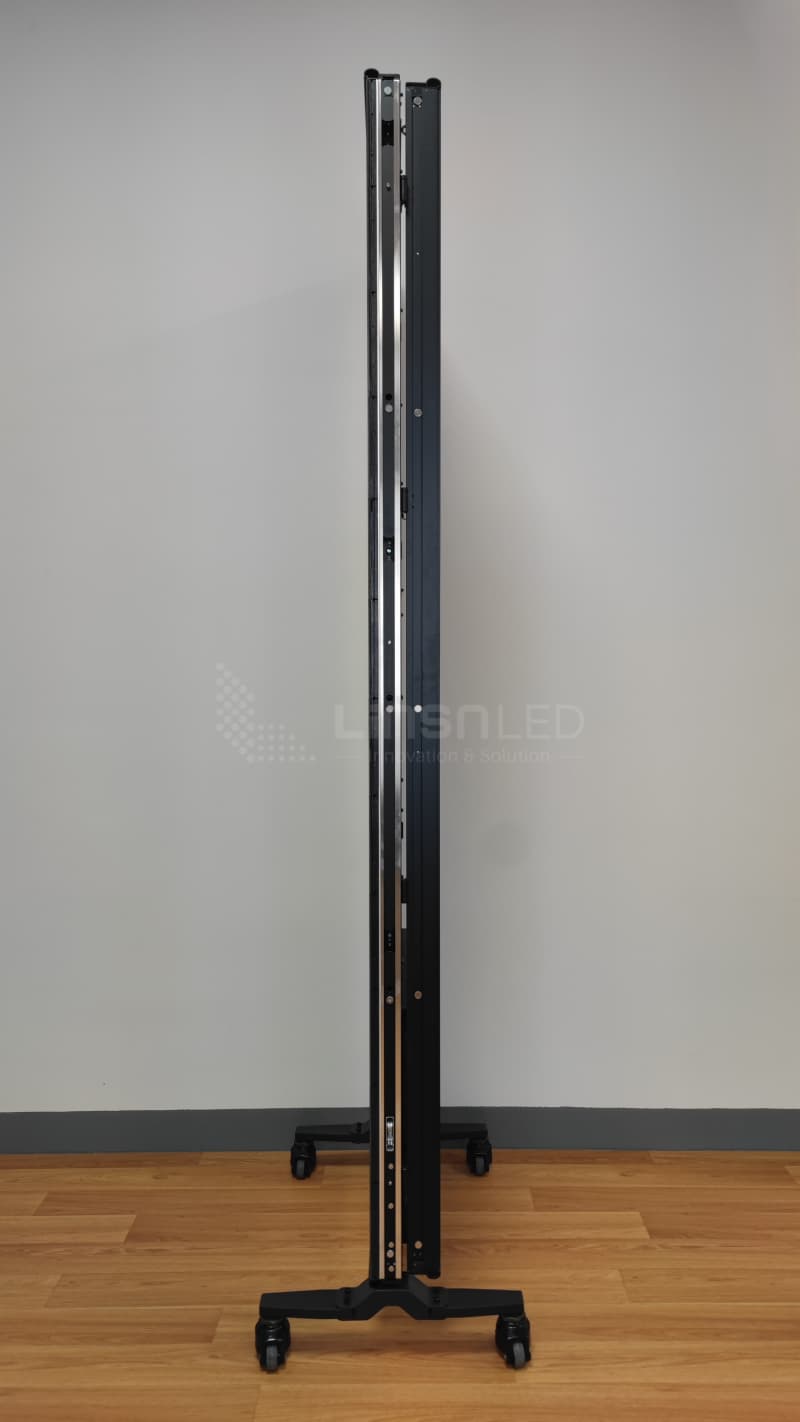

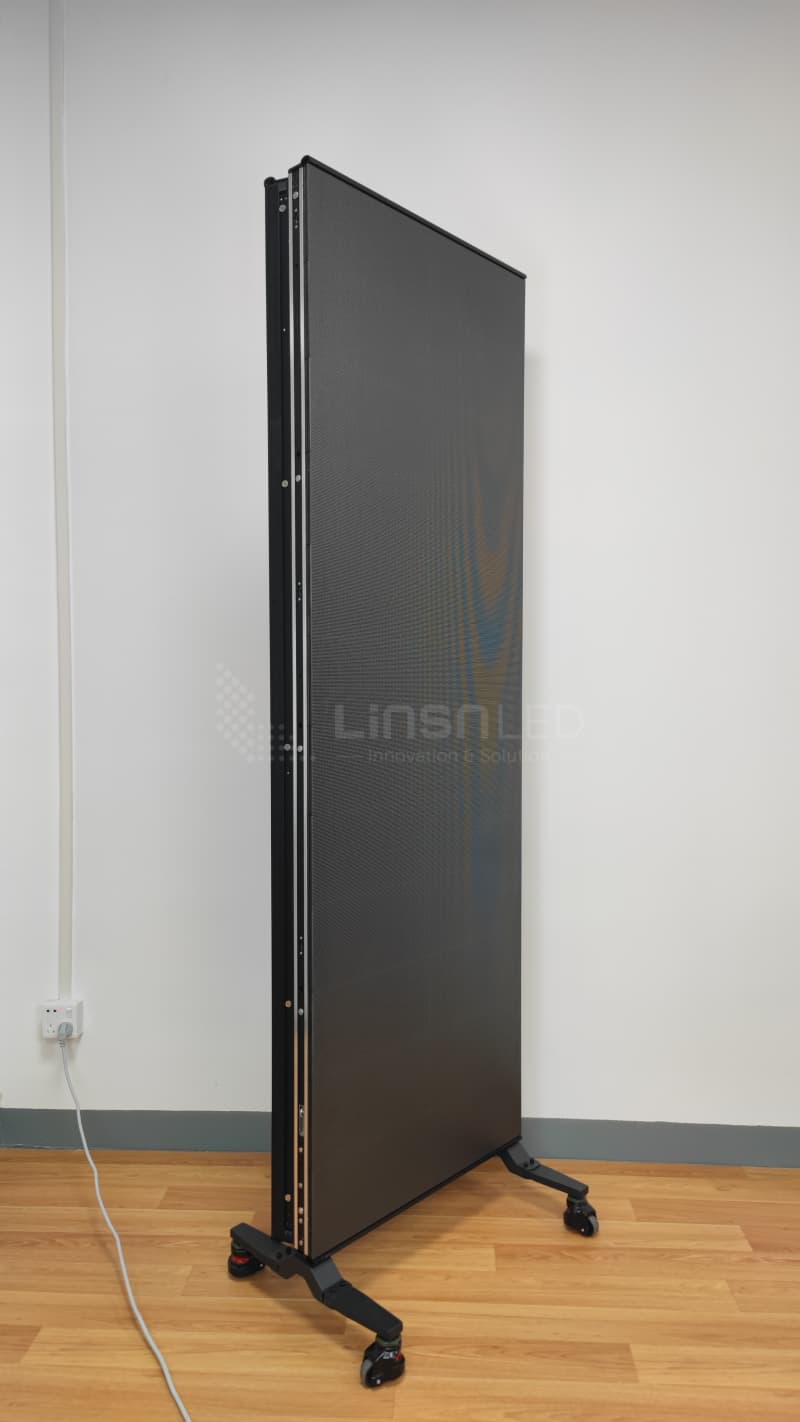

The LC60S can be used as a standalone unit or seamlessly spliced with other units to create a large, continuous display. Its flexible configuration options make it suitable for various environments. The flip-open frame design provides extra protection for the LED modules and allows for easy, seamless connection between multiple screens without the need to remove any components.
Exceptional Visual Quality
The LC60S features top-tier large-size LED chips and high-refresh ICs, offering outstanding visual performance with brightness ranging from 600–800 nits, 14–16 bit grayscale, and a refresh rate of 3840–7680Hz. This ensures consistent color uniformity, high brightness, low power consumption, and stable display quality, making it perfect for vibrant, clear visuals in any setting.

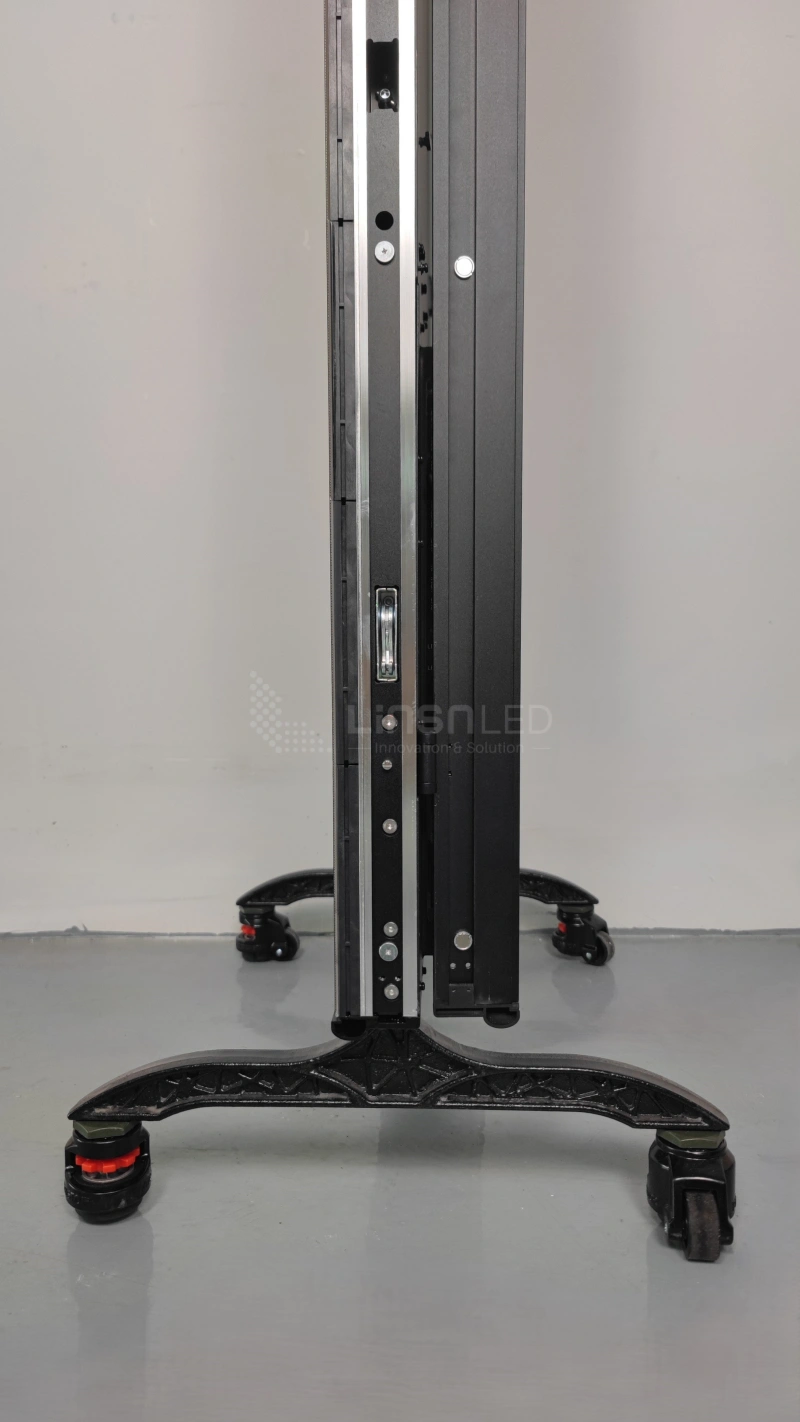

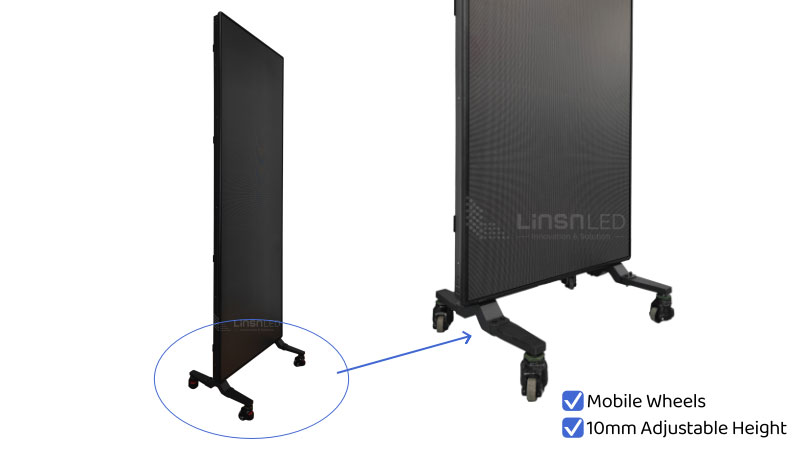

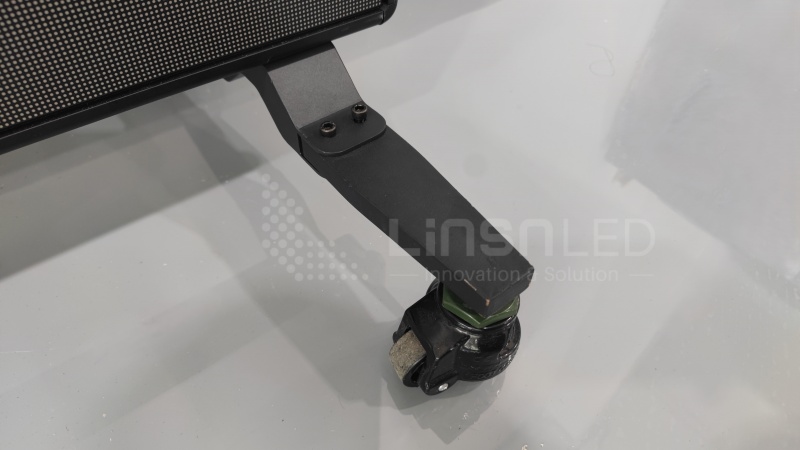

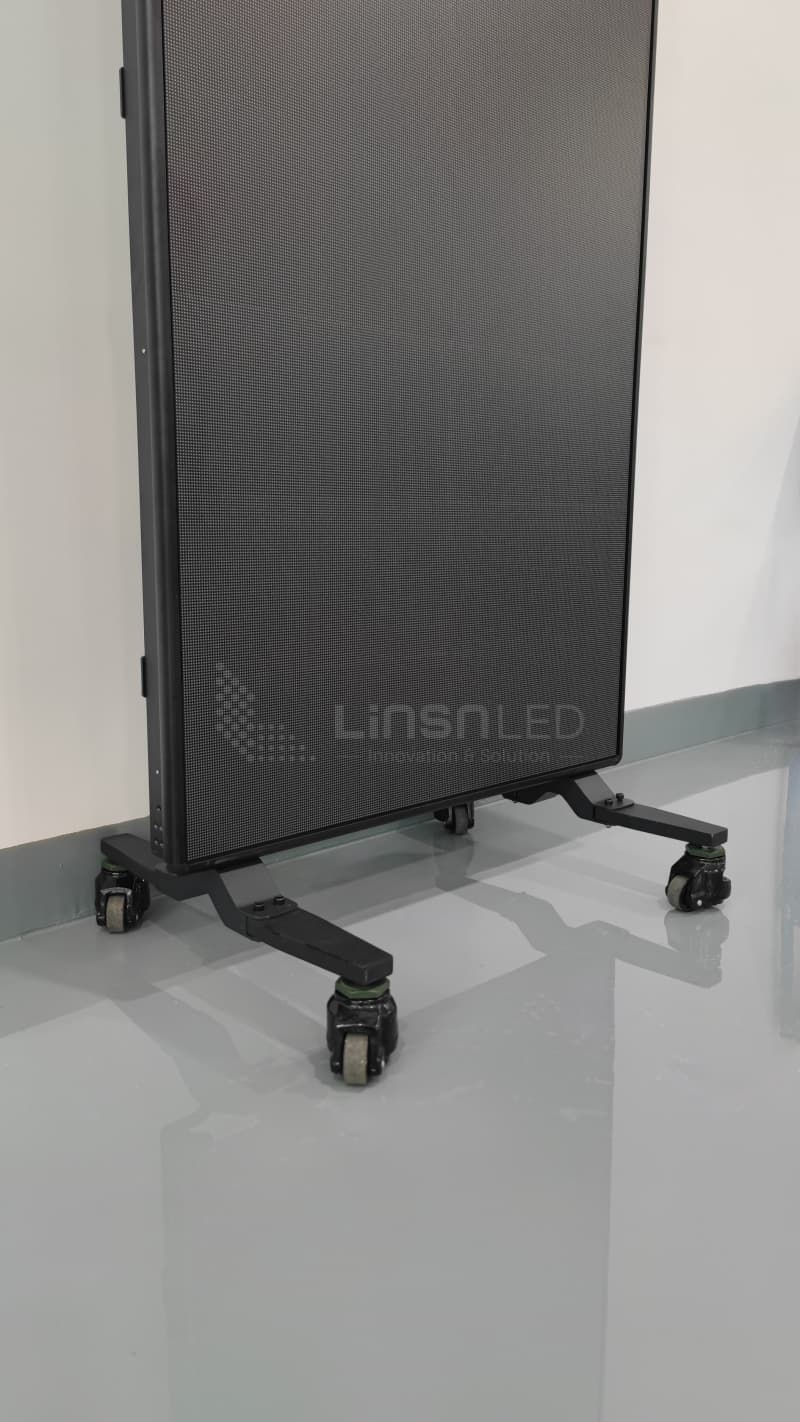

Mobile Wheels with Adjustable Height

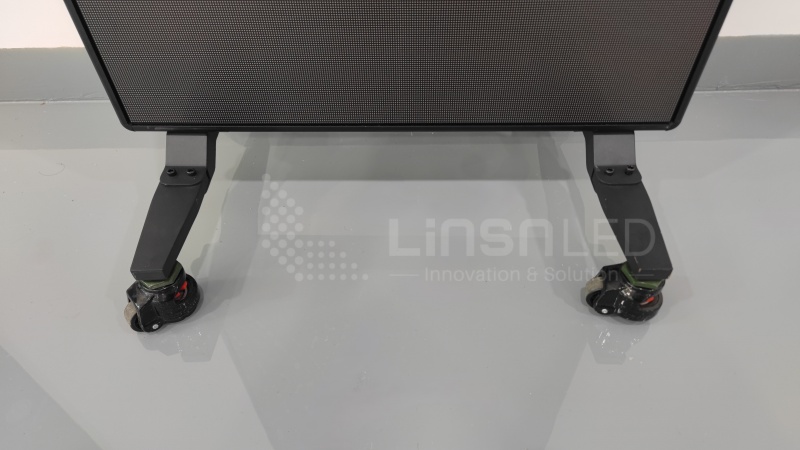

The LC60S comes with a foldable omni-directional caster base (Fuma wheels) that supports up to 50KG per wheel, allowing for easy and stable movement. Additionally, the display includes leveling support feet with 10mm of adjustable height, ensuring each screen is properly aligned when multiple units are spliced together for a smooth, unified display.

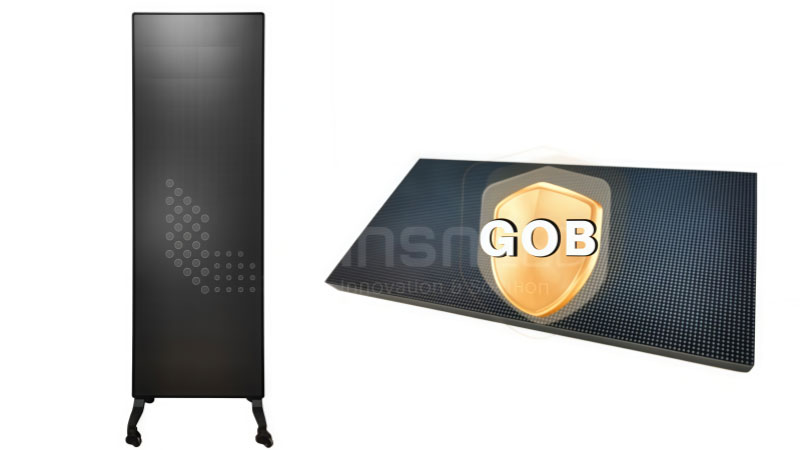

Optional GOB Protection
The LC60S offers optional GOB (Glue On Board) protection, enhancing the durability of the screen. This coating safeguards the display from liquid, moisture, dust, static, and impacts. With GOB protection, the LC60S remains reliable and safe in challenging environments, ensuring long-lasting performance.
Advanced Cloud Management
With the advanced cloud management system, you can remotely manage your content from anywhere at any time. This system allows centralized control and remote operation of your network, making it easier to manage and distribute content across multiple displays.

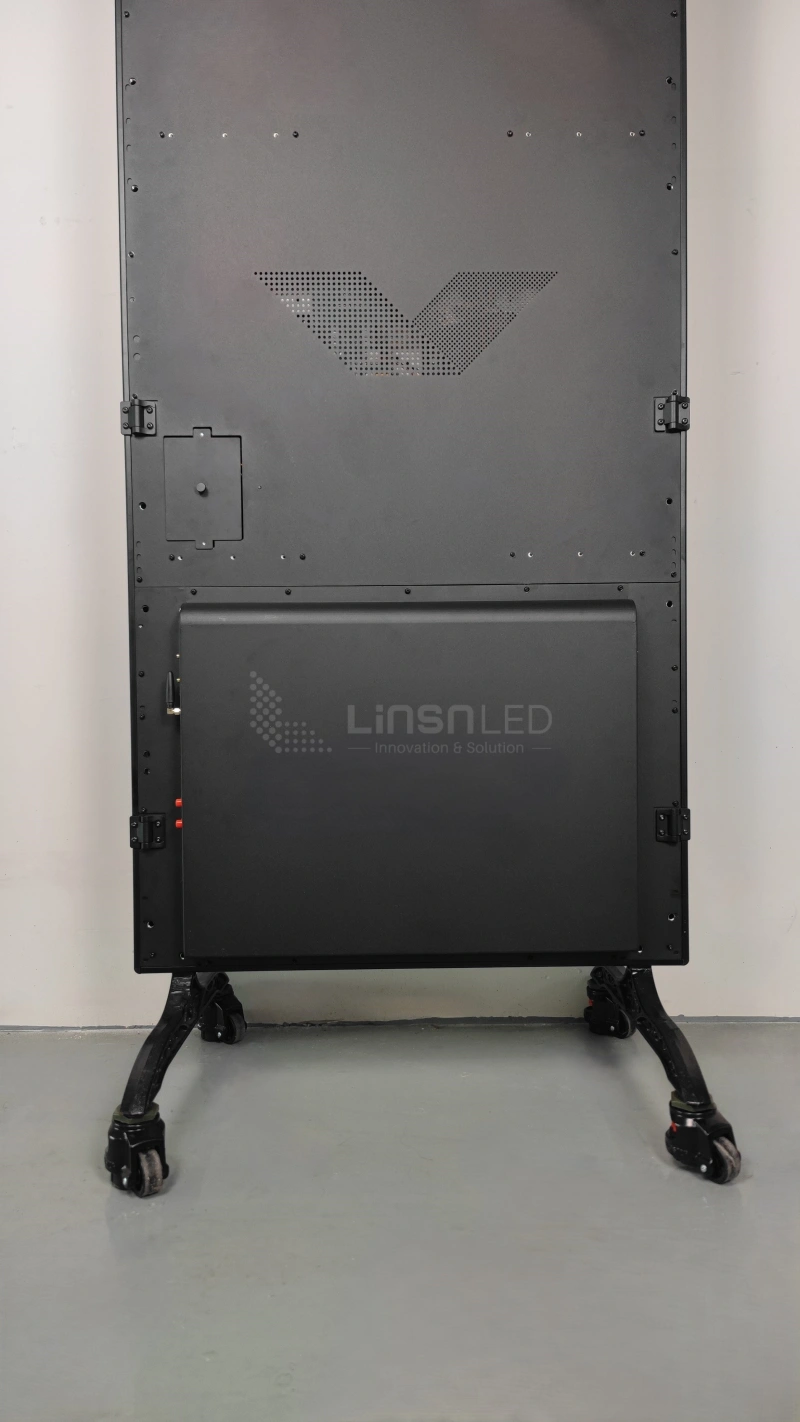

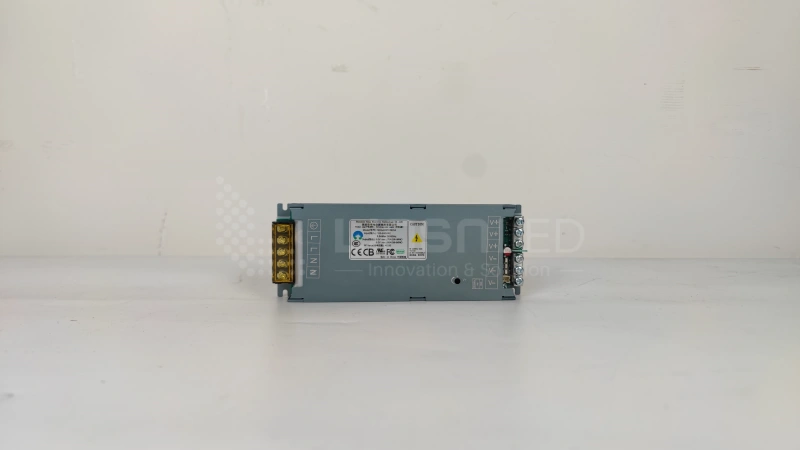

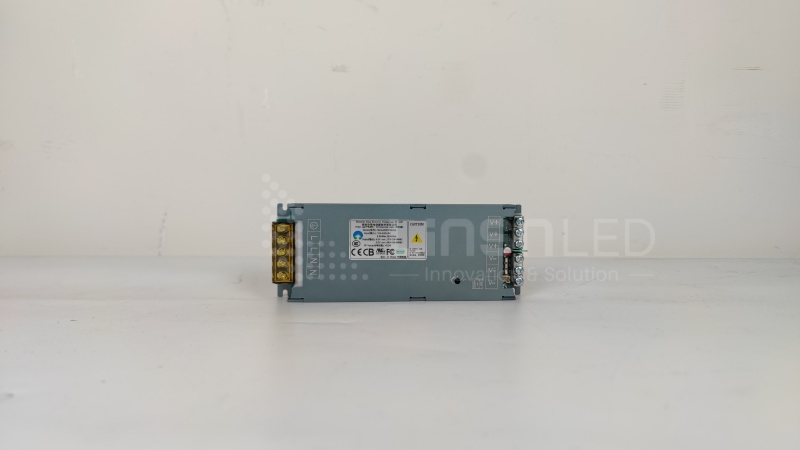

Intelligent Power Management & Efficient Cooling

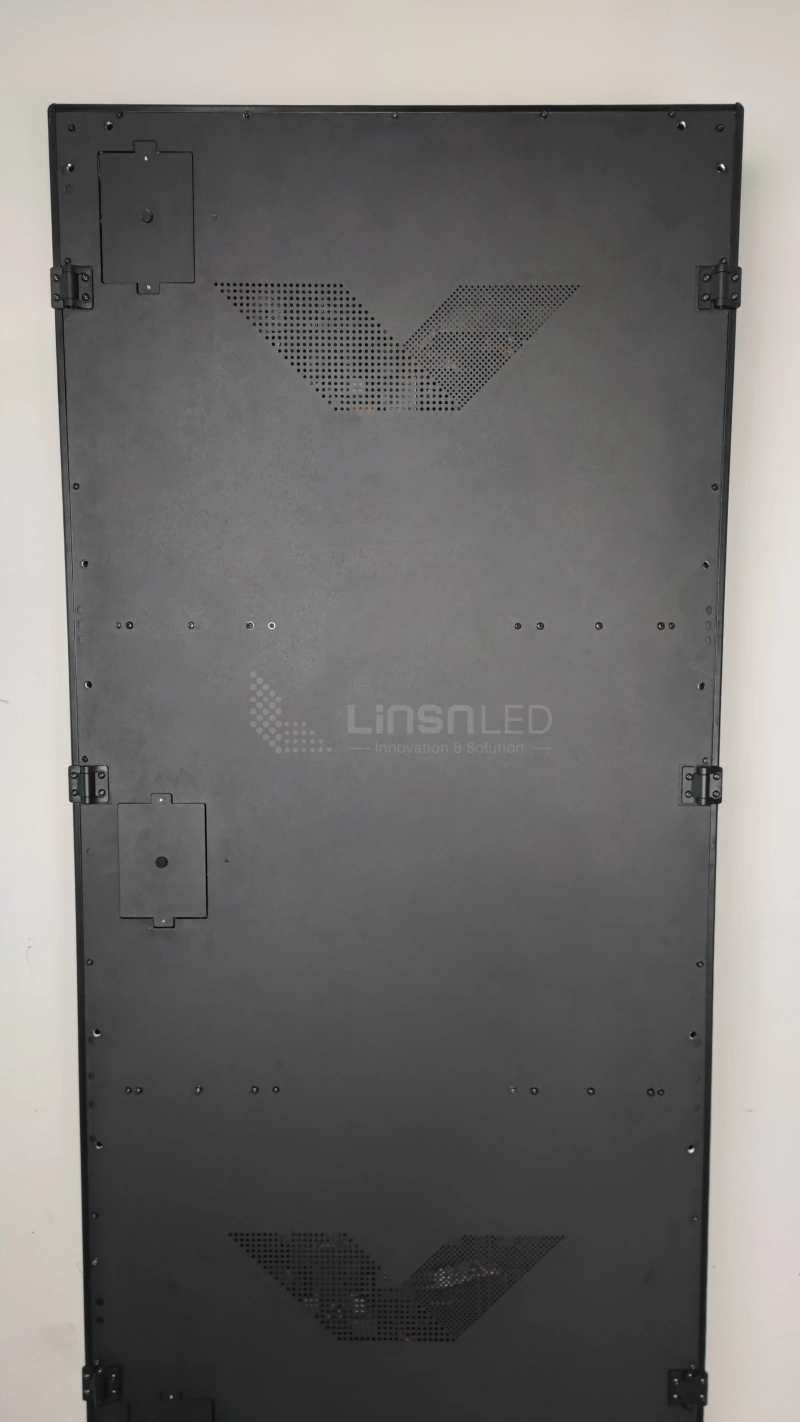

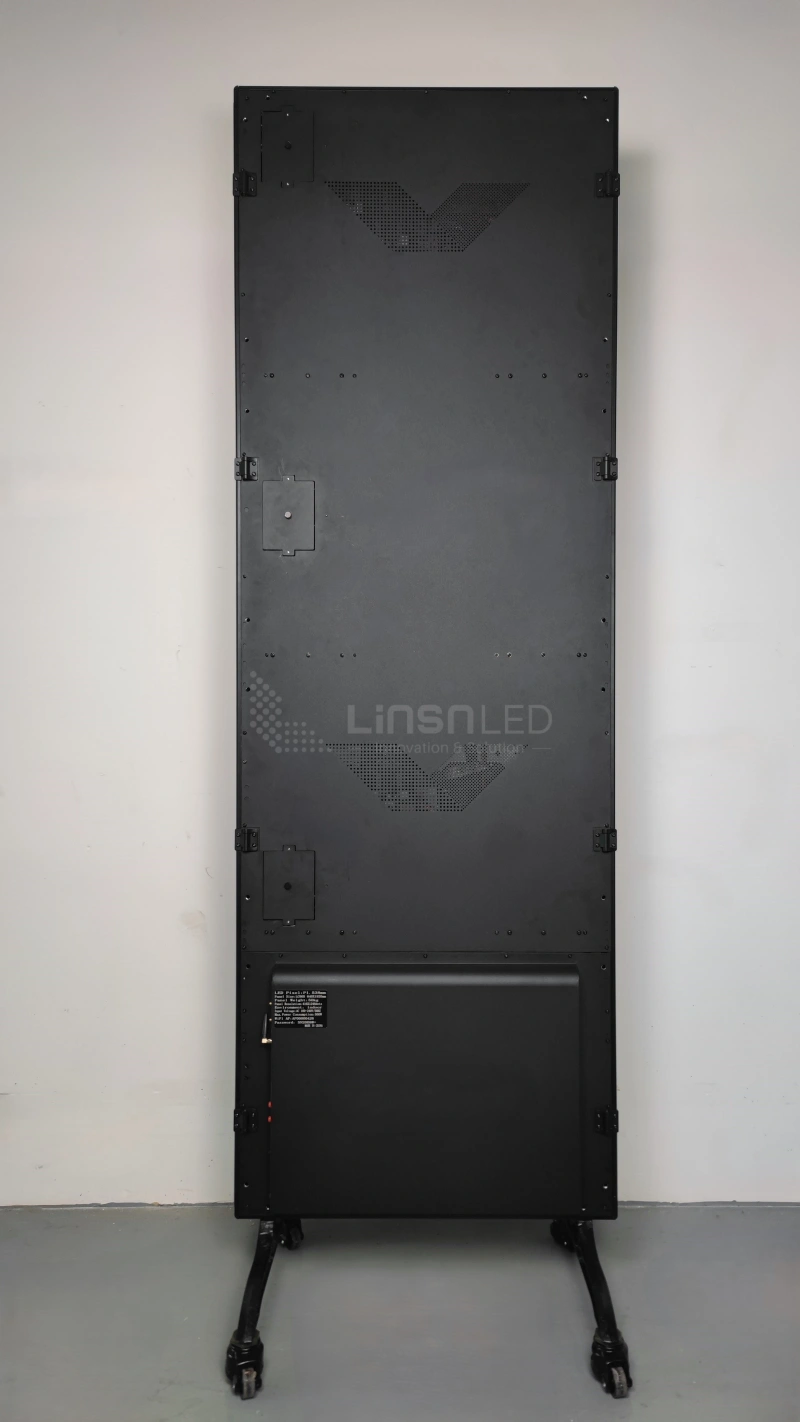

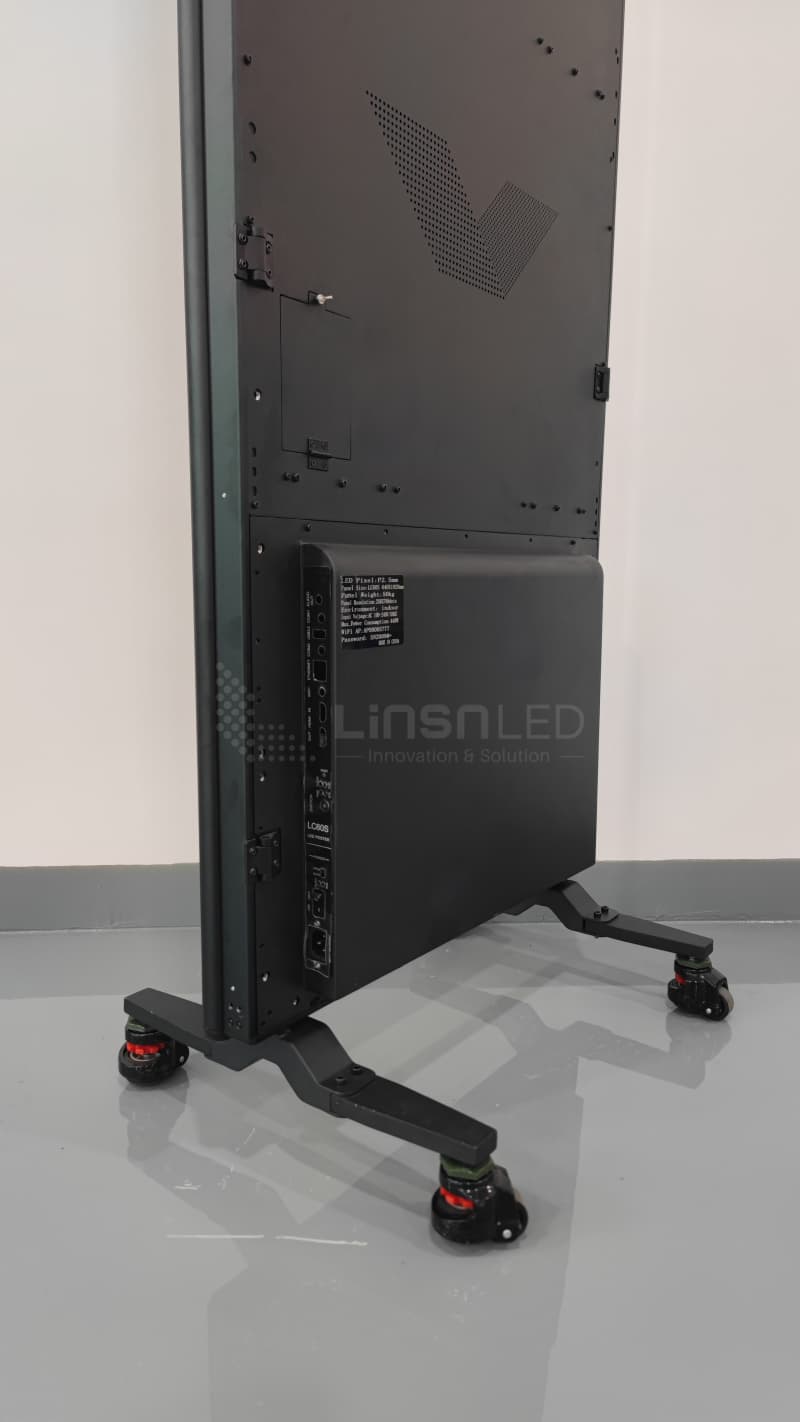

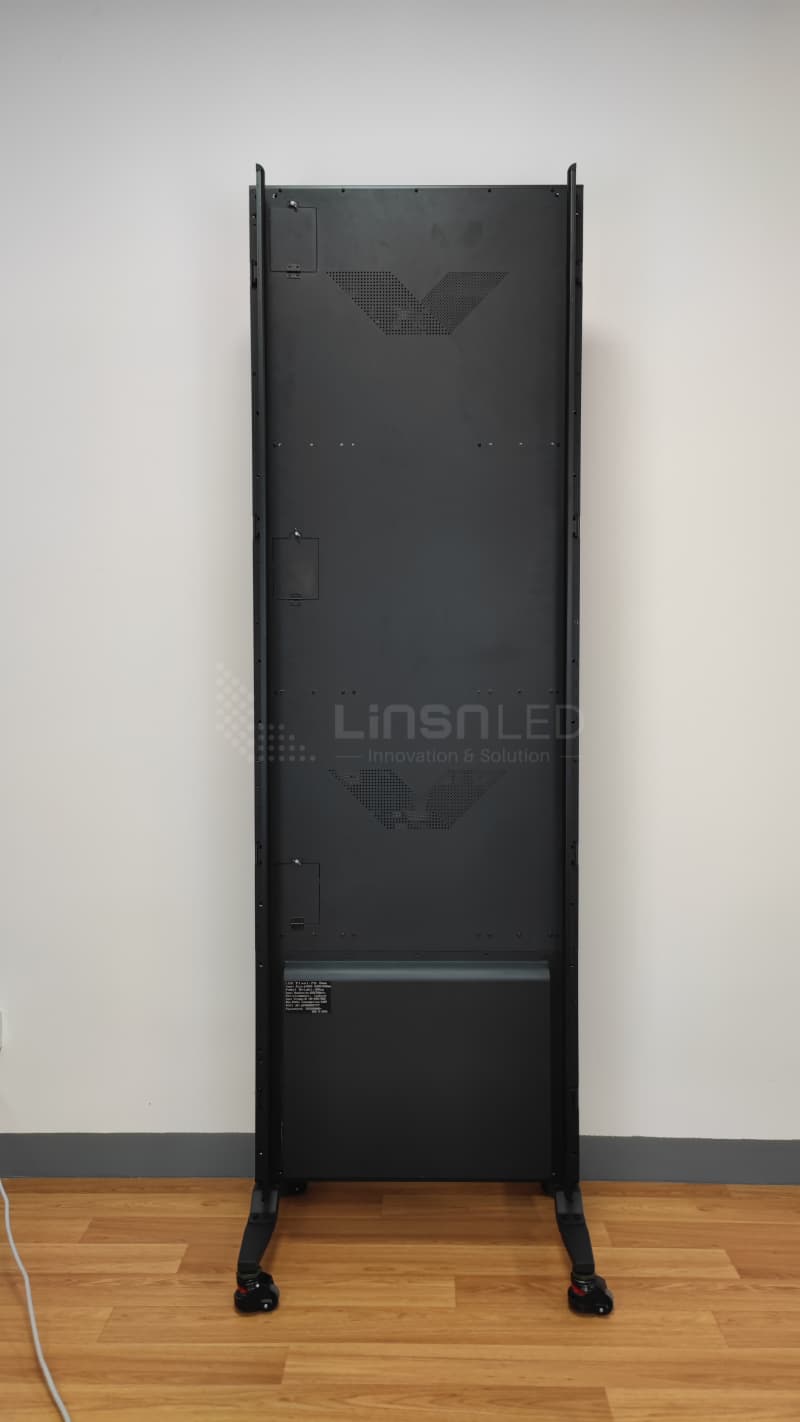

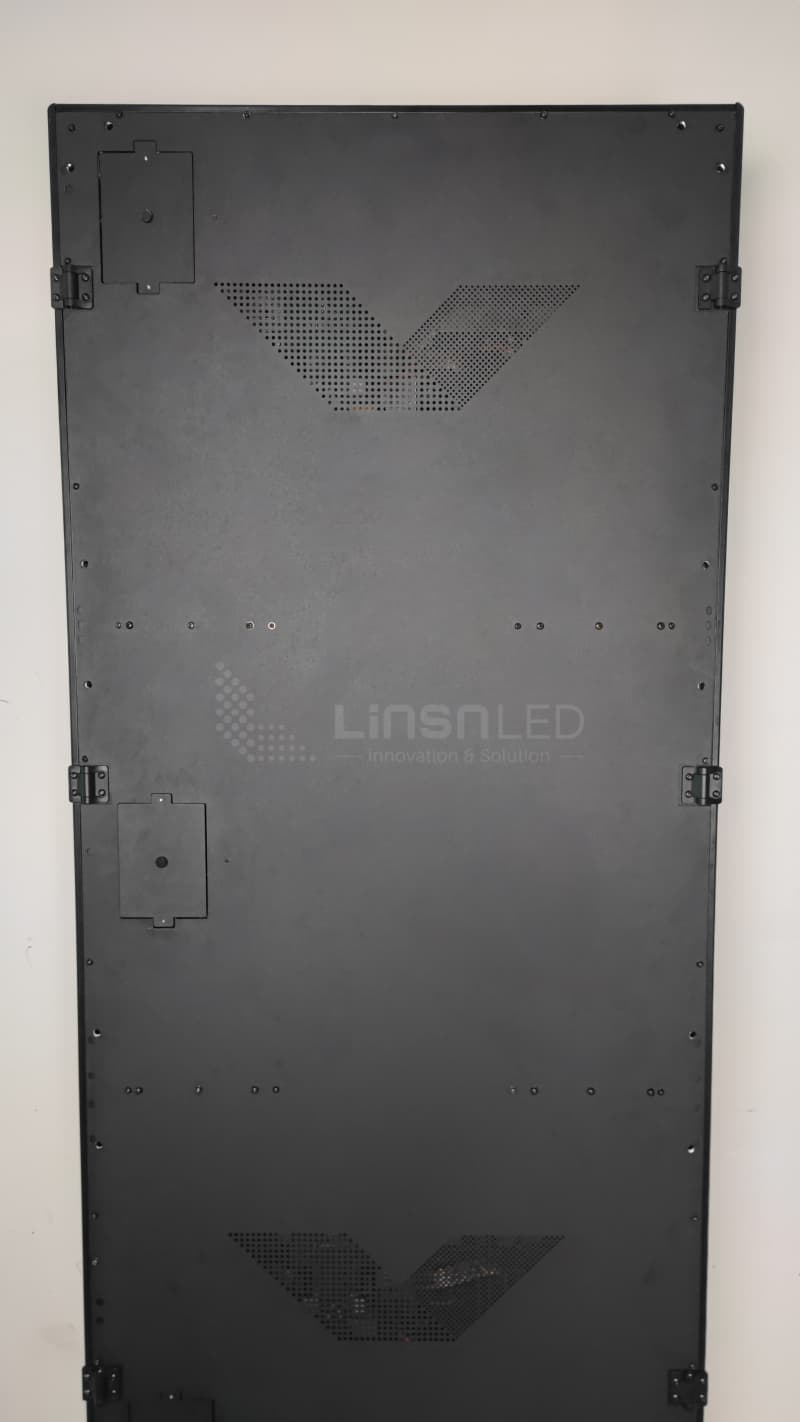

The LC60S is equipped with an intelligent power management system, which includes features such as scheduled on/off and 1W low-power standby to reduce energy consumption when the display is idle. For cooling efficiency, the back panel has convection vents at the top and bottom, ensuring stable performance and extending the lifespan of the display by maintaining optimal operating temperatures.

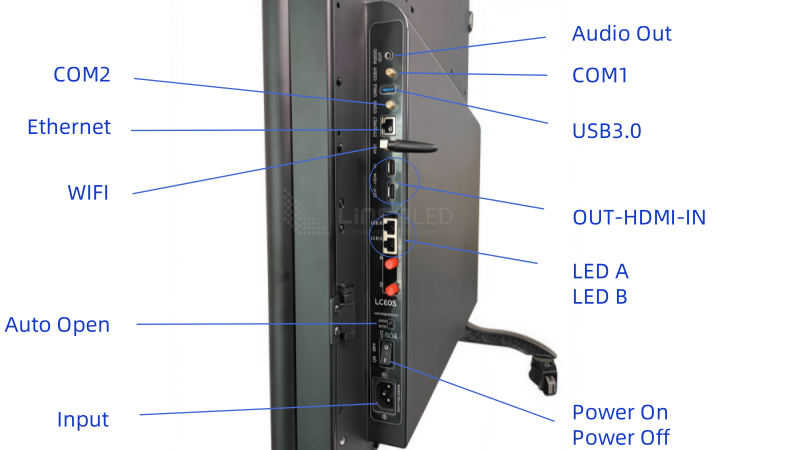

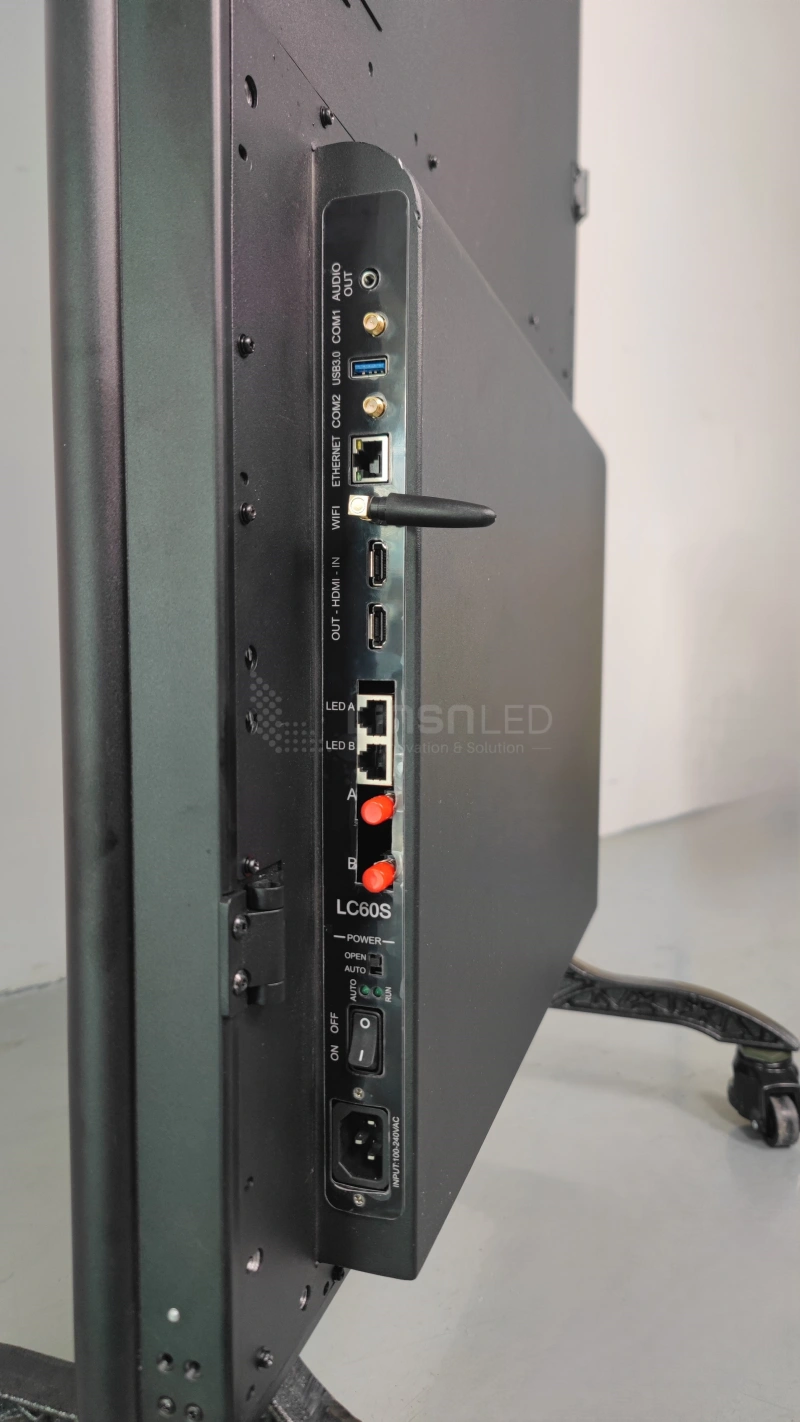

Versatile Connectivity Options
Supporting a wide range of signal inputs, the LC60S can easily connect to computers, media players, cameras, and video sources. This flexibility allows the LC60S to handle various content formats, making it suitable for a wide range of applications and offering convenience to users.
Cascade Connection for Split-Screen Mode
The LC60S supports cascade (split-screen) mode, enabling the same video content to be displayed across two or more screens simultaneously, creating dynamic, large-scale visual presentations.
Product Videos

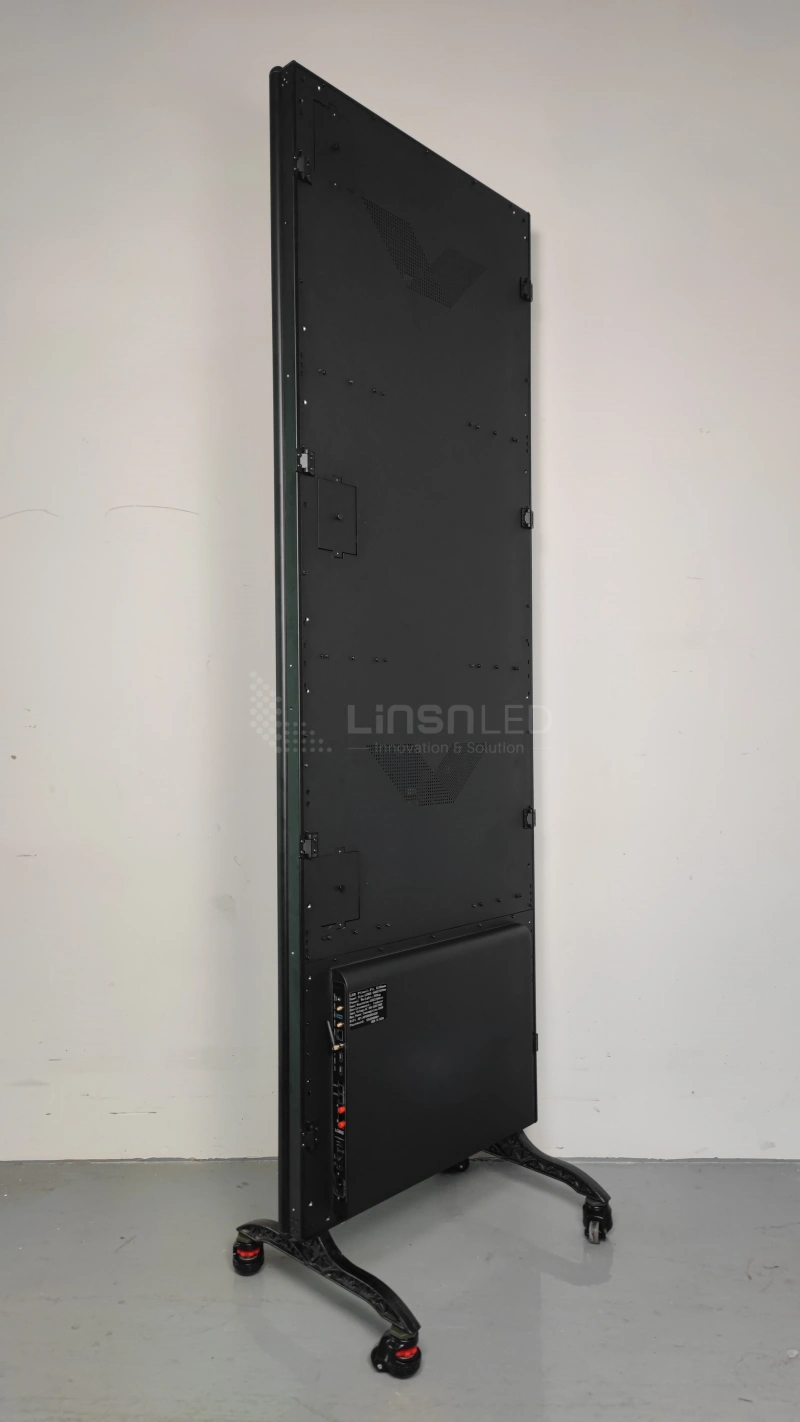

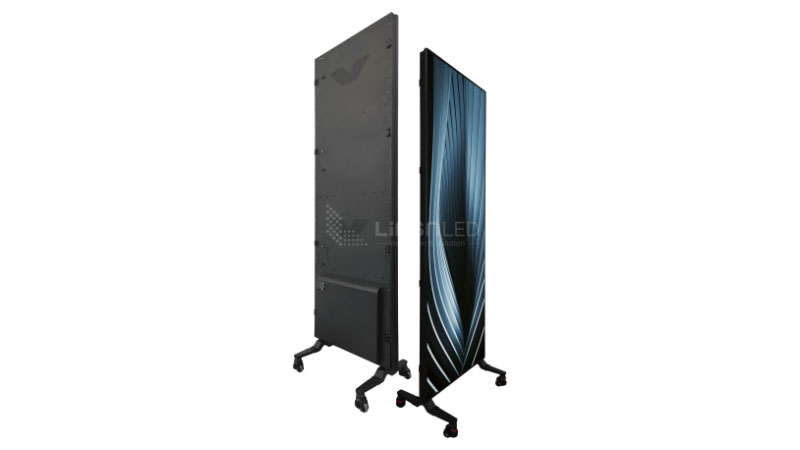

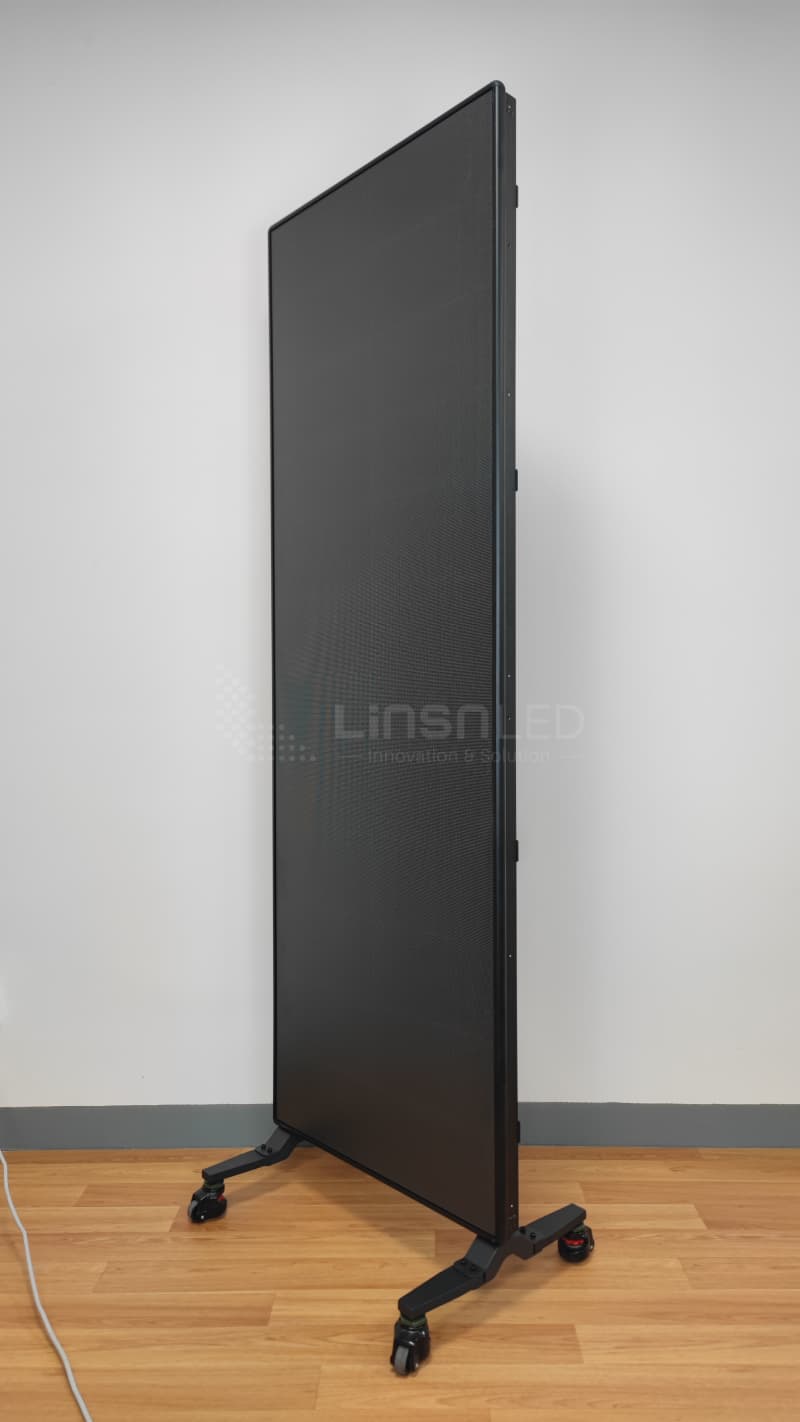

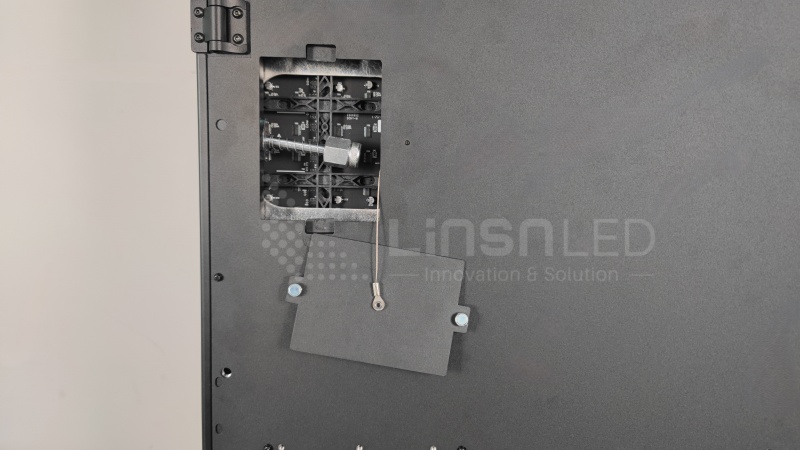

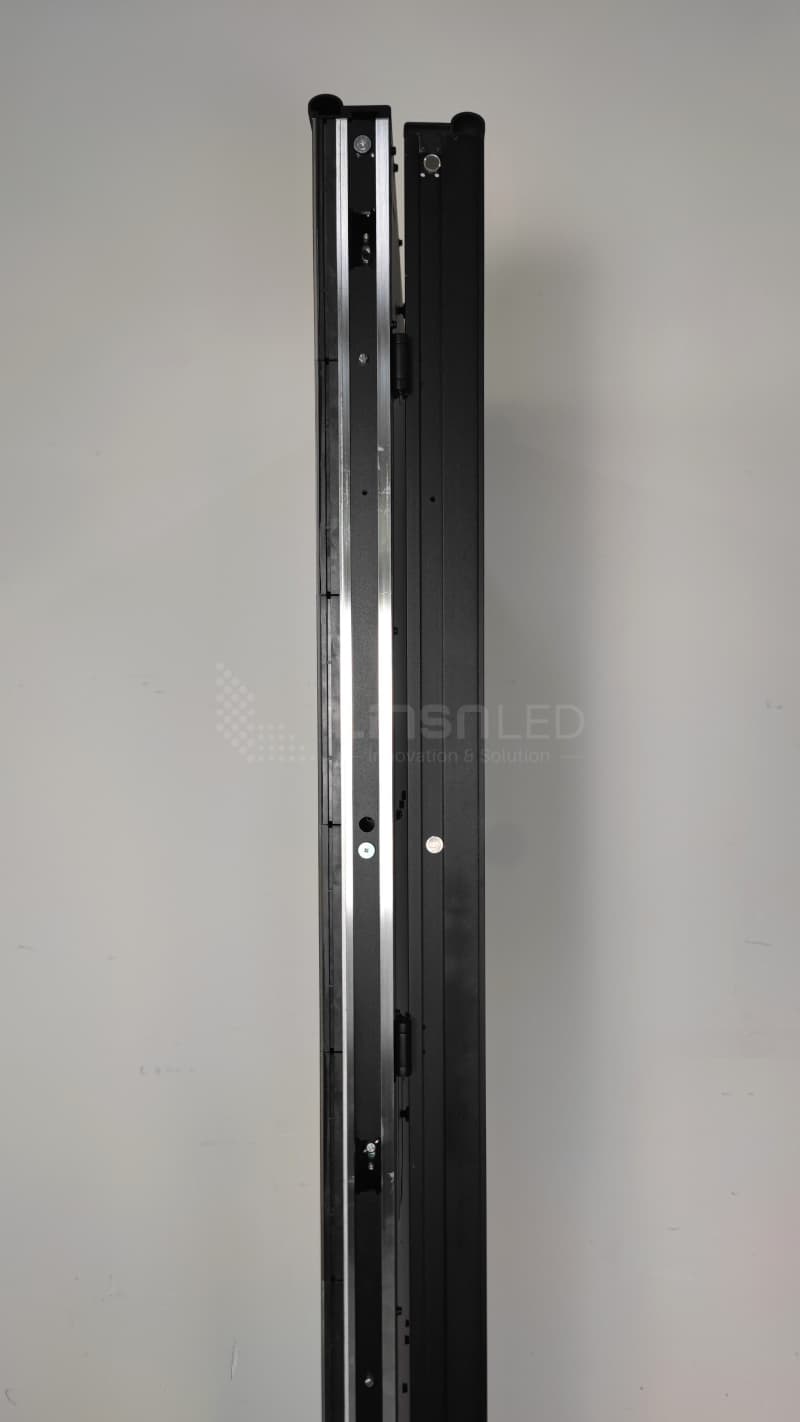

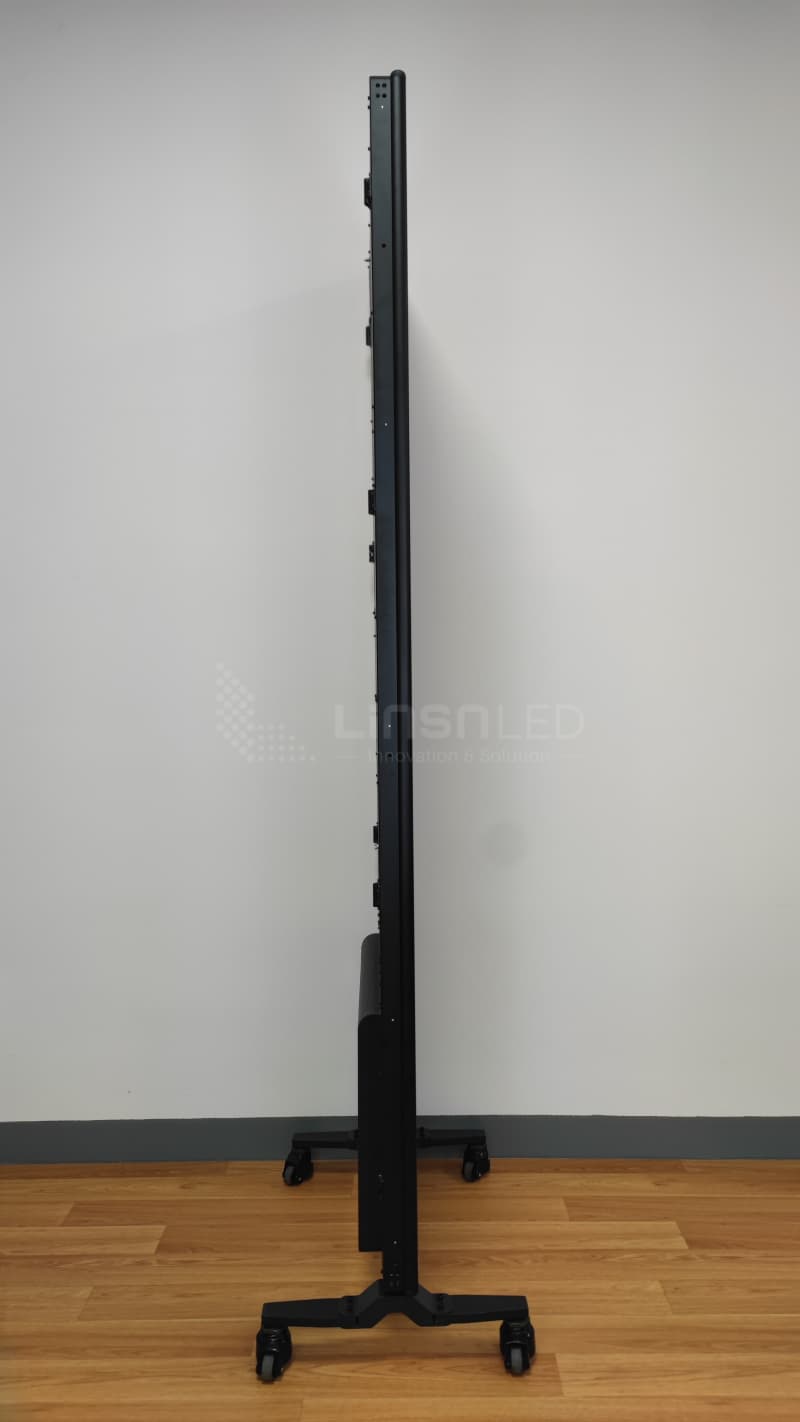

Product Images
Specification
| LC60S Series | |||||
| LED Type | SMD1010 | SMD1515 | SMD1515 | SMD1515 | SMD2020 |
| Pixel Pitch (mm) | P1.25 (GOB) | P1.538 (GOB) | P1.86 | P2 | P2.5 |
| Product Dimensions (W×H×D) / (mm) | 670 × 2073 × 465 | ||||
| Display Size (W×H) / (mm) | 640 × 1920 | ||||
| Product Resolution | 512 x 1536 | 416 x 1248 | 344 x 1032 | 320 x 960 | 256 x 768 |
| Product Weight (kg) | 47 | ||||
| Product Material | Integrated CNC-molded aluminum alloy cabinet | ||||

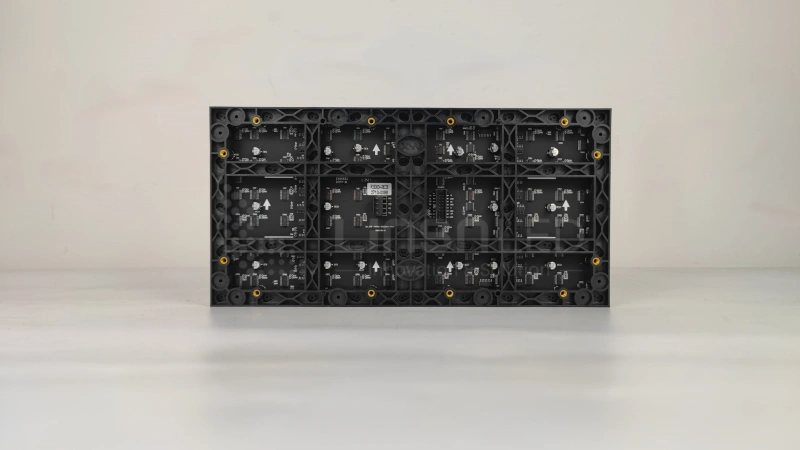

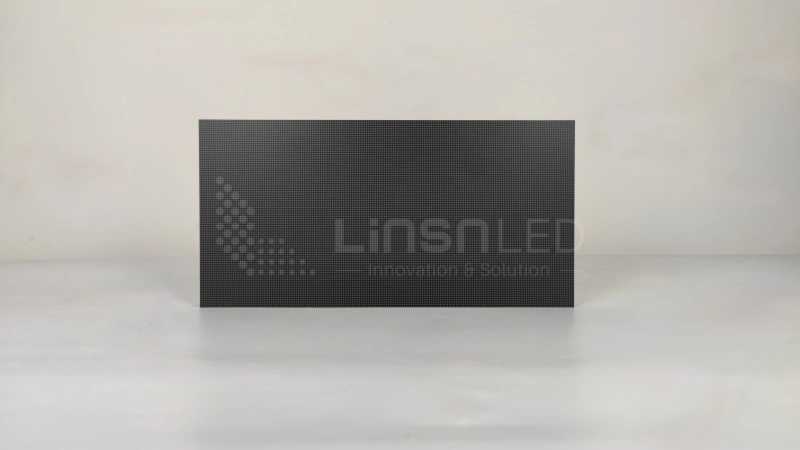

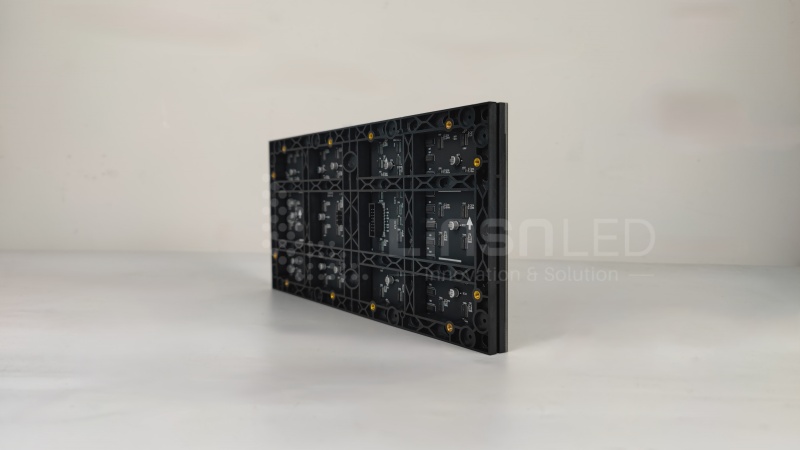

| Module Size (W×H) / (mm) | 320 × 160 | ||||
| Brightness (nit) | 600 | ||||
| Refresh Rate (Hz) | 3840 | ||||
| Color Temperature (K) | 9000 ± 1000 | ||||
| Viewing Angle (H/V) (°) | 140 / 140 | ||||
| Driving Method | 1/64 Scan | 1/52 Scan | 1/43 Scan | 1/40 Scan | 1/32 Scan |
| AC Operating Voltage (V) | AC 200~240 (wide voltage optional) | ||||
| Power Consumption (Max/Average) (W/set) | 490 / 163 | ||||
| Storage Temperature (°C) | -40 ~ +60 | ||||
| Operating Temperature (°C) | -10 ~ +40 | ||||
| Storage Humidity (RH) | 10% ~ 90% | ||||
| Operating Humidity (RH) | 10% ~ 90% | ||||
| Protection Level (Front/Rear) | IP40 / IP20 | ||||
| LED Lifespan (H) | 100,000 | ||||
| Module Maintenance | Rear Maintenance | ||||
| Power & Other Maintenance | Rear Maintenance | ||||
| Seamless Splicing | Supported | ||||
| Installation Method | Hanging / Wall-mounted (optional), Floor Stand, Splicing | ||||
