The NovaStar A10s Pro is a compact, powerful tool that helps LED screens perform better, stay stable, and adapt to complex environments.
Choosing the right receiving card often gets overlooked. But in real projects, it can make or break the entire display. If you’ve ever dealt with color drift, uneven brightness, or unexpected downtime, you know what we mean.
Let’s dive into what makes the A10s Pro stand out.
1. Introduction to Novastar A10s Pro

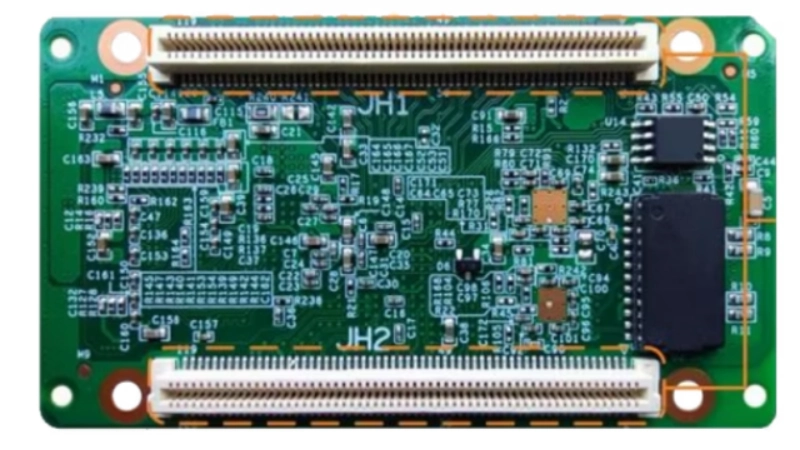

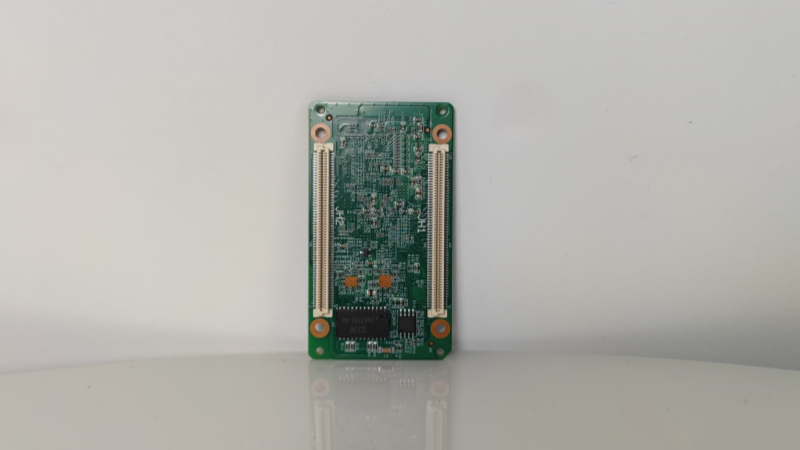

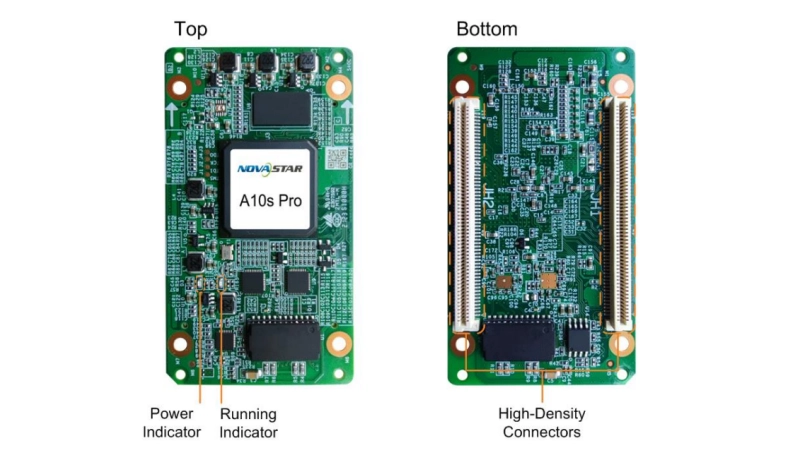

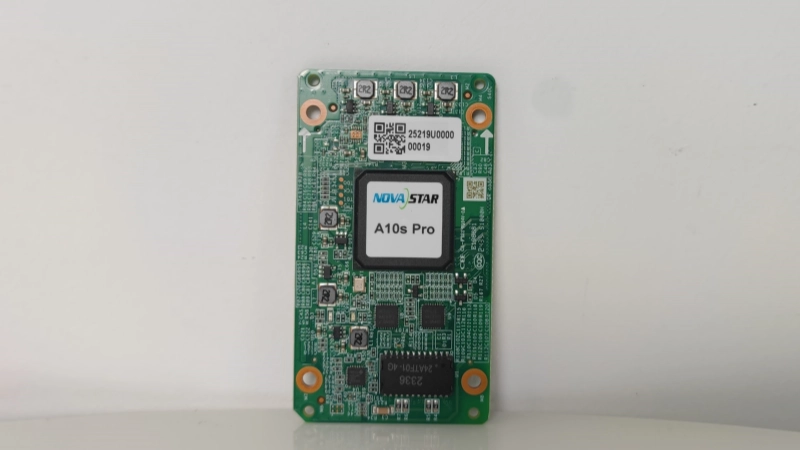

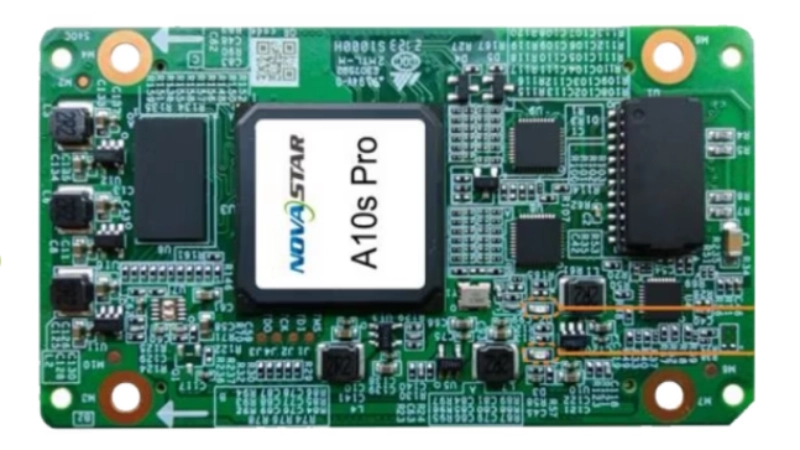

The NovaStar A10s Pro is a small-form receiving card built for professional LED display systems. It’s designed to handle high-resolution content while keeping the system stable, responsive, and easy to manage. Despite its size, it comes with a full range of features that support modern display needs—from live events to control rooms and virtual production stages.

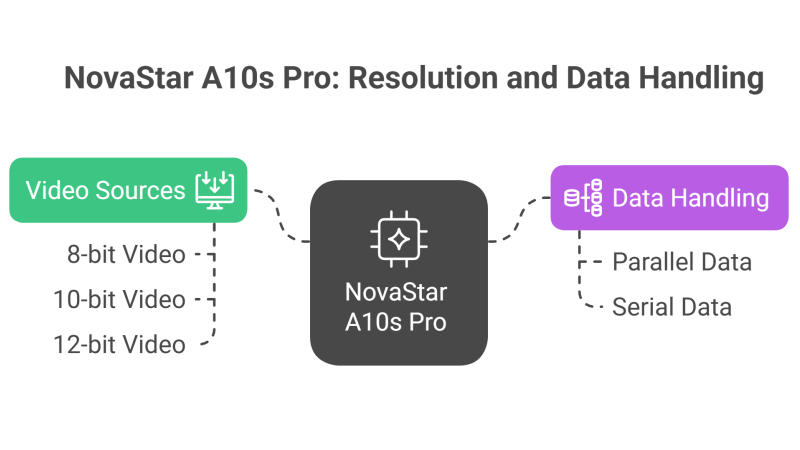

This card supports up to 512×512 resolution at 60Hz for 8-bit and 10-bit video sources. For 12-bit video, it handles 512×256 at 60Hz. It works with both parallel and serial data types, supporting up to 128 groups of serial data, making it compatible with most LED modules.
Beyond specs, what makes the A10s Pro stand out is its focus on real-world use. It’s built to adjust on the fly, recover quickly, and maintain image quality even when conditions change. Whether it’s a heat shift, a power fluctuation, or a sudden module swap, this card helps the display adapt without downtime or visible impact.
It also integrates smoothly into the NovaStar system, including controllers like MCTRL4K and software like NovaStar SmartLCT. That means faster setup, easier calibration, and fewer surprises on site.
In short, the A10s Pro is made for people who want their LED screens to work hard—without making the job harder.
2. Features That Improve Visual Performance
The NovaStar A10s Pro isn’t just about getting a signal from point A to point B. It actively improves what shows up on the screen. That’s why it’s used in places where visual quality really matters—broadcast studios, stage events, high-end retail, and virtual production.

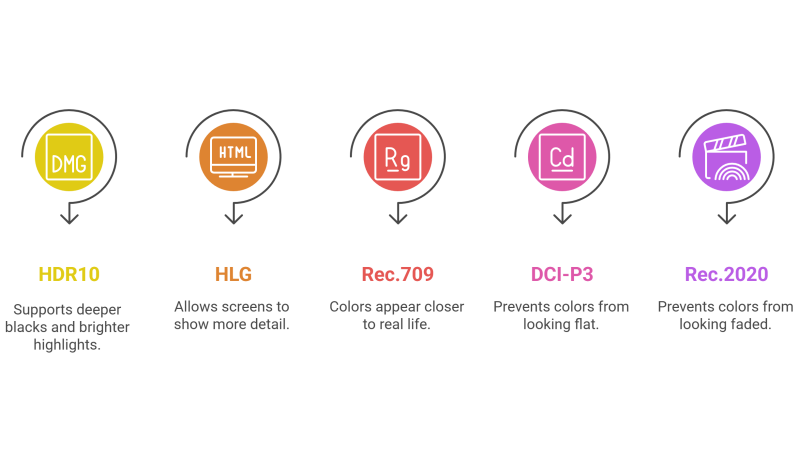

2.1 HDR and Wide Color Range
This card supports both HDR10 and HLG, allowing screens to display deeper blacks, brighter highlights, and more detail in between. It also works with multiple color gamuts, including Rec.709, DCI-P3, and Rec.2020. That means colors look closer to real life, not flat or faded.

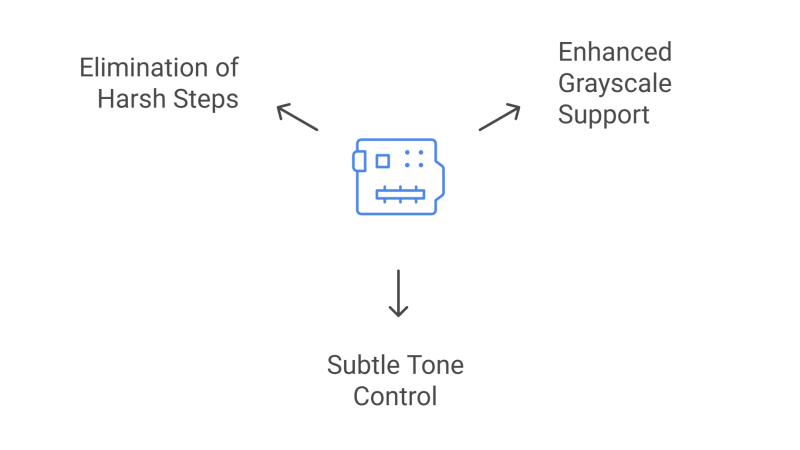

2.2 Full-Grayscale Calibration and 22bit+ Detail
Low-brightness image quality is often where LED screens struggle the most. The A10s Pro solves this with 22bit+ grayscale support, giving the screen more subtle tone control, especially in dark scenes. No harsh steps, no sudden brightness jumps.
It also supports full grayscale calibration, meaning it can adjust the output for each level of brightness—not just a few presets.

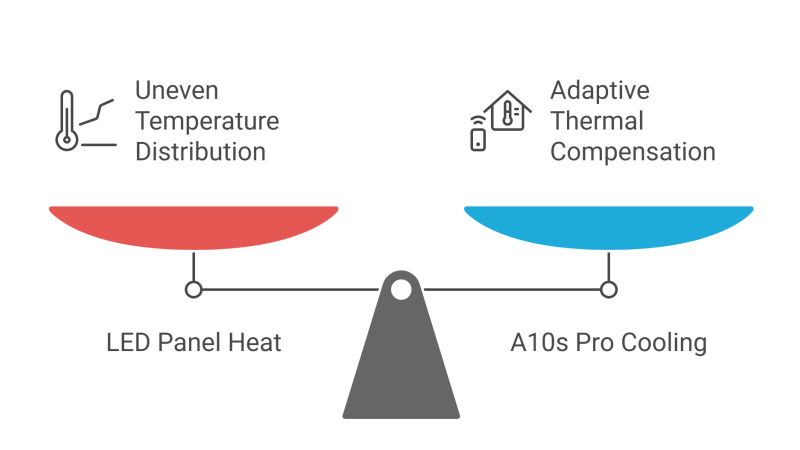

2.3 Adaptive Thermal Compensation
LED panels heat up during operation. The temperature isn’t always even, and that can lead to color shifts from one area of the screen to another. The A10s Pro uses adaptive thermal compensation to reduce this effect. It monitors heat and adjusts color output accordingly, keeping the image more consistent across the whole display.
2.4 Dynamic Booster for Better Contrast
The Dynamic Booster feature works in real time to improve contrast and fine details in each frame. It analyzes incoming content and adjusts output dynamically—making highlights pop, shadows feel deeper, and text sharper. And because it does this efficiently, it helps reduce power usage without hurting performance.

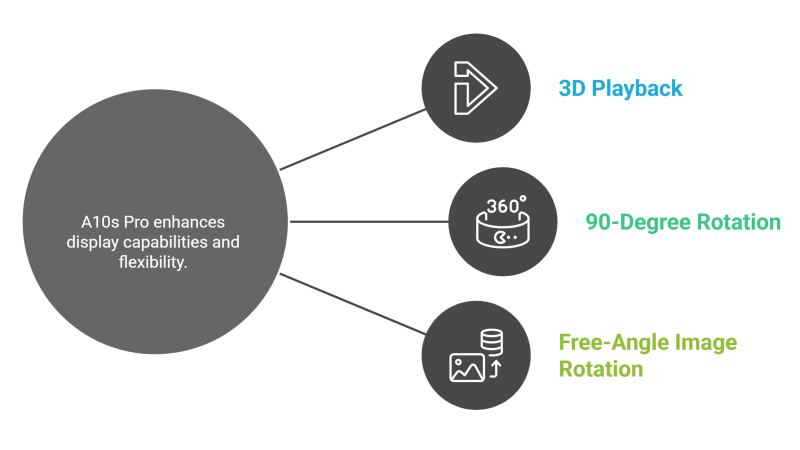

2.5 3D and Rotation Support
The A10s Pro supports 3D playback when used with compatible controllers. For creative installations, it also allows 90-degree rotation and free-angle image rotation.
3. Key Functions: Setup, Monitoring, and Redundancy
A big part of what makes the NovaStar A10s Pro valuable isn’t just what shows up on the screen—it’s what happens behind the scenes. This card comes with smart tools that make setup faster, maintenance easier, and operation more stable, even under pressure.
3.1 Auto Module Calibration
When you replace a module, the system doesn’t always look the same. Color, brightness, and consistency can shift. The A10s Pro solves this with auto calibration. If the new module has flash memory, the card reads stored calibration data on boot and applies it right away. You don’t need to manually recalibrate or reprogram—just plug it in, and it works.
3.2 Flash Management and One-Click Configuration
The card can store and manage data directly from the LED module’s flash. That includes calibration coefficients and module IDs. With one-click cloning, you can copy the firmware and settings from one cabinet to others. It saves a lot of time during large installations or maintenance.
3.3 Mapping 1.1 for Cabinet-Level Info
Troubleshooting LED screens can be a nightmare when you don’t know where each receiving card sits. The A10s Pro supports Mapping 1.1, which lets each cabinet show info like the controller number, receiving card ID, and port location. No need to trace cables or guess what’s connected where.
3.4 Real-Time Monitoring
The A10s Pro keeps an eye on itself. It tracks temperature, voltage, and even bit errors on the Ethernet port. If something starts to go wrong, you get early warnings before it turns into a bigger problem. It also detects the status of dual power supplies—helpful for rental or mission-critical setups.
3.5 Redundancy Built In
Things fail. It’s part of the job. What matters is how quickly the system recovers. The A10s Pro supports dual-card backup—if the main card fails, the backup takes over without interrupting the display. It also supports loop backup through dual Ethernet lines, so if one cable fails, the other keeps data flowing.
Beyond that, it stores two copies of firmware, and keeps separate backups of configuration and calibration data. If one version becomes corrupted, you can switch back instantly.
4. NovaStar A10s Pro Price and Resources
The NovaStar A10s Pro is widely available and competitively priced, but pricing can vary depending on region, distributor, and project scale.
If you want a quick way to check the current market price or compare it with similar models, LedInCloud offers a simple LED Screen Cloud Platform for that. You can search and compare prices of LED receiving cards from different brands—including NovaStar, Colorlight and Huidu.
LedInCloud also provides a free download section. You can find the A10s Pro specification file, SmartLCT Download, and firmware resources in one place. Just the files you actually need to set up or maintain your screen.
You can register LedInCloud to explore pricing tools and get the latest downloads.
5. Where the A10s Pro Fits Best?
The NovaStar A10s Pro is used in a wide range of LED setups—and for good reason. It’s not just about features. It’s about how those features solve real problems.
In rental projects, speed matters. You need a screen up fast, and it has to stay stable during a show. The A10s Pro helps with that. It supports auto calibration when modules are swapped. It backs up signal paths with loop redundancy. If a cable disconnects, the image keeps playing. No interruptions.
In fixed installations, reliability matters more than anything. Whether it’s a shopping mall display or a control room wall, downtime isn’t acceptable. With real-time monitoring of voltage, temperature, and network quality, the A10s Pro helps catch issues early.
It also performs well in xR stages and broadcast environments. Low latency keeps visuals in sync with cameras. Shutter-fit technology avoids flicker during filming. And its grayscale performance makes a difference when screens are used as lighting sources or backgrounds.
This card also fits into fine-pitch LED walls, where color and brightness uniformity really matter. With HDR support and pixel-level calibration, the screen looks smooth and consistent—even up close.
If your LED project needs stability, speed, and solid image performance, the A10s Pro is a smart, low-hassle solution.
6. FAQ
What resolution does the A10s Pro support?
It supports up to 512×512 at 60Hz for 8-bit and 10-bit video sources, and 512×256 at 60Hz for 12-bit video. That’s more than enough for most rental and fine-pitch screens.
Does it work with HDR content?
Yes. The NovaStar A10s Pro supports HDR10 and HLG, along with wide color gamuts like Rec.709, DCI-P3, and Rec.2020.
Can I use it for 3D and rotated displays?
You can. The card supports 3D playback and both 90° and free-angle image rotation. That makes it flexible for creative layouts and immersive spaces.
How does it handle module replacement?
If the module has flash memory, the A10s Pro will read calibration data automatically. No need to recalibrate or reconfigure manually.
What happens if a receiving card fails?
The A10s Pro supports dual-card backup. If one card fails, the backup takes over instantly. It also supports loop redundancy to keep the screen running if a cable is disconnected.
