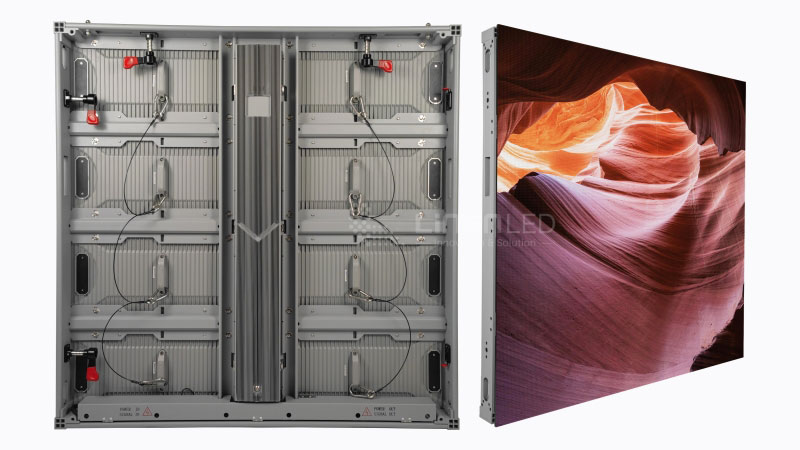

OF1000 Series
Reliable Outdoor LED Display
- IP65 Full Protection

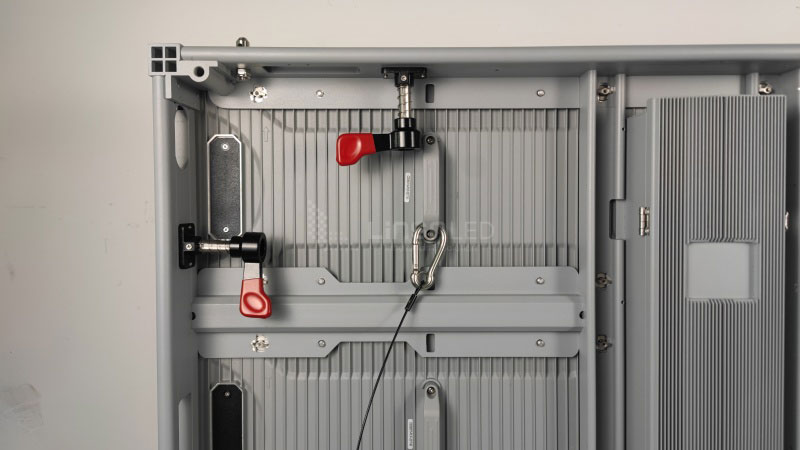

- Tool-Free Fast Lock System
- Elegant Sony Gray Finish

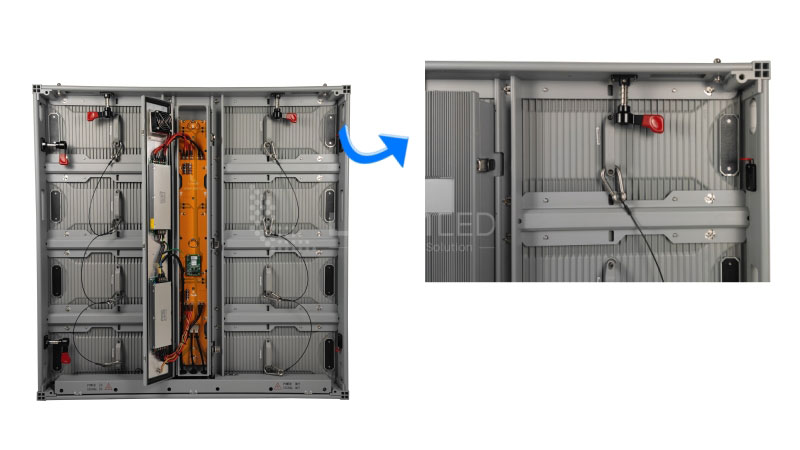

- Dual Maintenance Access
- Seven-Layer Heat Dissipation Structure
- Common Cathode Power-Saving Technology

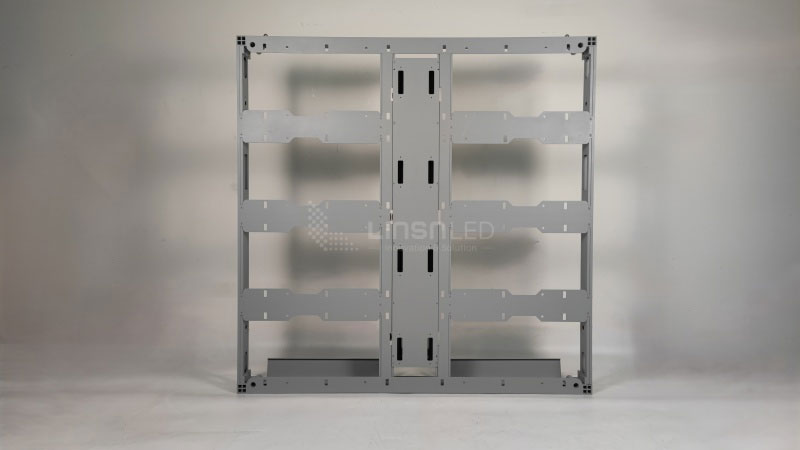

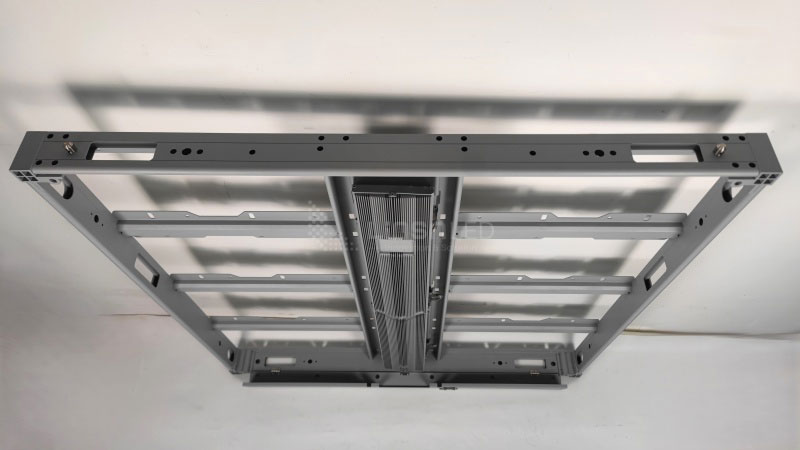

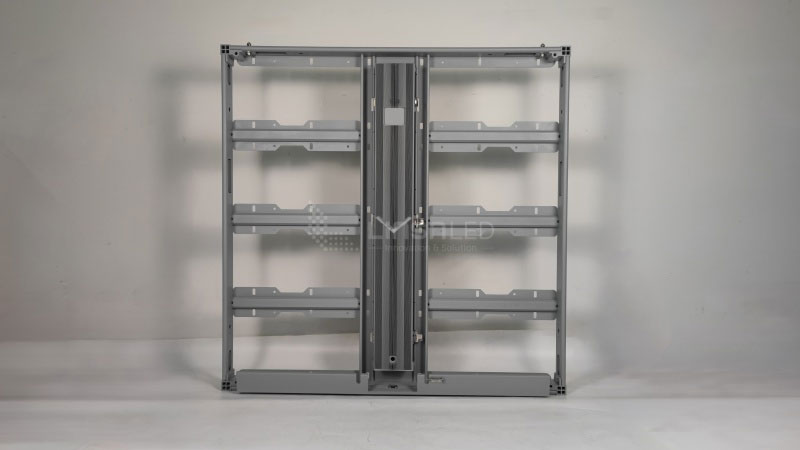

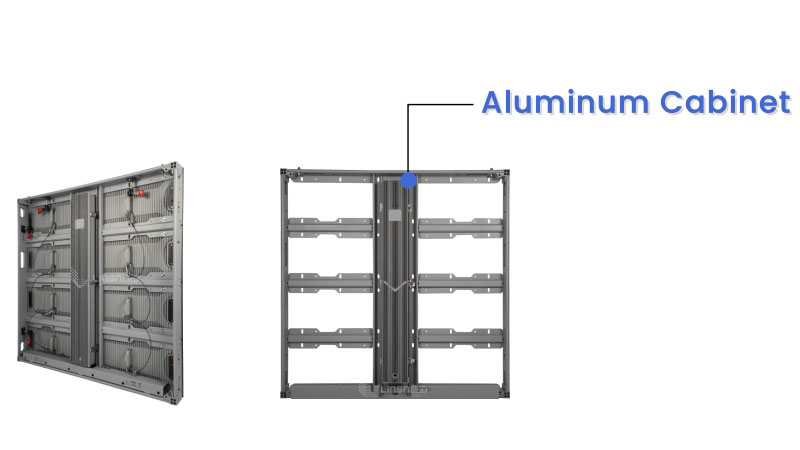

Durable Aluminum Cabinet Structure
The OF1000 adopts an aluminum back shell and extruded aluminum cabinet (P4.81 uses a plastic back shell), offering excellent strength, minimal deformation, and superior flatness and seam alignment.

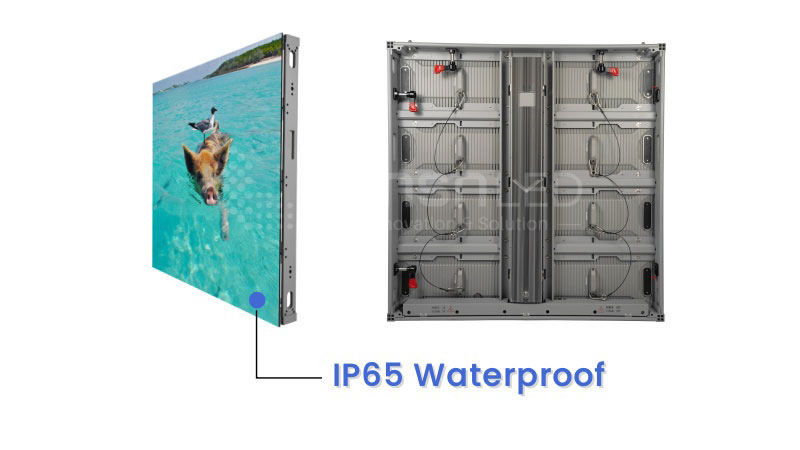

IP65 Protection Front and Rear
With IP65 waterproof rating on both sides, the cabinet supports direct exposure installations and performs reliably in rain, snow, and other harsh outdoor conditions.

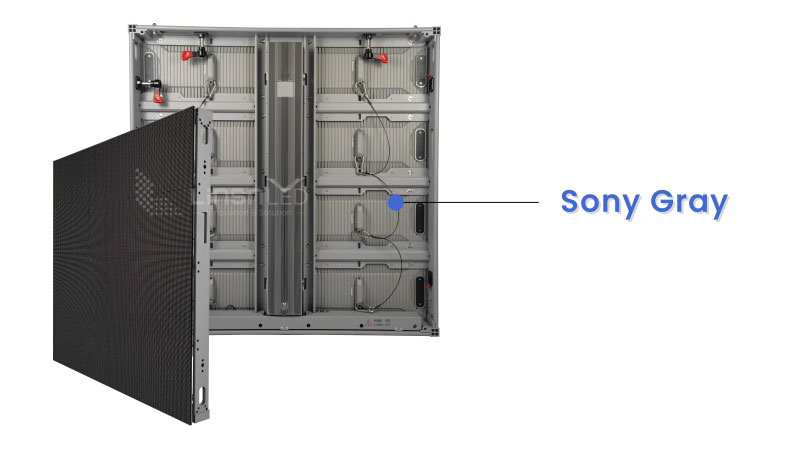

Sony Gray Design
The Sony gray finish reflects more solar radiation and absorbs less heat, offering a mild temperature effect. It also blends seamlessly with most building tones for a clean, modern, and harmonious look.

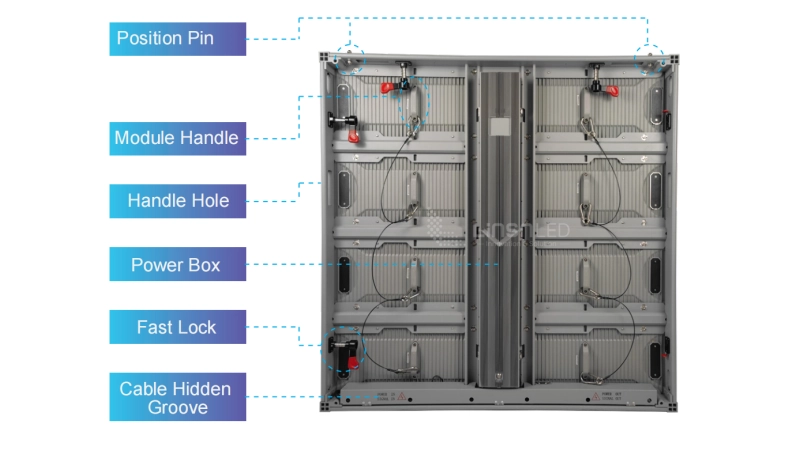

Lightweight and Easy Installation
Weighing only 30.5KG/m², the cabinet features quick locks and handle holes on all sides for fast and efficient setup.
Energy-Saving Power Design
Supports wide voltage input (AC 100V~240V) and features a common cathode design, which reduces power consumption by over 40% compared to traditional common anode systems, lowering heat generation and improving longevity.

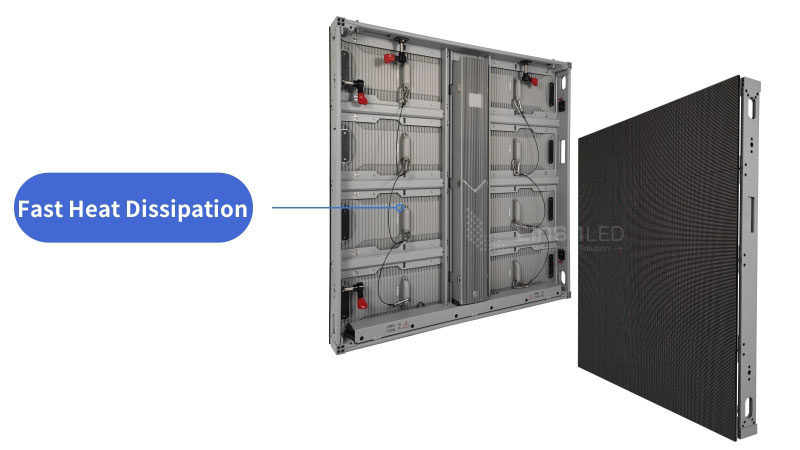

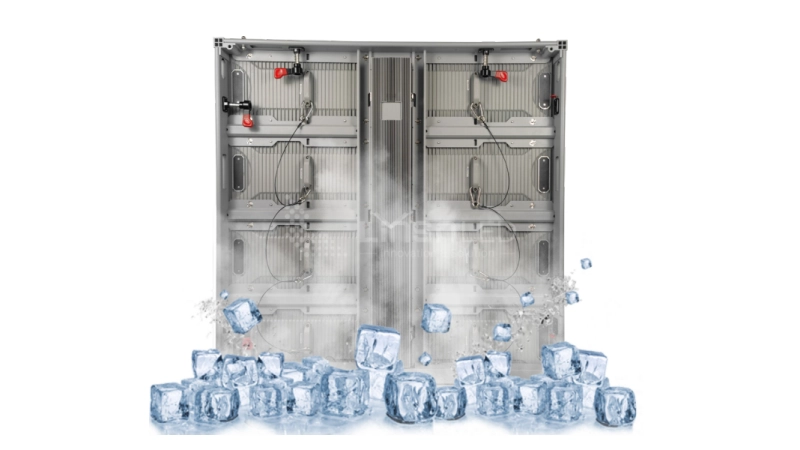

Seven-Layer Efficient Heat Dissipation
Equipped with active cooling fans, top-bottom convection vents, internal airflow channels, natural aluminum back dissipation, reinforced aluminum fins, V-shaped pressure-enhancing design, and die-cast aluminum module base – all working together to ensure fast heat conduction, lower operating temperature, and extended component lifespan.

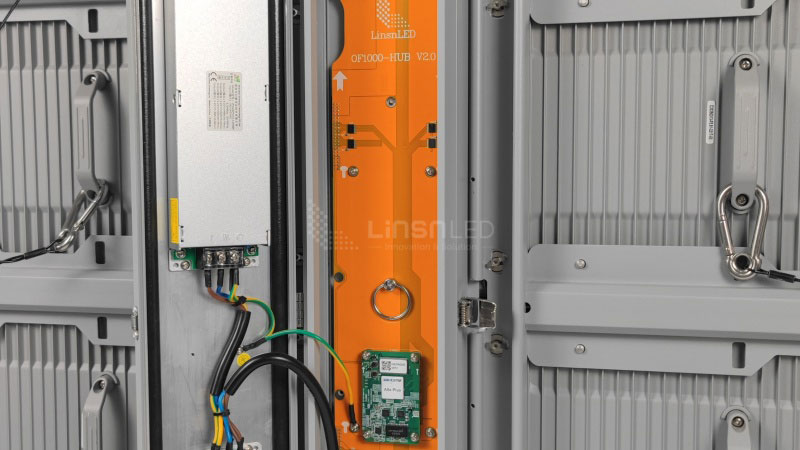

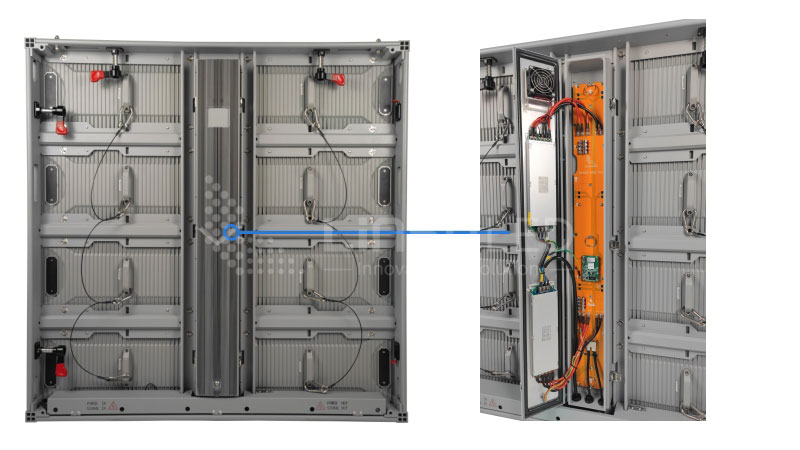

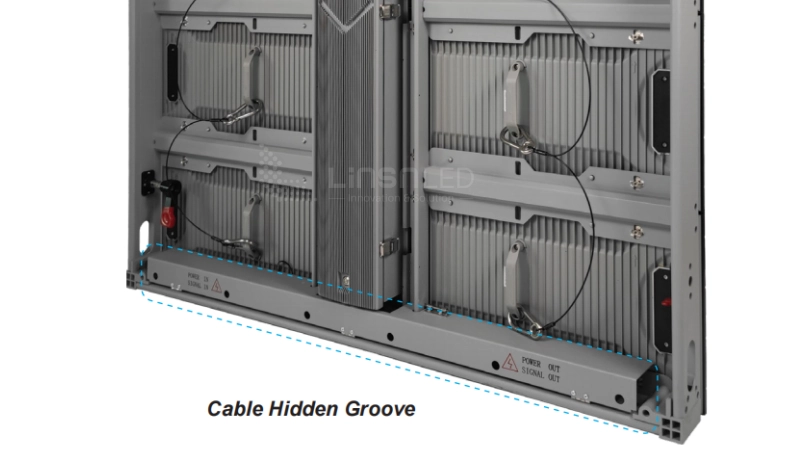

Concealed Wiring and Aviation Connectors
Power and signal cables are routed internally with aviation-grade connectors and protective tail covers, enhancing waterproof performance and installation aesthetics.

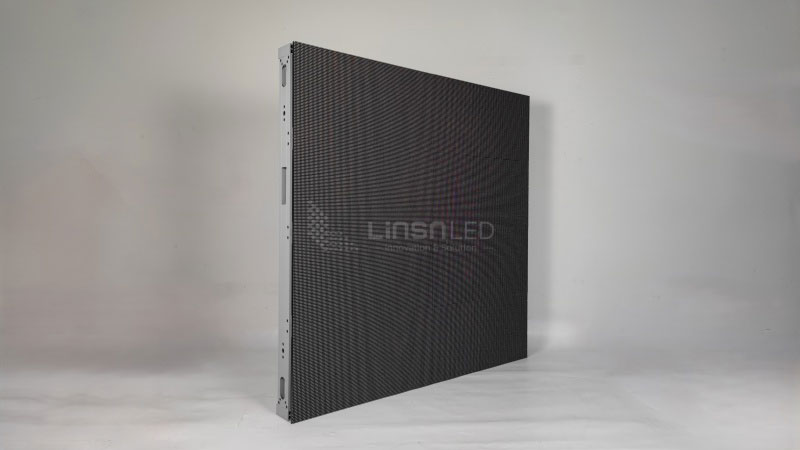

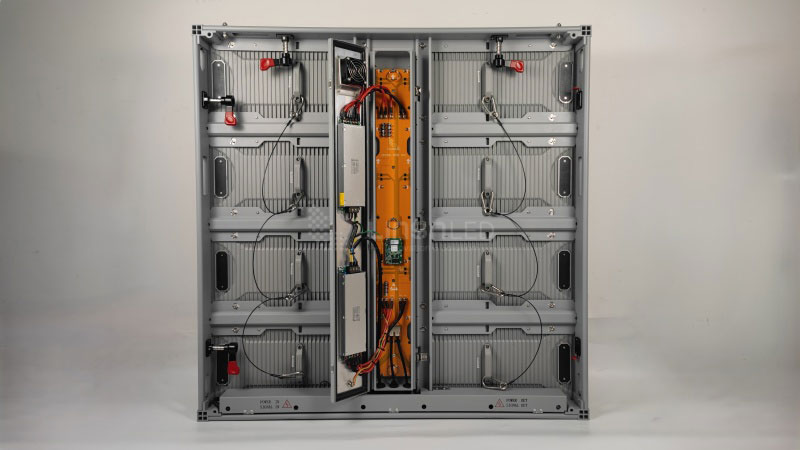

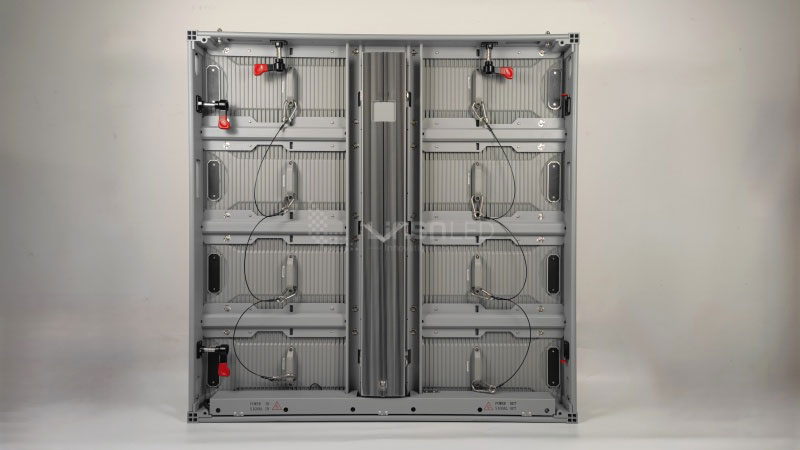

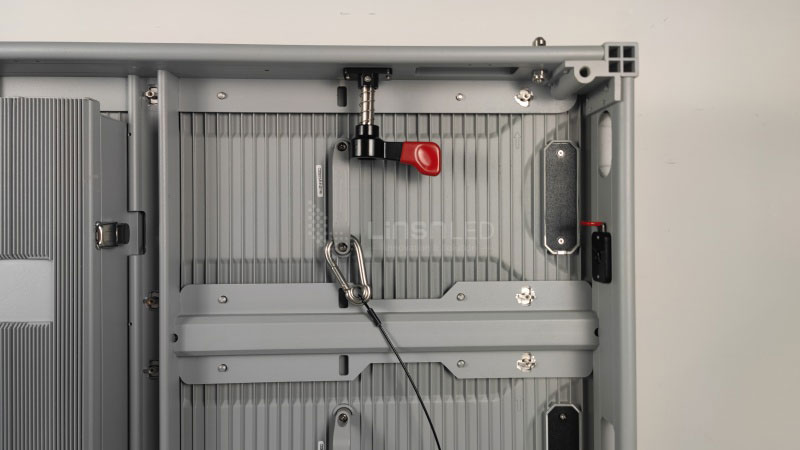

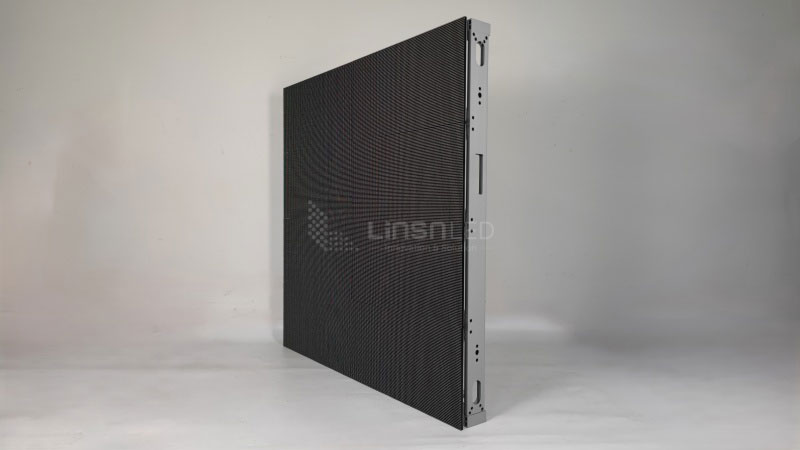

OF1000 Images
Specification
| Model | P2.976 | P3.91 | P4.81 | P6.25 | P7.81 | P10.42 |
| Pixel pitch | 2.976 | 3.91 | 4.81 | 6.25 | 7.81 | 10.42 |
| SMD type | SMD1415 | SMD1921 | SMD1921 | SMD2727 | SMD2727 | SMD2727 |
| Panel resolution(dots/pc) | 336×336 | 256×256 | 208×208 | 160×160 | 128×128 | 96×96 |
| Module resolution | 168X84 | 128X64 | 104X52 | 80X40 | 64X32 | 48X24 |
| Material of Panel | Profiled aluminum | |||||
| Module dimension | 500X250 | |||||
| Panel size(mm) | 1000x1000x87 | |||||
| Protective Grade | IP65 | |||||
| Flatness(mm) | ≤0.1 | |||||
| Maintenance mode | Front & Rear | |||||
| Weight of panel (kg/m2) | 30.5 | |||||
| Brightness(nits) | ≥5500 | ≥5500 | ≥5500 | ≥5500-6000 | ≥5500-6000 | ≥6000-6500 |
| Color temperature(K) | 8000-10000 optional | |||||
| Viewing angle(V/H) | 160°/160° | |||||
| Contrast ratio | 4000:1 | |||||
| Drive mode | Constant current | Constant current 1/16 scale | Constant current 1/13 scale | Constant current 1/8 scale | Constant current 1/4 scale | Constant current 1/2 scale |
| Refresh rate | ≥1920-3840Hz | |||||
| Max power consumption(W/m2) | 600 | 600 | 600 | 850 | 900 | 900 |
| Avg. power consumption(W/m²) | 360 | 360 | 360 | 510 | 540 | 540 |
