OR Series
Outdoor Rental Transparent LED Screen
- 1000×500 mm Lightweight Cabinet
- Transparency up to 85%
- Refresh Rate up to 3840 Hz
- Front & Rear Service Compatibility
- IP65 All-Weather Protection
- Supports Curved and Creative Installations

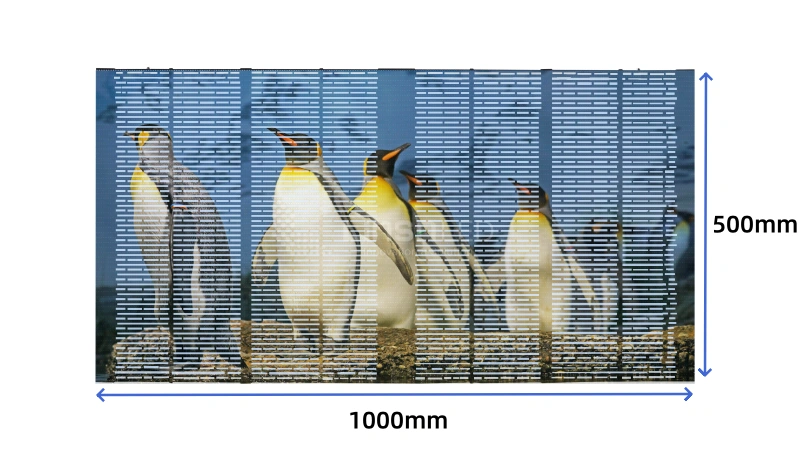

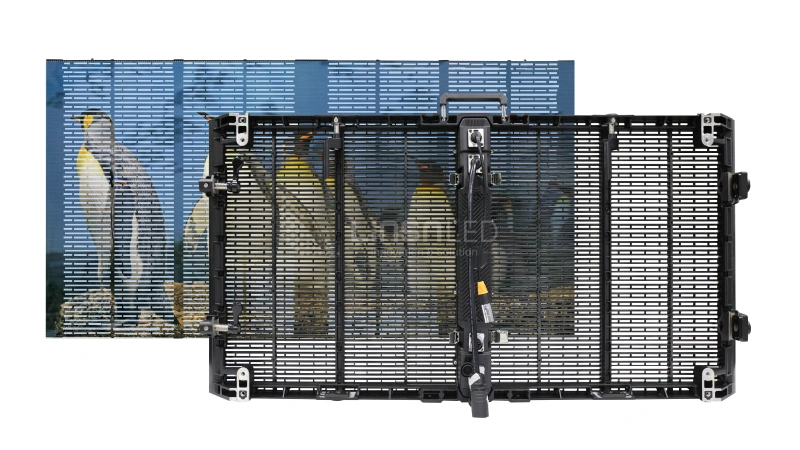

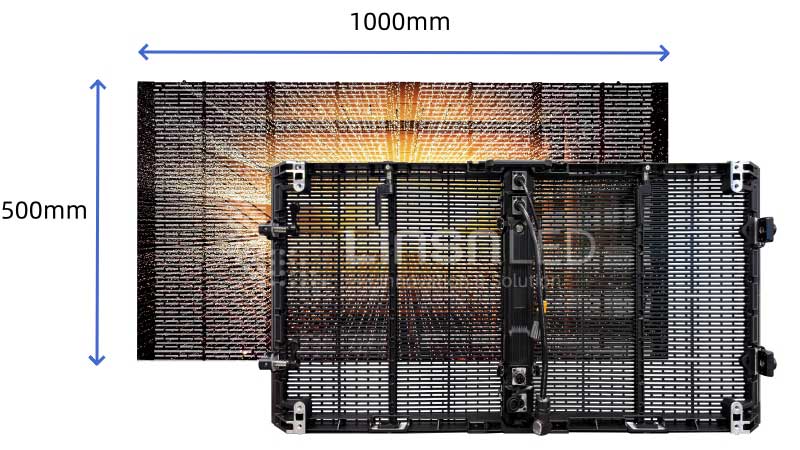

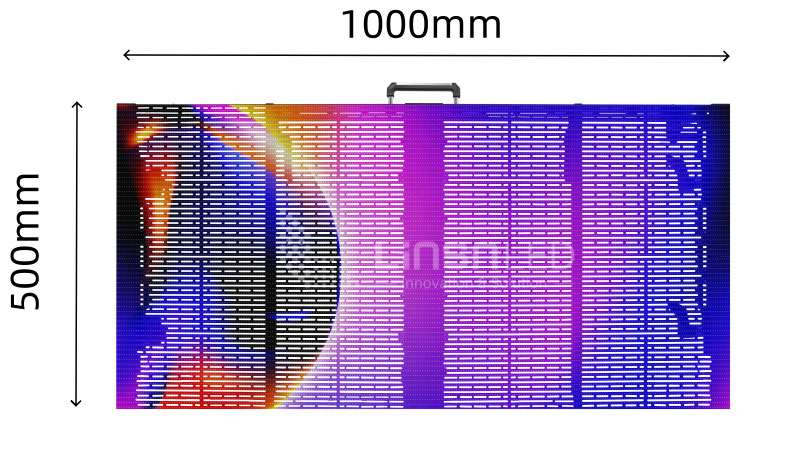

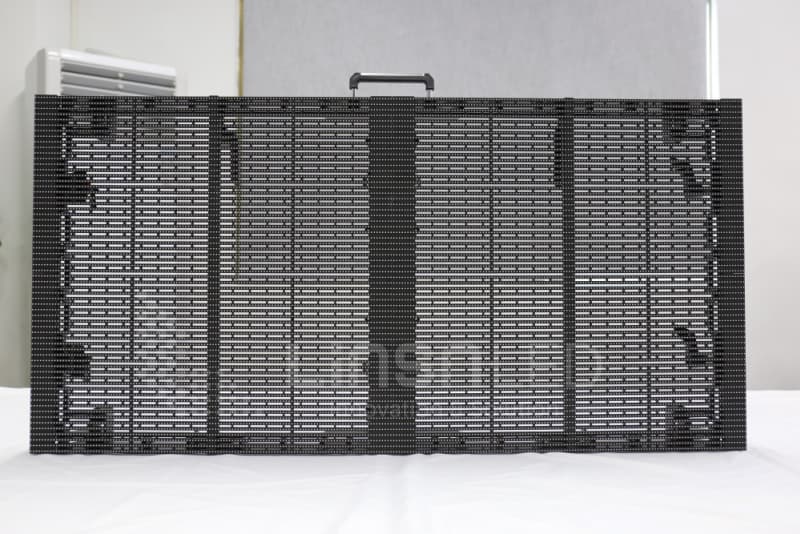

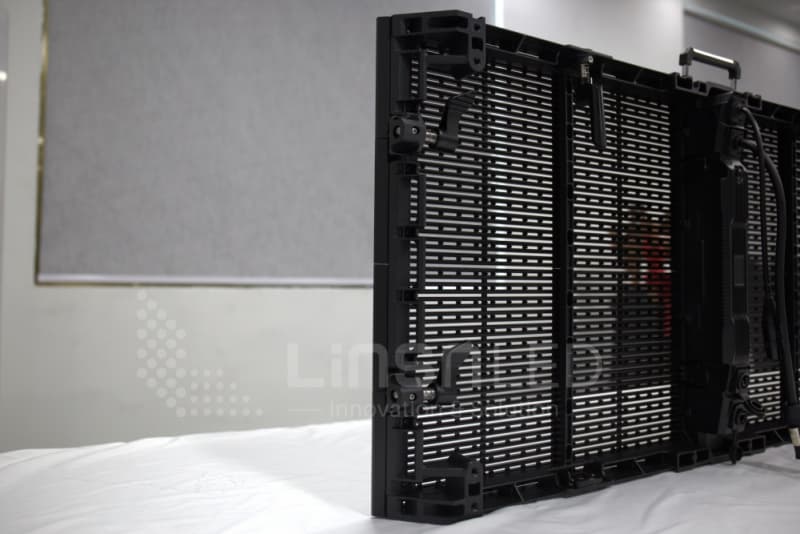

Ultra-Slim, Lightweight Cabinet

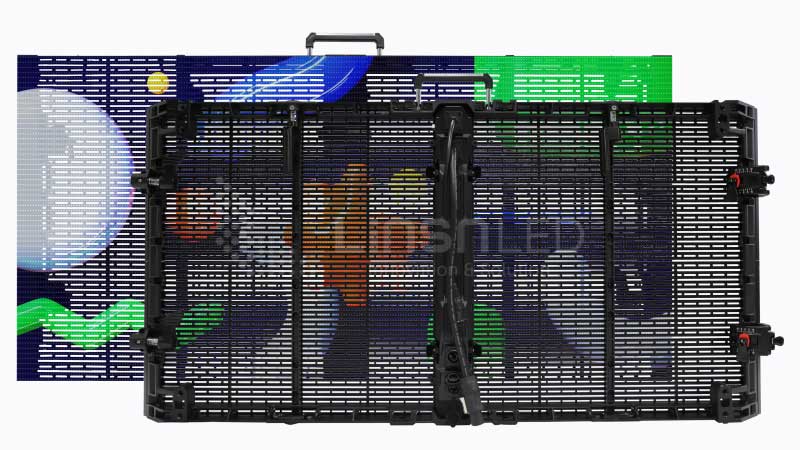

The OR Series outdoor rental transparent LED screen is engineered for mobility, fast deployment, and stable performance in professional stage environments. Built with CNC-machined die-cast aluminum, the cabinet measures only 1000×500×36 mm, offering exceptional portability without compromising strength.
It meets EMC standards, delivers up to 85% transparency, and features IP65 protection on both front and rear sides. Its low wind-resistance design enhances operational safety, making it ideal for outdoor concerts, festivals, touring stages, and large event rentals.
It meets EMC standards, delivers up to 85% transparency, and features IP65 protection on both front and rear sides. Its low wind-resistance design enhances operational safety, making it ideal for outdoor concerts, festivals, touring stages, and large event rentals.

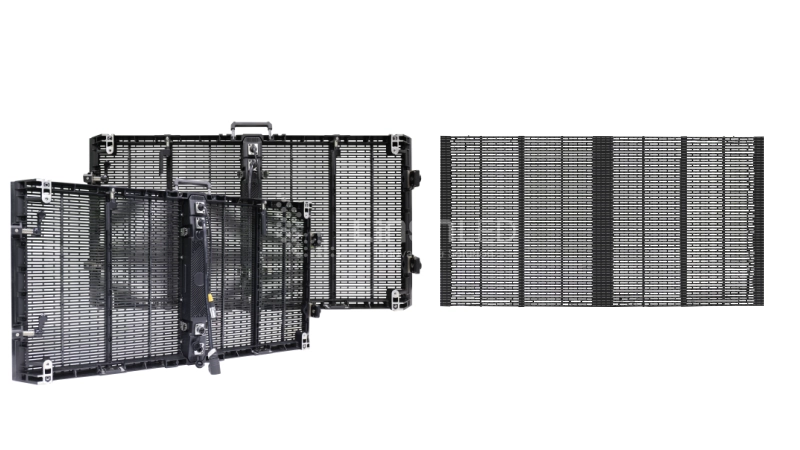

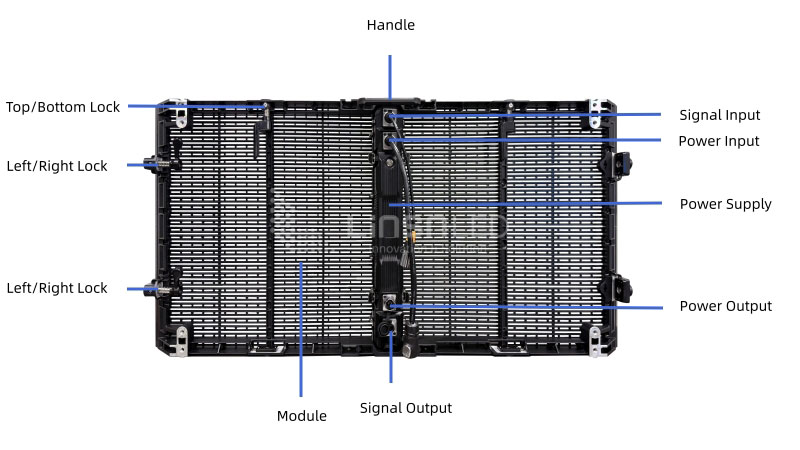

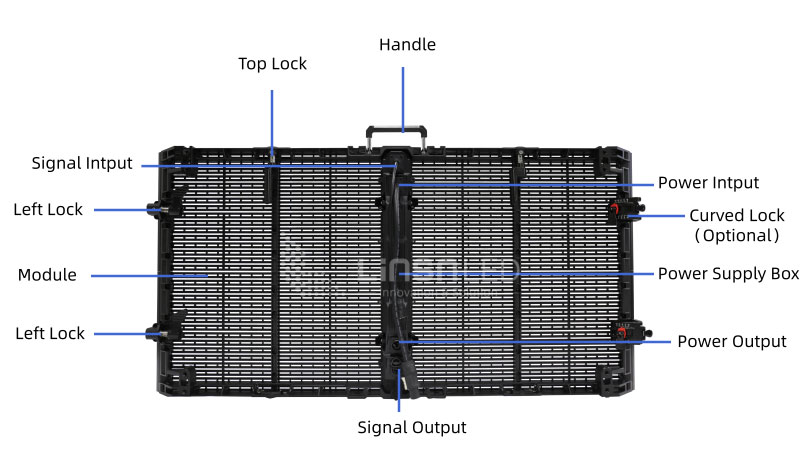

High-Precision Structural Design
The OR Series incorporates a structurally optimized frame that supports precise alignment, superior visual output, and long-term operating stability. Every component is engineered to maintain reliability under frequent assembly and disassembly typical of rental workflows.

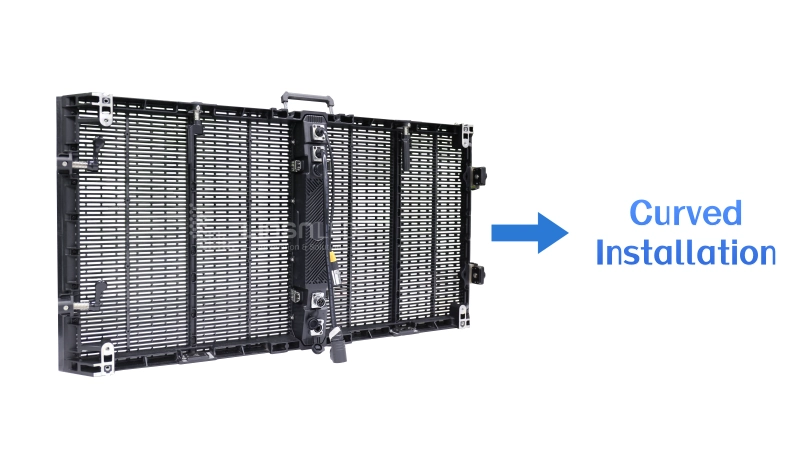

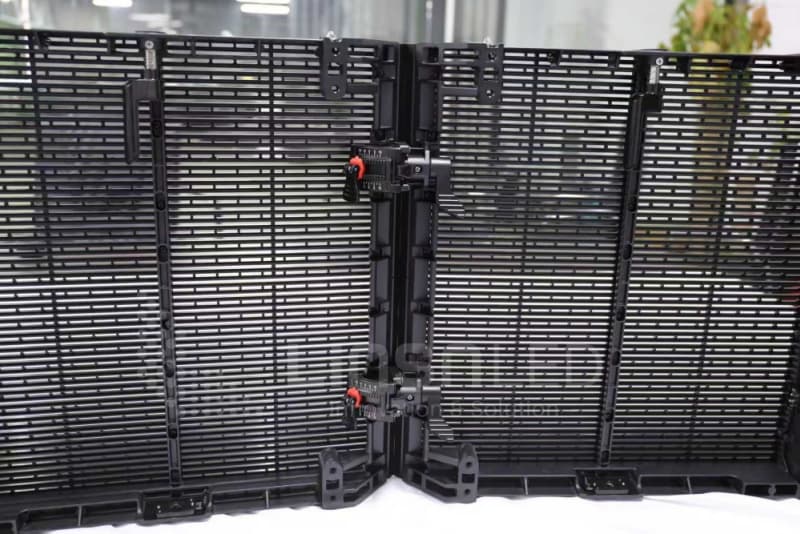

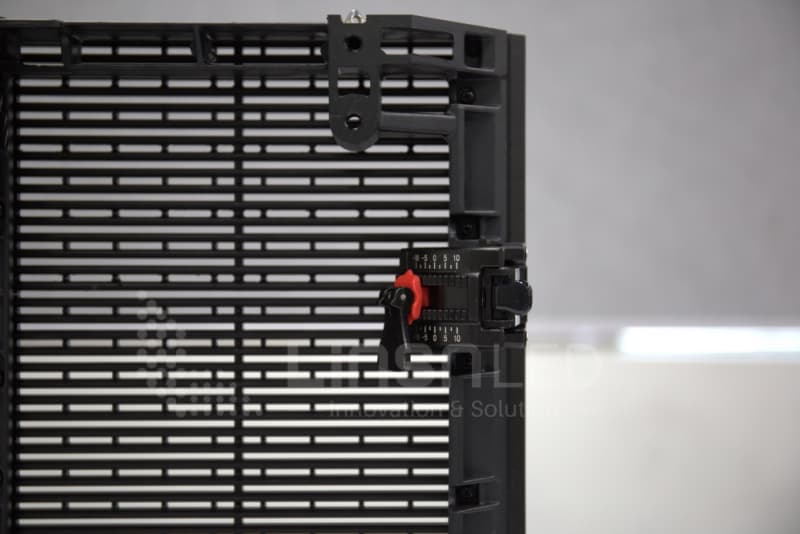

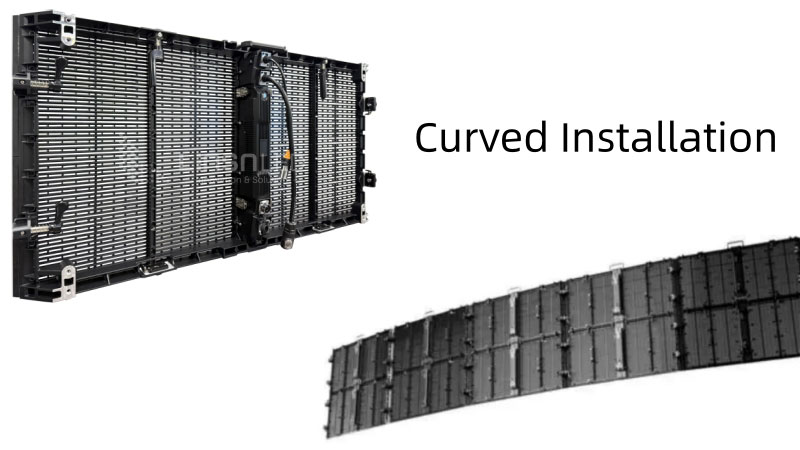

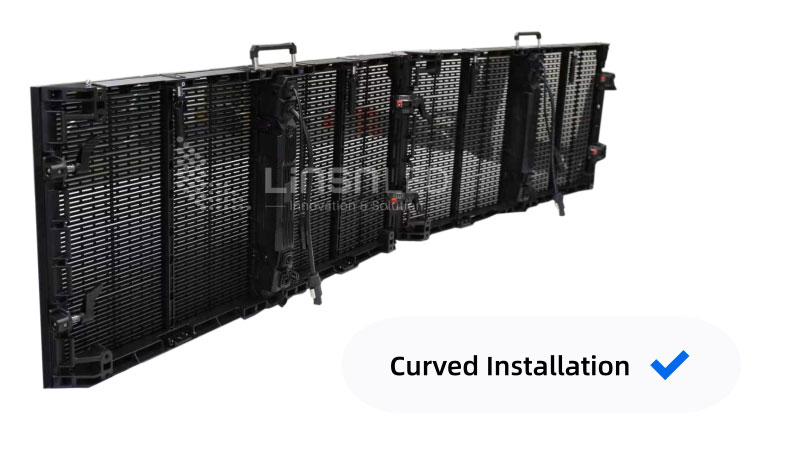

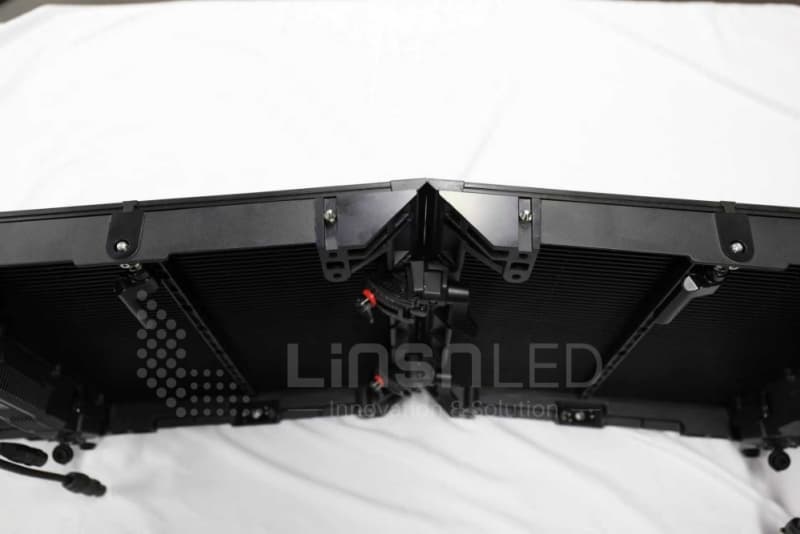

Flexible Curved Installation

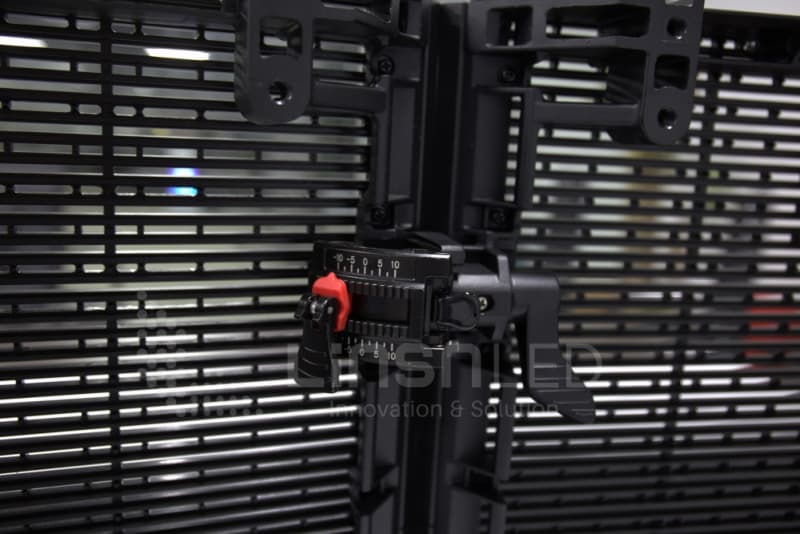

The display accommodates both inner and outer curves, enabling more dynamic stage designs. Standard cabinets ship without curve locks, allowing users to add curve accessories only when required.
This modular approach supports creative layouts, immersive stage backdrops, and visually impactful configurations.
This modular approach supports creative layouts, immersive stage backdrops, and visually impactful configurations.

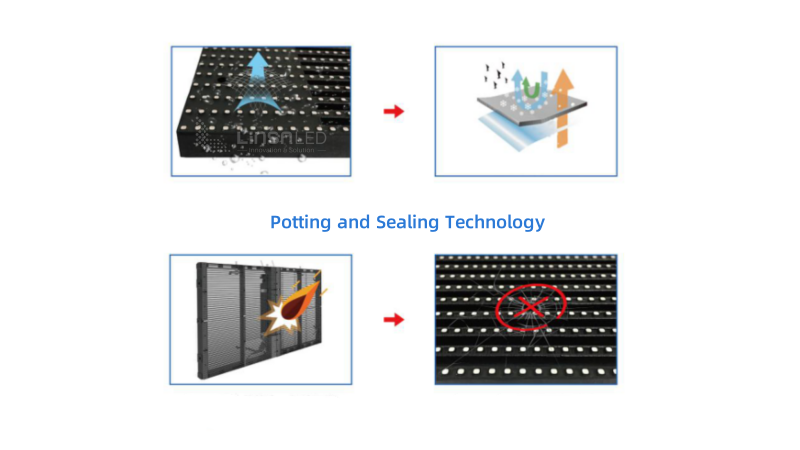

Waterproof, Impact-Resistant Sealed Protection
Using advanced sealed-glue technology, the OR Series safeguards LED lamps from moisture, dust, and physical impact.
Surface water evaporates naturally without affecting performance, while the encapsulation keeps LEDs intact even when subjected to accidental knocks or impacts during setup and teardown. This ensures dependable durability throughout outdoor rental operations.
Surface water evaporates naturally without affecting performance, while the encapsulation keeps LEDs intact even when subjected to accidental knocks or impacts during setup and teardown. This ensures dependable durability throughout outdoor rental operations.

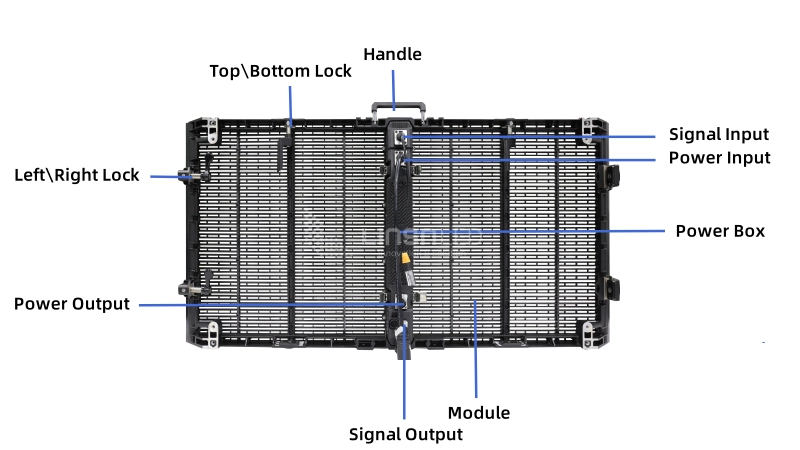

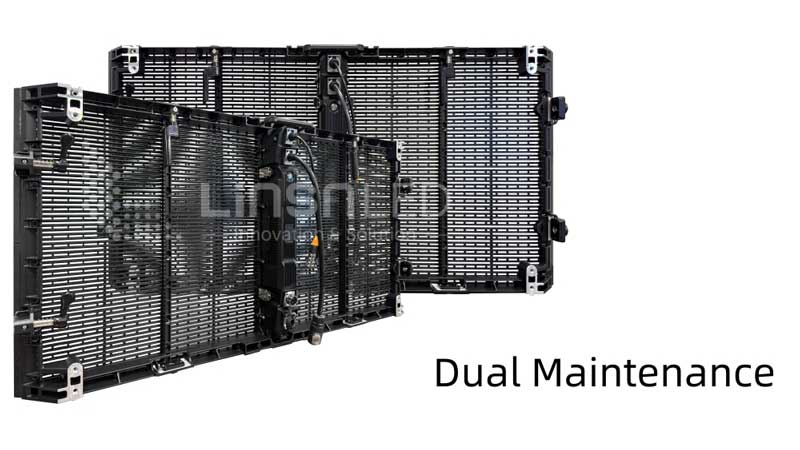

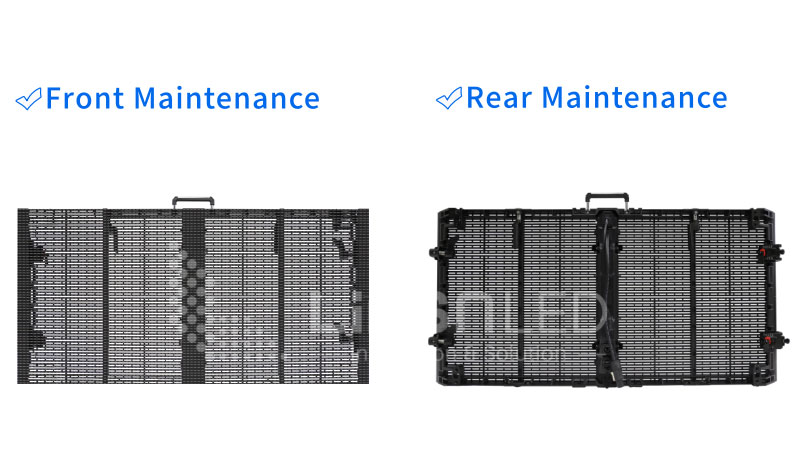

Dual Maintenance: Front or Rear
The OR Series supports both maintenance methods to suit different installation environments:
Rear service: Requires space behind the screen for module and power box access.
Front service: Modules and power boxes can be removed directly from the front by unscrewing the panel.
This flexibility shortens downtime and simplifies on-site service operations.
Rear service: Requires space behind the screen for module and power box access.
Front service: Modules and power boxes can be removed directly from the front by unscrewing the panel.
This flexibility shortens downtime and simplifies on-site service operations.

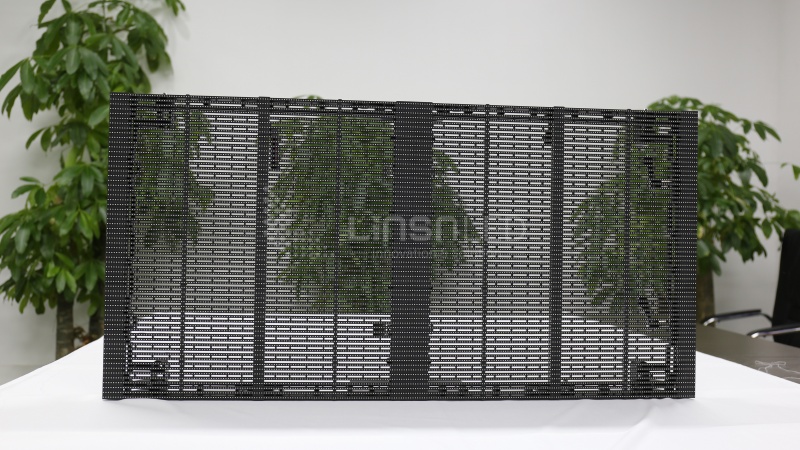

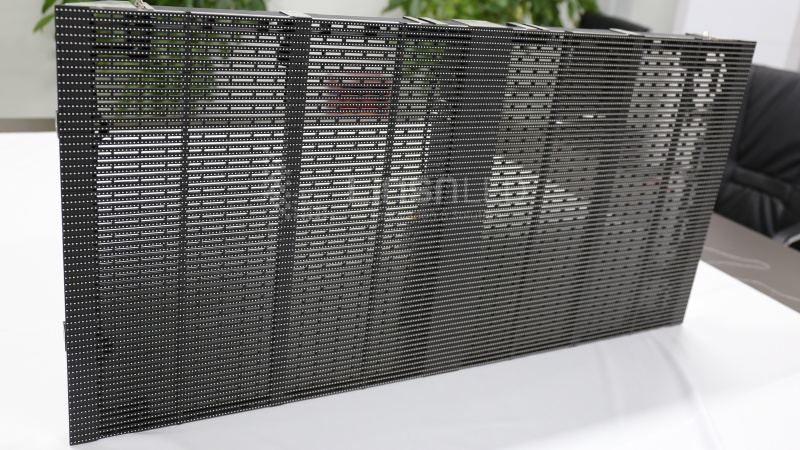

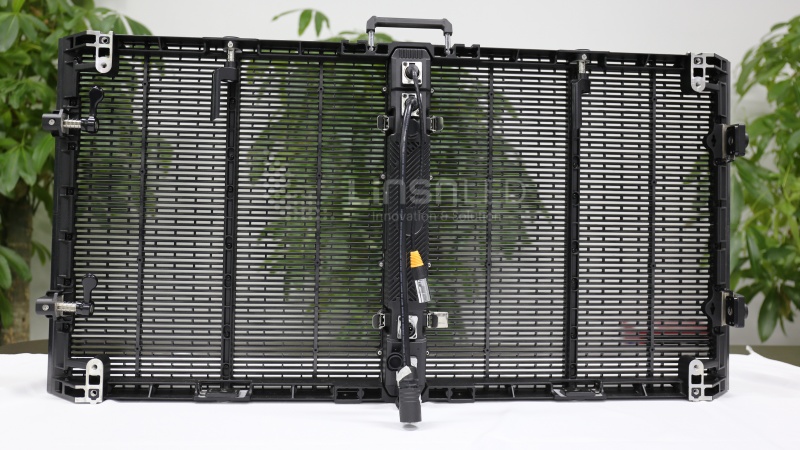

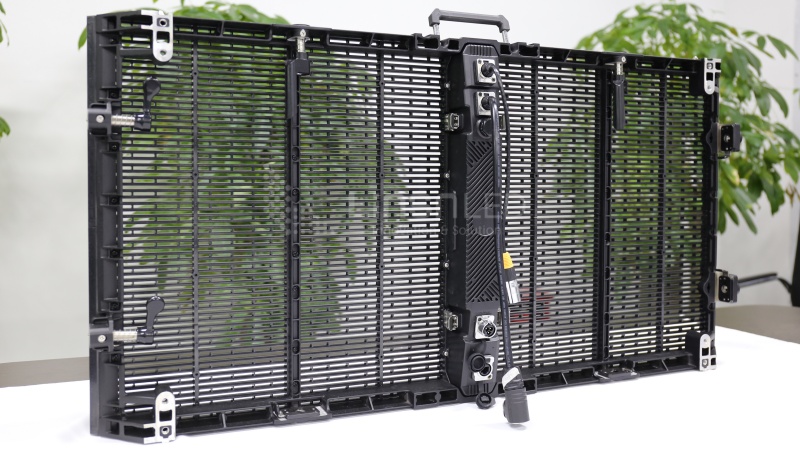

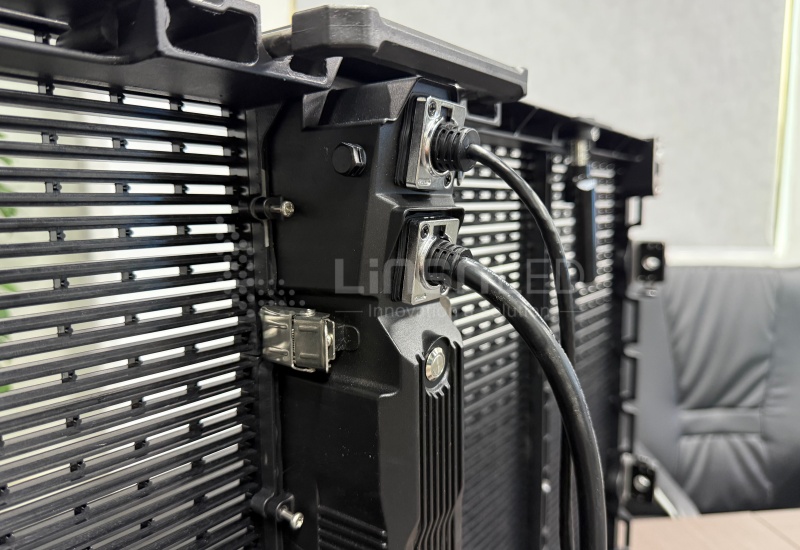

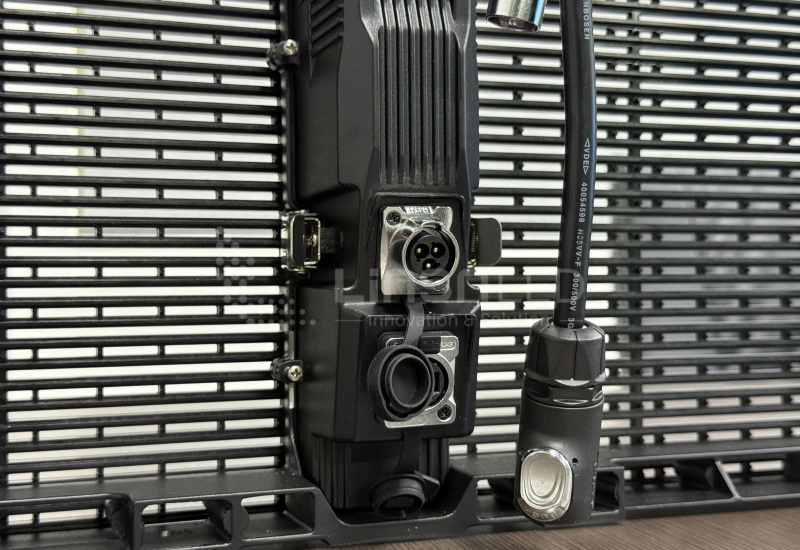

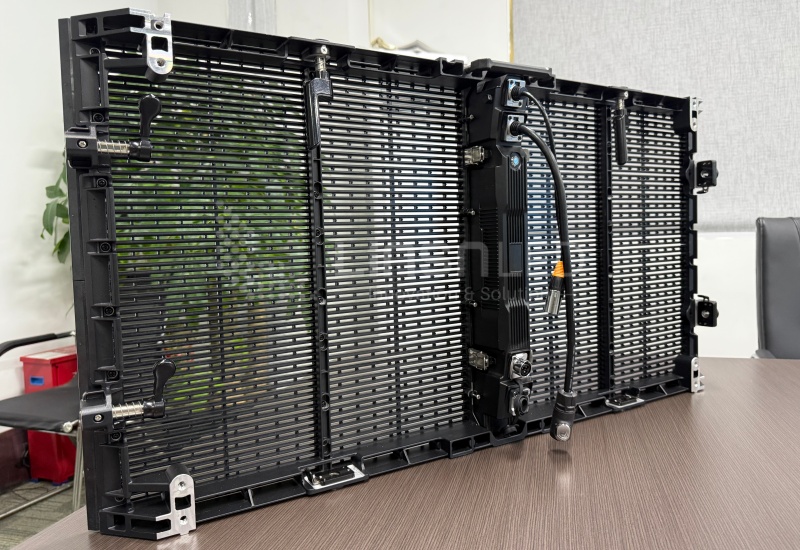

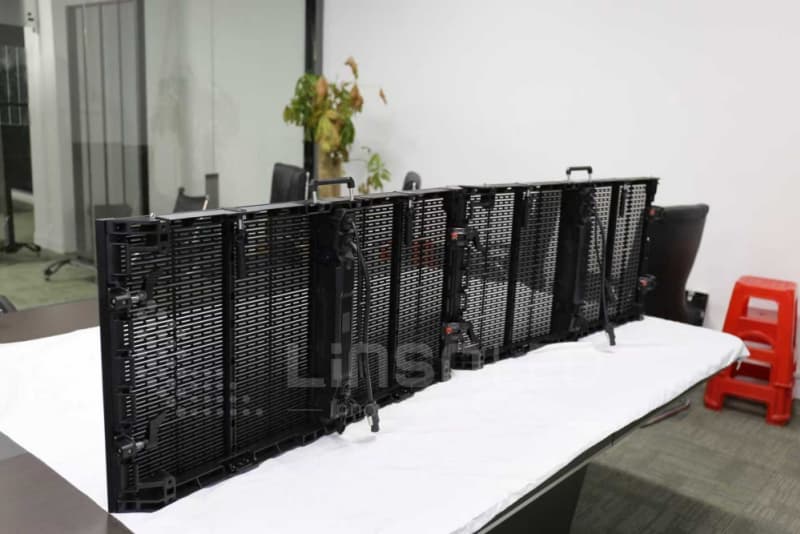

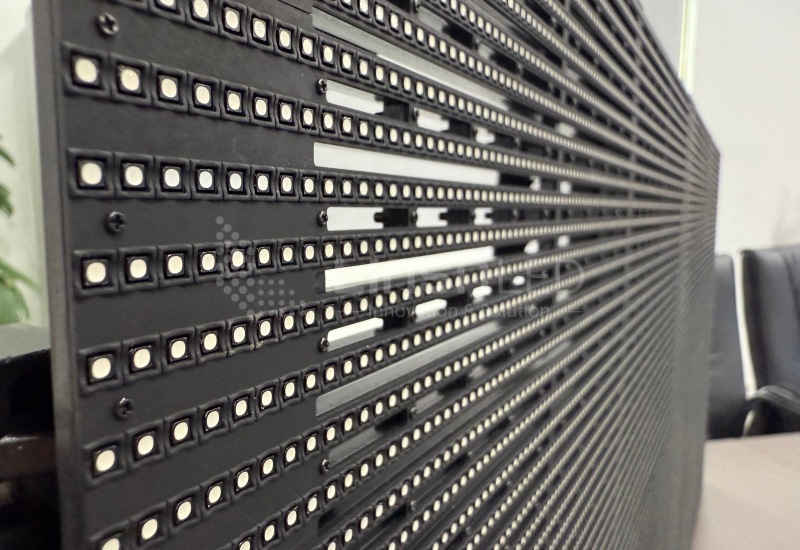

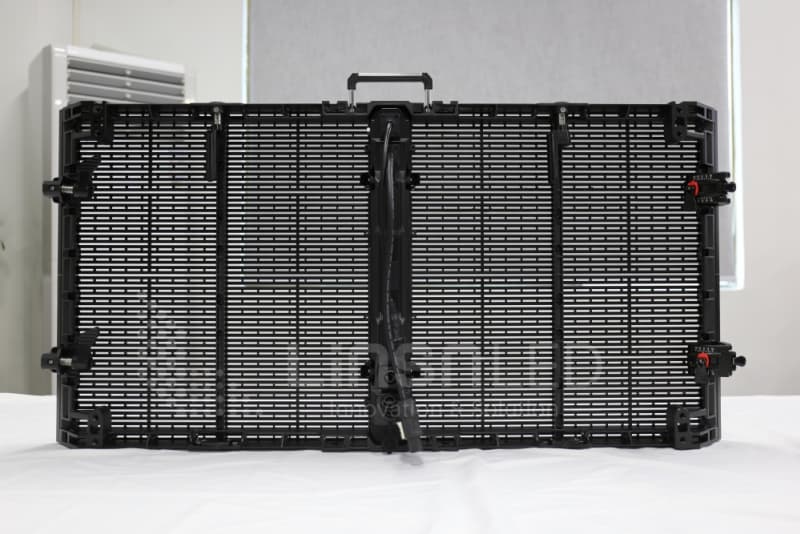

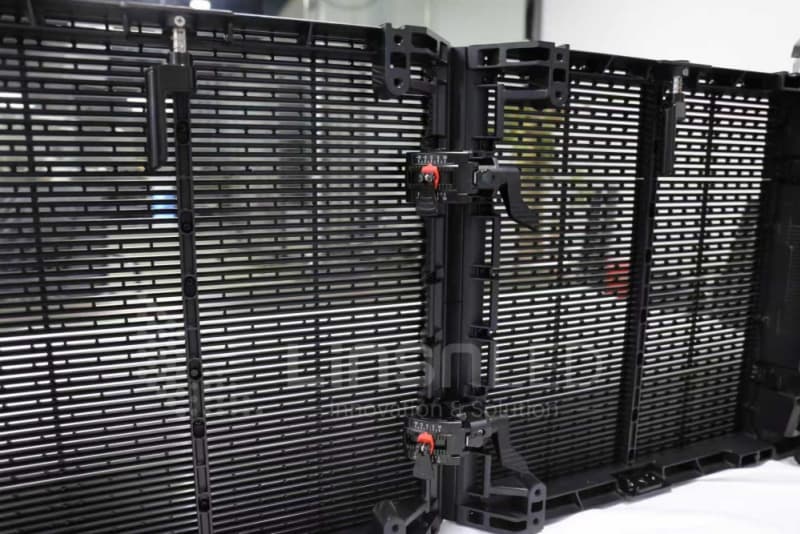

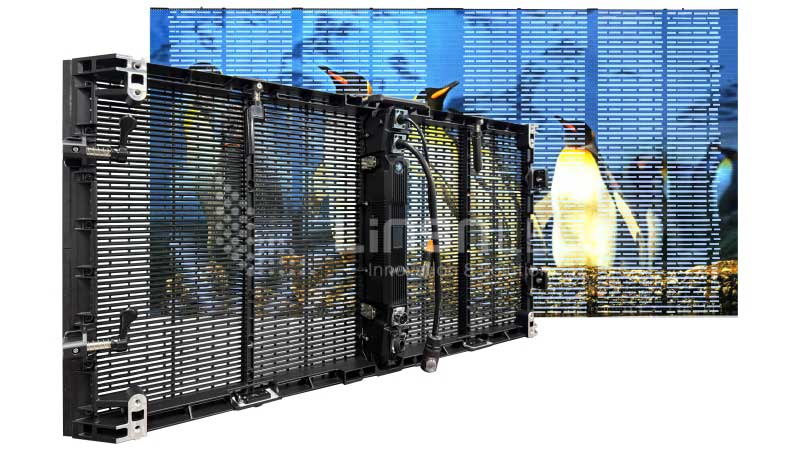

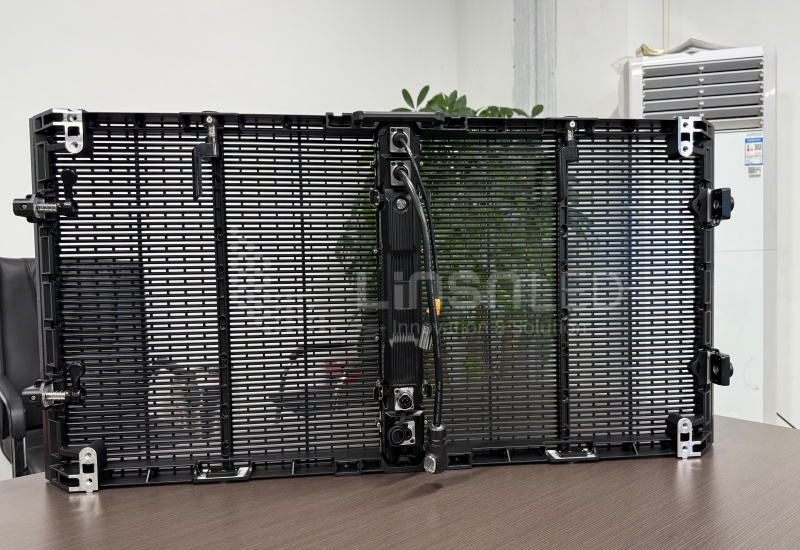

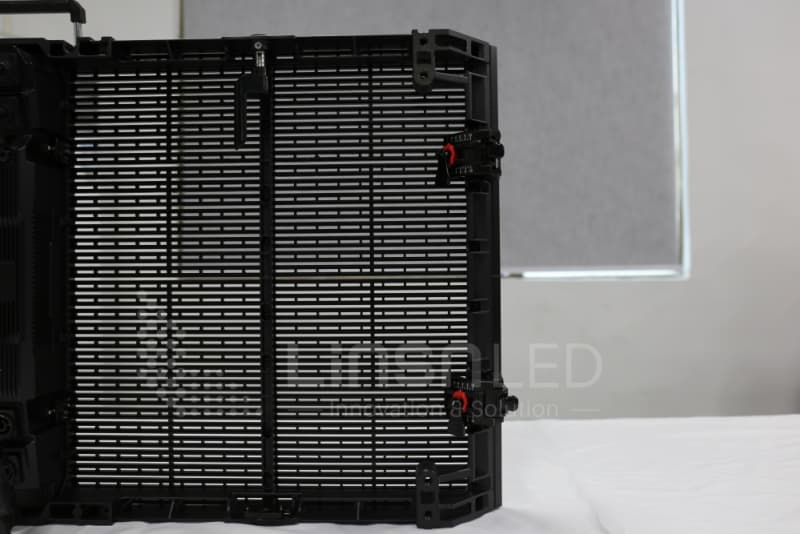

Product Images
Specification
| Pixel Pitch (mm) | H: 3.9 / V: 7.8 | H: 7.8 / V: 7.8 |
| Physical Pixel Density (dots/m²) | 32,768 | 16,384 |
| Transparency Rate | 55%~85% | 55%~85% |
| Physical Pixel per Single Cabinet | 256 × 64 | 128 × 64 |
| Display Resolution (m²) | 256 × 128 | 128 × 128 |
| Module Dimensions (mm) | 500 × 125 | 500 × 125 |
| Module Resolution (m²) | 128 × 16 | 64 × 16 |
| Average Power Consumption (W/m²) | 260 (Dynamic Mode) | 260 (Dynamic Mode) |
| Display Brightness (nits) | 4000-4500 | 4000-4500 |
| Cabinet Dimensions (mm) | 1000 × 500 | 1000 × 500 |
| Cabinet Weight (kg) | 7.5 kg | 7.5 kg |
| Refresh Rate (Hz) | 1920 / 3840 | 1920 / 3840 |
| LED Package | SMD1921 | SMD1921 |
| Pixel Composition | IR1G1B | IR1G1B |
| Driver IC | ICM20385/2153-8S | ICM20385/2153-4S |
| LED Control System | Nova | Nova |
| Display Interfaces | DVI/HDMI/DP/Ethernet/USB/WiFi/Internet Cloud Control | DVI/HDMI/DP/Ethernet/USB/WiFi/Internet Cloud Control |
| Grayscale Levels | 65,536 levels | 65,536 levels |
| Protection Rating | IP65 | IP65 |
| Anti-Ghosting Circuit | Equipped | Equipped |
| Power Supply Parameters | >90% Efficiency PFC, Wide Voltage 100-240V AC, DC5V 80A | >90% Efficiency PFC, Wide Voltage 100-240V AC, DC5V 80A |
| Module Voltage | DC 4.6-5V | DC 4.6-5V |
| Input Voltage | 100-240V AC ±10V | 100-240V AC ±10V |
| Operating Temp./Humidity | -20°C to 50°C, 10%-90% RH (Non-condensing) | -20°C to 50°C, 10%-90% RH (Non-condensing) |
| Cabinet Material | Die-cast Aluminum | Die-cast Aluminum |
| Installation Method | Hanging/Stacking Installation/Fixed Installation | Hanging/Stacking Installation/Fixed Installation |
| LED Lifespan | 100,000 hours (to complete failure) | 100,000 hours (to complete failure) |
| Maintenance Method | Rear Maintenance | Rear Maintenance |
