For controlling LED displays, precision, connectivity, and ease of use are paramount. That’s where the NovaStar KU20 shines. As part of the innovative COEX series from NovaStar Technology, the KU20 is designed to meet the demands of modern, high-performance display systems.
In this article, we’ll dive deeper into the features and capabilities of the NovaStar KU20, exploring how its design, specifications, and software compatibility can transform the way you manage LED displays. Ready to learn more about how the KU20? Keep reading!
1. The KU20 NovaStar Overview

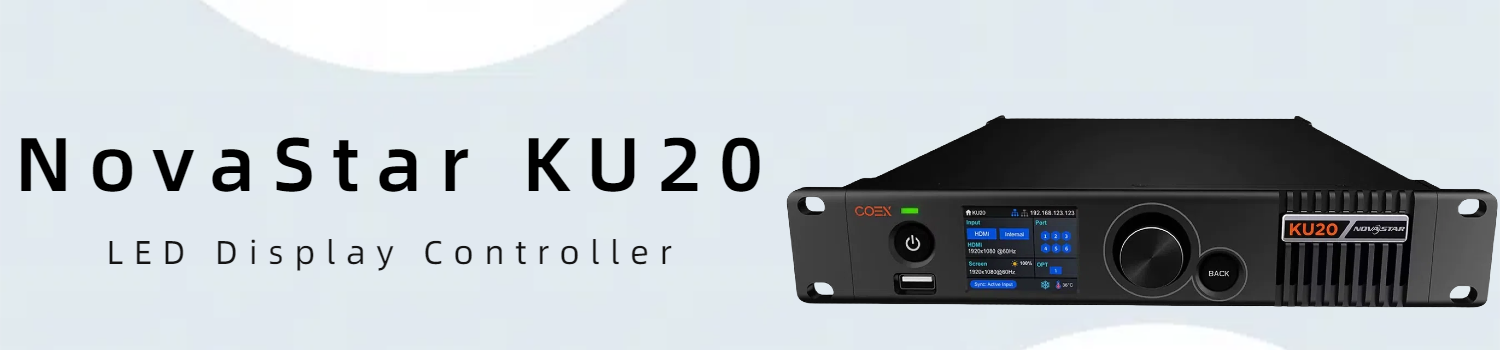

The NovaStar KU20 is an advanced LED display controller, engineered as part of the cutting-edge COEX series from NovaStar Technology. Designed for high-performance and flexibility, the KU20 stands out with its robust connectivity options, including 6 Ethernet ports, ensuring seamless integration and operation in large-scale display setups. This controller also features a single HDMI input, 6 Ethernet outputs, and an optical output, providing versatility for a wide range of applications.
To elevate the user experience, the KU20 is compatible with the Vision Management Platform (VMP)-NovaStar’s latest software solution. VMP optimizes the operation and management of the controller, enhancing control efficiency and simplifying complex display configurations. Whether for professional installations or dynamic live events, the KU20 is built to meet the demands of modern LED display systems, offering both power and precision in one streamlined device.
2. Design and Build
Running Indicator: A multi-color LED that provides instant status updates. It glows red during standby, blue while starting, green for normal operation, and flashes red to signal abnormalities.
Standby Button: Positioned for easy access, this button allows users to power the device on and off or restart it with a long press of 5 seconds or more.
USB 2.0 Port: A user-friendly feature for connecting USB drives. It supports diagnostic exports and cabinet configuration file transfers, compatible exclusively with NTFS and FAT32 formats.
LCD Screen: The 2.0-inch screen provides a clear interface for monitoring device status, accessing menus, and viewing system messages.
Knob and BACK Button: These allow intuitive navigation through the menu, enabling users to adjust settings or revert to previous menus effortlessly. The knob also supports locking and unlocking operations when combined with the BACK button.
HDMI IN: Supports resolutions up to 1920×1200@60Hz, offering wide compatibility for input signals. The HDMI interface ensures smooth video input with HDCP 1.4 compliance.
Ethernet Ports (1-6): These Gigabit ports enable seamless output and include backup functions for enhanced reliability. Each port supports a load capacity of 655,722 pixels, making it suitable for demanding display setups.
OPT (Optical Output): An optical port that extends connectivity over long distances with minimal signal loss.
AUX Power Port: Stable power delivery through its 100-240V AC input.
HDMI LOOP and Reserved Ports: Designed for future expansion and adaptability.
3. NovaStar KU20 Price: Cost vs. Value
Pricing is a crucial factor when considering a professional LED display controller like the NovaStar KU20.
For accurate and up-to-date pricing information, we recommend visiting our LED Screen Cloud Platform. There, you can explore detailed product specifications, compare options, and get quotes tailored to your needs. The platform provides a seamless way to ensure you’re getting the best deal and expert support for your LED display projects.
4. Features: Key Highlights
Versatile Image Scaling Options
The KU20 offers two image scaling modes: custom scaling for flexible adjustments and pixel-to-pixel scaling for precise image reproduction.
Full Grayscale Calibration
Working seamlessly with NovaStar’s high-precision calibration system and the C3200 scientific-grade camera, the KU20 delivers exceptional image uniformity.
Pixel-Level Brightness and Chroma Calibration
The KU20 excels in achieving consistent brightness and color uniformity across displays. By calibrating the brightness and chroma of each pixel individually, it eliminates inconsistencies and guarantees a visually cohesive and vivid display, regardless of pixel-level differences.
Low-Latency Performance
Latency is crucial in real-time applications, and the KU20 supports ultra-low latency with a delay of less than 1 millisecond at the controller level. Additionally, it allows for adjustable latency of zero to two frames, offering flexibility to suit various use cases without compromising on load capacity.
No Rectangle Restriction for Irregular Screens
Breaking free from traditional limitations, the KU20 accommodates irregular screen designs by ignoring blank pixels in resolution calculations.
Frame Rate Adaptability
The KU20 is compatible with a wide range of video input frame rates, including decimal frame rates. For added customization, it supports fine-tuning frame rates with a precision as high as 0.01 Hz.
Real-Time Display System Monitoring
The KU20 supports real-time monitoring of both the device and the connected display system. Any fault or alarm is actively reported, providing immediate insights for quick troubleshooting.
Dual Working Modes
The KU20 is versatile enough to operate in two distinct modes:
All-In-One Controller Mode: This mode enables layer and scaling functionalities, offering comprehensive control in a single device.
Send-Only Controller Mode: Focused purely on sending content, this mode is optimized for streamlined performance when additional functionality is not required.
5. Inputs & Outputs: Connectivity Options
5.1 HDMI Input
The KU20 is equipped with 1x HDMI 1.3 input, offering reliable connectivity for video sources. Additionally, the loop-through feature allows the same HDMI signal to be passed to another device.
5.2 10-Bit and 8-Bit Video Inputs
The KU20 provides support for both 10-bit and 8-bit video input formats, enabling compatibility with a wide range of video sources.
5.3 Ethernet Outputs
The KU20 features 6x Ethernet output ports, each capable of handling high data loads. With a total load capacity of up to 3.9 million pixels.
5.4 Optical Output
For advanced setups, the KU20 offers 1x 10G optical output, ensuring high-speed and long-distance data transmission.
6. Device Controls: Easy Management
6.1 Seamless VMP Software Integration
The KU20 is fully compatible with NovaStar’s Vision Management Platform (VMP) software, providing an intuitive interface for managing devices. With VMP, users can perform operations effortlessly, monitor the system, and handle configurations with smart management tools designed for professional-level control.
6.2 Protocol Support for Versatile Connectivity
The KU20 supports both SNMP (Simple Network Management Protocol) and Art-Net protocols. This flexibility allows for seamless integration into complex environments, including those requiring centralized device management or advanced lighting control.
6.3 Cascading Control with Built-in Network Switching
Simplifying multi-device setups, the KU20 features Gigabit Ethernet control ports with TCP/IP protocol support and a built-in network switching function. Devices can be cascaded using a star topology, eliminating the need for additional switches or routers. This built-in capability streamlines deployment, enabling multiple devices to operate smoothly on the same LAN.
7. Nova KU20 Manual and Software Download
Whether you need detailed user manuals, the latest firmware updates, or compatible software like the Vision Management Platform (VMP), we’ve got you covered.
We highly recommend visiting the NovaStar Software and NovaStar RCFG File Download page, your one-stop destination for all NovaStar resources. This platform provides: comprehensive user manuals, latest software, firmware updates, and more.
8. FAQs about NovaStar KU20 LED Controller
What is the load capacity of the KU20?
The NovaStar KU20 supports a maximum load capacity of 3.9 million pixels, distributed across its six Ethernet output ports.
What input and output interfaces does the KU20 have?
1x HDMI 1.3 input with loop-through.
6x Ethernet ports for data transmission.
1x 10G optical output for long-distance and high-speed transmission.
Which software is compatible with the KU20?
The KU20 works seamlessly with NovaStar’s Vision Management Platform (VMP), providing easy operation and smart device management.
Does the KU20 support cascading control?
Yes, the KU20 supports cascading control via its Ethernet control ports.
