Picking the right NovaStar receiving card? It all comes down to how much screen it can drive – its loading capacity. Get this wrong, and your LED display might not look its best. This guide breaks down the recommended loading capacities of NovaStar Technology’s most-used models, giving you the real-world numbers for different screen types.
Table of Contents:
1. NovaStar DH436 (HUB320) Loading Capacity
2. NovaStar DH3208 (HUB320) Loading Capacity
3. NovaStar DH7508/DH418 (HUB75) Loading Capacity
4. NovaStar DH7516/DH7516-N/DH426 (HUB75) Loading Capacity
5. NovaStar DH7512 (HUB75) Loading Capacity
6. Download NovaStar Receiving Card Specifications & Compare Prices
Notes:
➀ W = Width (number of modules wide), H = Height (number of modules high).
➁ Max Loading is based on a typical receiving card capacity (DH436: 512×384, DH3208: 512×512).
➂ Typical Layout means standard installation width × height.
➃ Alternative Layout refers to common cabinet arrangements in double-width or larger screen builds.
➄ NovaStar DH series, such as DH426, DH7516, DH7516N, DH7512, DH7508, DH418, are super flexible. They have HUB75E ports built-in and work with almost any HUB75E or HUB75C module. Compatibility headaches? Mostly gone with these.
➅ Want higher brightness, refresh rate, or grayscale? You usually can. Just drive fewer modules across the width than the max shown here. Less load often means better performance.
1. NovaStar DH436 (HUB320)

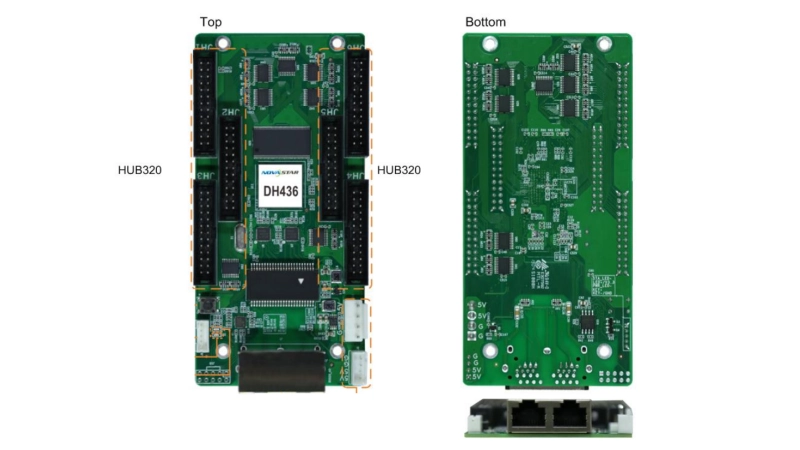

NovaStar DH436 is a compact receiving card tailored for fine-pitch LED displays.
It supports up to 512×384 pixels per card and works well with P0.8 to P1.8 modules. Designed for space-sensitive installations, its body is just 17.1mm thick.
It features real-time dark/bright line adjustment to eliminate module misalignment during setup, plus a dual-program backup system to prevent unexpected failures during firmware updates.
DH436 is widely used in high-end indoor screens, such as meeting room displays and stage backdrops.
For Fine Pitch LED Display
| Pixel Pitch | Module Size (mm) | Resolution | Scan Type | Single Card Loading Capacity (512×384) | Typical Layout (W×H) | Alternative Layout(W×H) |
| P0.8 | 320×160 | 360×180 | 1/45S | 360×360 | 1×2 | – |
| P1.0 | 320×160 | 320×160 | 1/40S | 320×480 | 1×3 | – |
| P1.25 | 320×160 | 256×128 | 1/32S | 512×384 | 1×6 | 2×3 |
| P1.37 | 320×160 | 232×116 | 1/29S | 464×348 | 1×6 | 2×3 |
| P1.538 | 320×160 | 208×104 | 1/26S | 416×312 | 1×6 | 2×3 |
| P1.66 | 320×160 | 192×96 | 1/32S | 384×288 | 1×6 | 2×3 |
| P1.839 | 320×160 | 174×87 | 1/58S | 348×261 | 1×6 | 2×3 |
2. NovaStar DH3208 (HUB320)

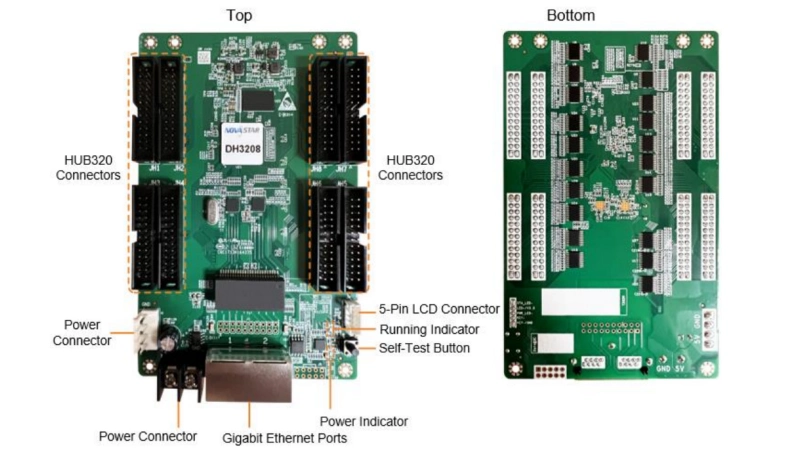

NovaStar DH3208 is a versatile HUB320 receiving card with support for 18bit+ grayscale and Rec.709/DCI-P3 color spaces.
It’s EMC Class A certified, offering strong resistance to electromagnetic interference, and supports both PWM and common driver ICs.
Maximum loading reaches 512×512 pixels (PWM) or 512×384 pixels (common IC). A 2023 version update added multi-batch brightness calibration, making this model even more accurate for color consistency.
It’s a strong fit for rental cabinets and fixed installations requiring accurate color reproduction.
For Fine Pitch LED Display
| Pixel Pitch | Module Size (mm) | Resolution | Scan Type | Single Card Loading Capacity (512×512) | Typical Layout (W×H) | Alternative Layout(W×H) |
| P0.8 | 320×160 | 360×180 | 1/45S | 360×360 | 1×2 | – |
| P1.0 | 320×160 | 320×160 | 1/40S | 320×640 | 1×4 | – |
| P1.25 | 320×160 | 256×128 | 1/32S | 512×512 | 1×8 | 2×4 |
| Pixel Pitch | Module Size (mm) | Resolution | Scan Type | Single Card Loading Capacity (512×384) | Typical Layout (W×H) | Alternative Layout(W×H) |
| P1.37 | 320×160 | 232×116 | 1/29S | 464×464 | 1×8 | 2×4 |
| P1.538 | 320×160 | 208×104 | 1/26S | 416×416 | 1×8 | 2×4 |
| P1.66 | 320×160 | 192×96 | 1/32S | 384×384 | 1×8 | 2×4 |
| P1.839 | 320×160 | 174×87 | 1/58S | 348×348 | 1×8 | 2×4 |
3. NovaStar DH7508/DH418 (HUB75)

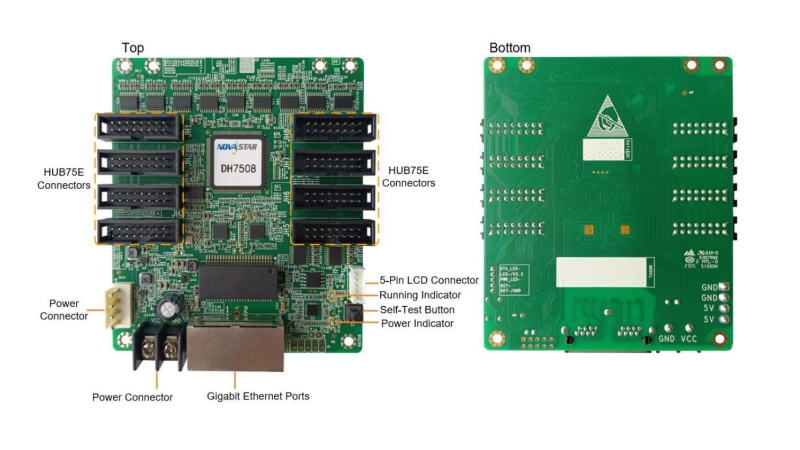

NovaStar DH7508: DH7508 is a budget-friendly HUB75E receiving card optimized for commercial projects.
With 8 ports and plug-and-play simplicity, full screen configuration can be completed in under 30 minutes. The card includes loop backup for the network port, meaning it can continue working even if one cable fails.
Its low power consumption—standby under 0.1W—helps reduce energy costs by up to 15%.
This model is commonly seen in LED signs used in malls, schools, and public service environments.

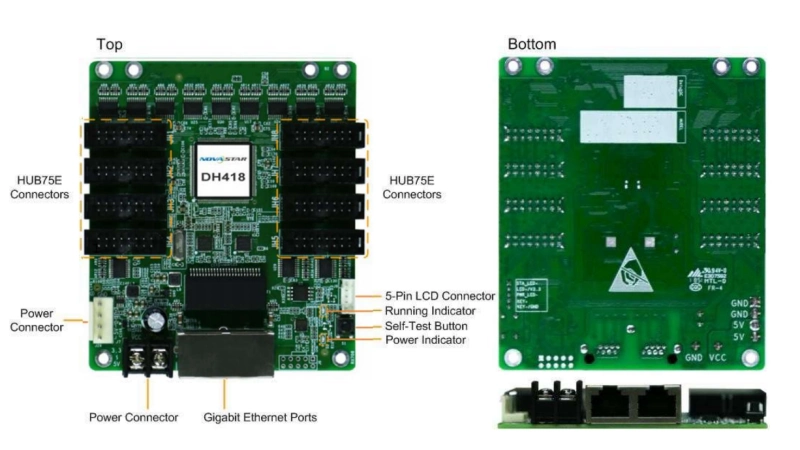

NovaStar DH418: Built for durability, the DH418 is a rugged industrial-grade receiving card with HUB75E interface.
It features wide-range temperature storage (–25℃ to 125℃), and a built-in LCD screen for monitoring real-time temperature, voltage, and run time.
It supports redundant power input through dual power ports and has proven its reliability over 10,000 hours of continuous operation with zero faults.
This model is preferred in environments where stability is a must.
3.1 For Indoor LED Display
| Pixel Pitch | Module Size (mm) | Resolution | Scan Type | Layout (W×H) | Single Card Loading Capacity (512×256) |
| P1.5 | 320×160 | 208×104 | 1/52S | 1×4 | 208×416 |
| P1.6 | 320×160 | 192×96 | 1/48S | 1×4 | 192×384 |
| P1.86 | 320×160 | 172×86 | 1/43S | 1×8 | 172×688 |
| P2 | 320×160 | 160×80 | 1/40S | 1×8 | 160×640 |
| P2.5 | 320×160 | 128×64 | 1/32S | 1×8 | 128×512 |
| 320×160 | 128×64 | 1/64S | 1×8 | 128×512 | |
| P3 | 192×192 | 64×64 | 1/32S | 2×8 | 128×512 |
| P3.0 | 320×160 | 104×52 | 1/26S | 1×8 | 104×416 |
| 320×160 | 104×52 | 1/52S | 1×8 | 104×416 | |
| P4 | 320×160 | 80×40 | 1/20S | 2×8 | 160×320 |
| 256×256 | 64×64 | 1/32S | 2×8 | 128×512 | |
| 256×128 | 64×32 | 1/16S | 2×8 | 128×256 | |
| P5 | 320×160 | 64×32 | 1/16S | 2×8 | 128×256 |
3.2 For Outdoor LED Display
| Pixel Pitch | Module Size (mm) | Resolution | Scan Type | Layout (W×H) | Single Card Loading Capacity (512×256) |
| P2.5 | 320×160 | 128×64 | 1/16S | 1×8 | 128×512 |
| P3.0 | 320×160 | 104×52 | 1/13S | 1×8 | 104×416 |
| P4 | 320×160 | 80×40 | 1/10S | 2×8 | 160×320 |
| P5 | 320×160 | 64×32 | 1/8S | 3×8 | 192×256 |
| P6 | 192×192 | 32×32 | 1/8S | 5×8 | 160×256 |
| P6.66 | 320×160 | 48×24 | 1/6S | 3×8 | 144×192 |
| P8 | 256×128 | 32×16 | 1/4S | 5×8 | 160×128 |
| 320×160 | 40×20 | 1/5S | 4×8 | 160×160 | |
| P10 | 320×160 | 32×16 | 1/2S | 5×8 | 160×128 |
| 320×160 | 32×16 | 1/4S | 5×8 | 160×128 |
4. NovaStar DH7516/DH7516-N/DH426 (HUB75)
NovaStar DH7516: DH7516 is built for ultra-large LED walls. It features 32 parallel RGB data channels, enabling fast and stable data transmission even on complex screens.
It’s 3D-ready with support for native 120Hz refresh rate, and can be paired with NovaCLB for pixel-level color calibration—achieving near-accurate 99% color consistency across the screen.
With over 100,000 hours MTBF (Mean Time Between Failures), DH7516 is trusted in long-running, large-scale LED installations, such as stadiums, virtual studios, and massive event displays.

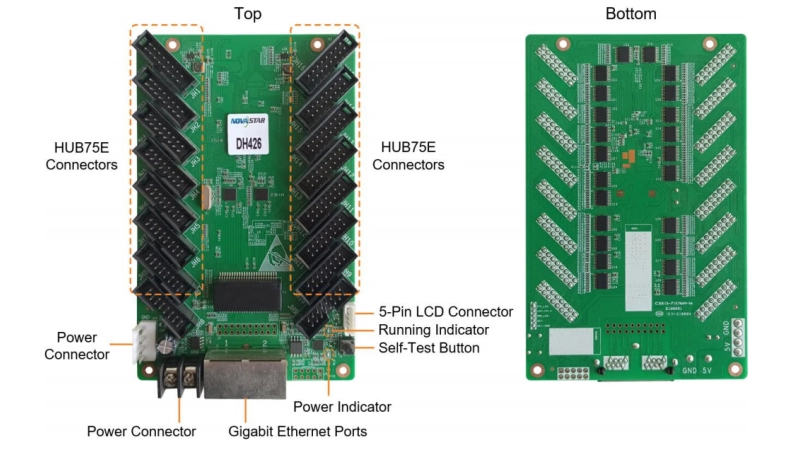

NovaStar DH426: The DH426 is a flagship 16-port HUB75E card for high-load LED applications.
It’s compatible with both PWM and universal driver ICs and supports up to 512×384 pixels per card with fast response times under 3ms. The card also supports hot-swapping modules without powering down the system—an advantage in live broadcast or rental scenarios.
It was used as the backbone of the main display at China’s CCTV Spring Festival Gala, demonstrating its stability and performance in mission-critical environments.
Ideal for XR stages, concert LED walls, and other premium indoor applications that demand pixel precision and system safety.
4.1 For Indoor LED Display
| Pixel Pitch | Module Size (mm) | Resolution | Scan Type | Layout (W×H) | Single Card Loading Capacity (512×384) |
| P1.5 | 320×160 | 208×104 | 1/52S | 1×8 | 208×832 |
| P1.6 | 320×160 | 192×96 | 1/48S | 1×8 | 192×768 |
| P1.86 | 320×160 | 172×86 | 1/43S | 1×10 | 172×860 |
| P2 | 320×160 | 160×80 | 1/40S | 1×10 | 160×800 |
| P2.5 | 320×160 | 128×64 | 1/32S | 1×16 | 128×1024 |
| P2.5 | 320×160 | 128×64 | 1/64S | 1×16 | 128×1024 |
| P3 | 192×192 | 64×64 | 1/32S | 2×16 | 128×1024 |
| P3.0 | 320×160 | 104×52 | 1/26S | 1×16 | 104×832 |
| P3.0 | 320×160 | 104×52 | 1/52S | 1×16 | 104×832 |
| P4 | 320×160 | 80×40 | 1/20S | 2×16 | 160×640 |
| 256×256 | 64×64 | 1/32S | 2×16 | 128×1024 | |
| 256×128 | 64×32 | 1/16S | 2×16 | 128×512 | |
| P5 | 320×160 | 64×32 | 1/16S | 2×16 | 128×512 |
4.2 For Outdoor LED Display
| Pixel Pitch | Module Size (mm) | Resolution | Scan Type | Layout (W×H) | Single Card Loading Capacity (512×256) |
| P2.5 | 320×160 | 128×64 | 1/16S | 1×16 | 128×1024 |
| P3.0 | 320×160 | 104×52 | 1/13S | 1×16 | 104×832 |
| P4 | 320×160 | 80×40 | 1/10S | 2×16 | 160×640 |
| P5 | 320×160 | 64×32 | 1/8S | 2×16 | 128×512 |
| P6 | 192×192 | 32×32 | 1/8S | 4×16 | 128×512 |
| P6.66 | 320×160 | 48×24 | 1/6S | 3×16 | 144×384 |
| P8 | 256×128 | 32×16 | 1/4S | 5×16 | 160×256 |
| 320×160 | 40×20 | 1/5S | 4×16 | 160×320 | |
| P10 | 320×160 | 32×16 | 1/2S | 5×16 | 160×256 |
| 320×160 | 32×16 | 1/4S | 5×16 | 160×256 |
5. NovaStar DH7512 (HUB75)

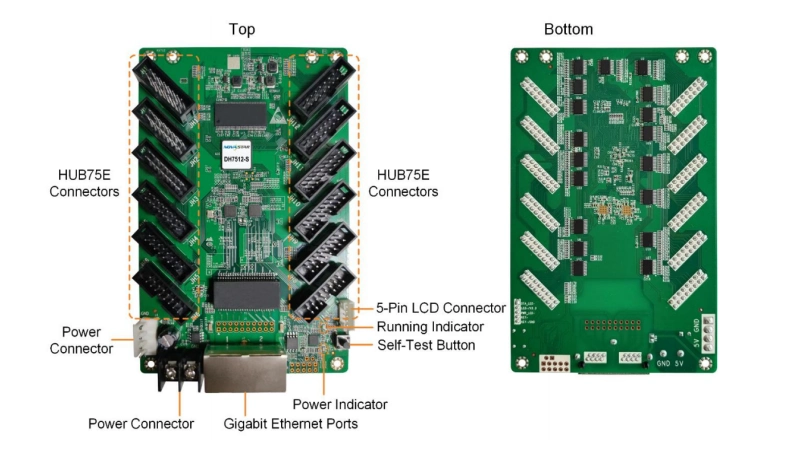

NovaStar DH7512 is designed for tall and narrow LED displays. It can drive up to 12 modules in a vertical chain, with pixel dimensions up to 192×1152, making it a top choice for elevator screens, digital pillars, and creative vertical layouts.
It includes independent RGB gamma adjustment, helping correct color imbalance in dark scenes. The card also supports real-time error detection through Ethernet ports, and introduces native support for 90° image rotation—no need to rotate content at the player end.
Its balance of high loading height and color tuning features makes DH7512 ideal for fixed indoor installations with space constraints and demanding visual standards.
5.1 For Indoor LED Display
| Pixel Pitch | Module Size (mm) | Resolution | Scan Type | Layout (W×H) | Single Card Loading Capacity (512×512) |
| P1.5 | 320×160 | 208×104 | 1/52S | 1×10 | 208×1040 |
| P1.6 | 320×160 | 192×96 | 1/48S | 1×12 | 192×1152 |
| P1.8 | 320×160 | 172×86 | 1/43S | 1×12 | 172×1032 |
| P2 | 320×160 | 160×80 | 1/40S | 1×12 | 160×960 |
| P2.5 | 320×160 | 128×64 | 1/32S | 1×12 | 128×768 |
| 320×160 | 128×64 | 1/64S | 1×12 | 128×768 | |
| P3 | 192×192 | 64×64 | 1/32S | 2×12 | 128×768 |
| P3.0 | 320×160 | 104×52 | 1/26S | 1×12 | 104×624 |
| 320×160 | 104×52 | 1/52S | 1×12 | 104×624 | |
| P4 | 320×160 | 80×40 | 1/20S | 2×12 | 160×480 |
| 256×256 | 64×64 | 1/32S | 2×12 | 128×768 | |
| 256×128 | 64×32 | 1/16S | 2×12 | 128×384 | |
| P5 | 320×160 | 64×32 | 1/16S | 2×12 | 128×384 |
5.2 For Outdoor LED Display
| Pixel Pitch | Module Size (mm) | Resolution | Scan Type | Layout (W×H) | Single Card Loading Capacity (512×256) |
| P2.5 | 320×160 | 128×64 | 1/16S | 1×12 | 128×768 |
| P3.0 | 320×160 | 104×52 | 1/13S | 1×12 | 104×624 |
| P4 | 320×160 | 80×40 | 1/10S | 2×12 | 160×480 |
| P5 | 320×160 | 64×32 | 1/8S | 2×12 | 128×384 |
| P6 | 192×192 | 32×32 | 1/8S | 4×12 | 128×384 |
| P6.66 | 320×160 | 48×24 | 1/6S | 3×12 | 144×288 |
| P8 | 256×128 | 32×16 | 1/4S | 5×12 | 160×192 |
| 320×160 | 40×20 | 1/5S | 4×12 | 160×240 | |
| P10 | 320×160 | 32×16 | 1/2S | 5×12 | 160×192 |
| 320×160 | 32×16 | 1/4S | 5×12 | 160×192 |
6. Download NovaStar Receiving Card Specifications & Compare Prices
Want to see the full loading charts or get the latest price for each NovaStar receiving card?
At LedInCloud – LED Screen Cloud Platform, you can:
✅ Download official specs for each model
✅ Compare card prices across models like DH436, DH7512, DH7516, and more
✅ Access configuration guide
✅ Get technical support from professional engineers
Just register LedInCloud – it’s free. Once logged in, you’ll have access to everything in one place. Whether you’re working with NovaStar DH7508 or planning a project with DH426, LedInCloud helps you make faster, smarter decisions.
7. Conclusion
This guide gives you the core numbers. Always double-check against your specific module specs and project goals. Need the original detailed charts? They’re floating around online – just contact LedInCloud. Hope we make choosing the right DH card a bit simpler!
