Rear Maintenance vs Front Maintenance LED Display: Key Differences

A front maintenance LED display and a rear maintenance LED display are not just two labels. They shape how a screen is built. They shape where you can put the screen. They shape how fast you can service it.

This article compares both in plain terms. Read it to pick the right type for your project.

1. What Is a Front Maintenance LED Display?

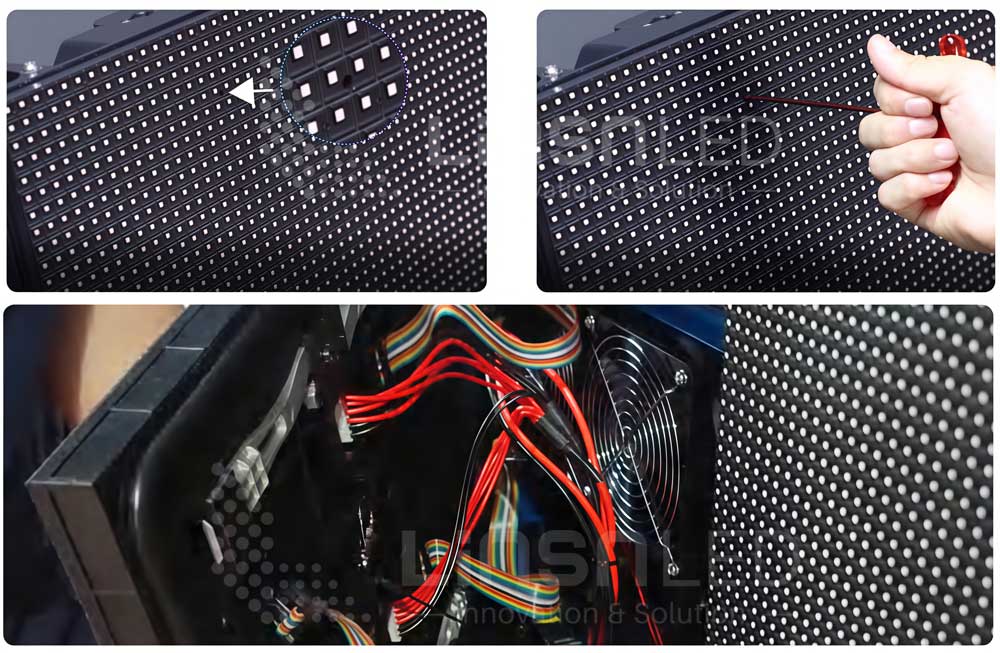

A front maintenance LED display is a screen designed so that all maintenance work—such as replacing LED modules, power supplies, and receiving cards—can be done from the front side of the display. So technicians do not need access to the back of the cabinet when performing service or component replacement.

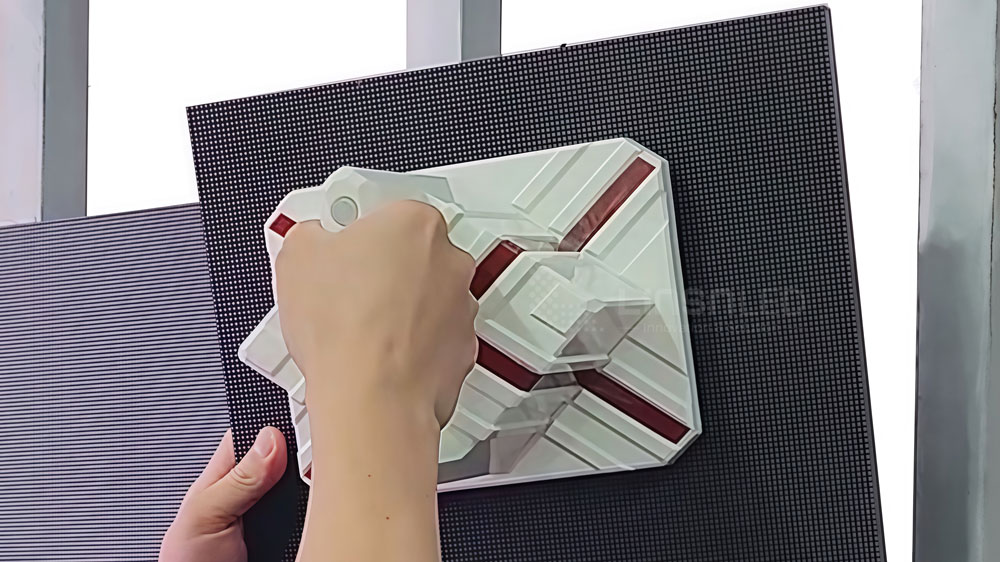

In a front access system, the display modules are typically fixed to the cabinet using magnetic mounts or mechanical locks. When a module or component needs service, the technician can release it directly from the viewing side, remove it, and install a new one—all without moving or opening the display structure from behind.

2. What Is a Rear Maintenance LED Display?

A rear maintenance LED display is a screen that is serviced from the back side of the cabinet.

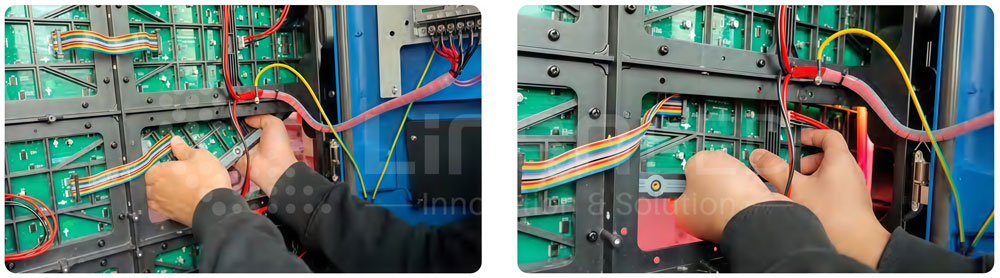

In this design, technicians open a rear door or panel to access the internal components, such as LED modules, power supplies, data cables, and receiving cards. All maintenance, testing, and replacement work happens behind the display body.

Rear maintenance LED displays are built with deeper cabinet structures, leaving enough internal space for wiring, cooling, and component layout. The modules are usually secured with screws from the back, and each cabinet may have a hinged or removable back cover for easy access during service.

The rear service approach follows a traditional service concept. It’s been widely used since the early days of LED engineering because it offers full access to the system’s internal structure. With this layout, each cabinet can be opened independently, and the technician can reach every part of the display without removing the front modules.

3. Rear Service vs Front Service LED Screen

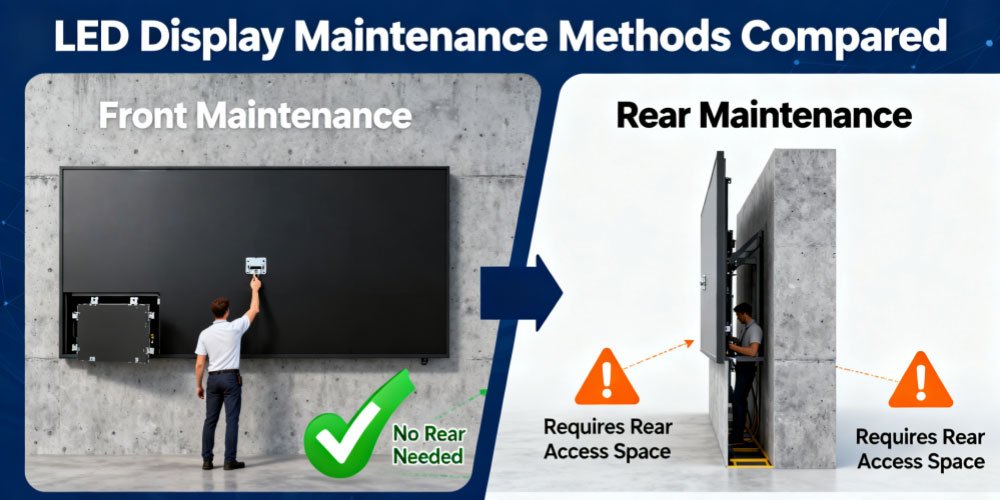

The differences between Front service and rear service begin at the cabinet design stage and affect everything that follows—installation, cooling, wiring, and even how the display handles long-term use.

Below, we’ll look at the main technical contrasts between these two led screen maintenance methods, starting with their structure and design.

3.1 Structural and Design Differences

The most visible difference between front access and rear access LED displays lies in how the cabinet is built and how the modules are installed.

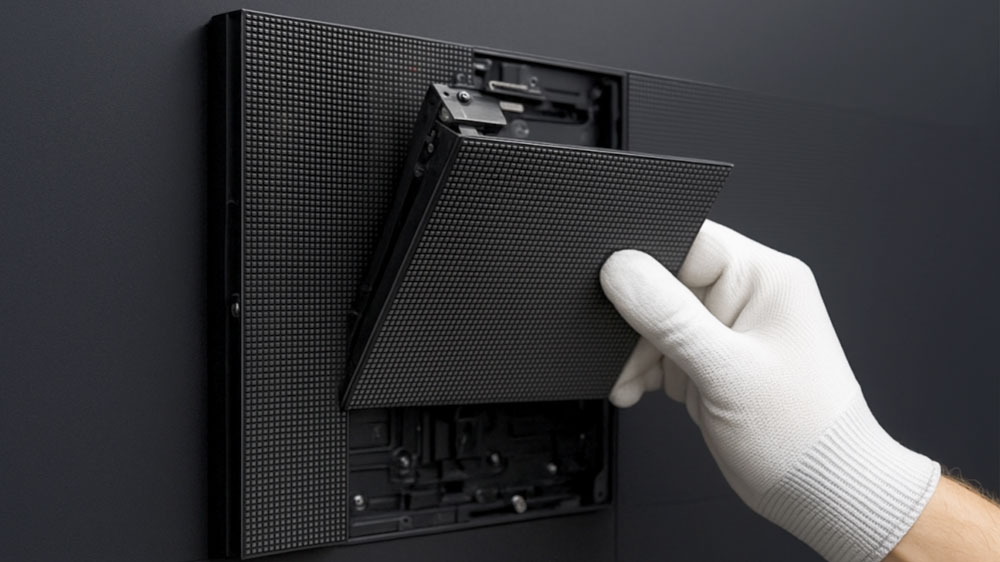

The modules attach to the front frame with magnetic mounts or spring locks, allowing quick removal without tools. Power supplies, receiving cards, and cables are mounted on front-access rails or brackets.

This design keeps the cabinet slim—often half the depth of a rear-access model. The result is a clean, flush-mounted display that can sit almost flat against a wall.

However, because all components are stacked closer to the screen surface, engineers must pay attention to heat dissipation and module alignment.

Thin cabinets can trap heat if ventilation is poor. To address this, many front-service systems use aluminum panels or internal ventilation paths to guide heat away from the modules.

Rear service LED displays rely on a box-type cabinet with a full rear panel or door.

Modules are fixed with screws or rear clamps, and the cabinet interior provides space for wiring, signal cables, and cooling.

Technicians access the back by opening the panel, making it easy to check power lines or replace components without disturbing the front surface.

The thicker cabinet allows for better airflow and more robust mechanical protection, which is useful in outdoor or large-format installations. Rear service designs also make it easier to integrate waterproofing and dust protection layers inside the structure—something that’s more challenging for thinner, front-service builds.

3.2 Suitable Scenarios Differences

The choice between front service and rear service LED screens usually comes down to one simple factor — space. Where and how the display is installed decides which design works best.

Let’s look at where each type fits in the real world.

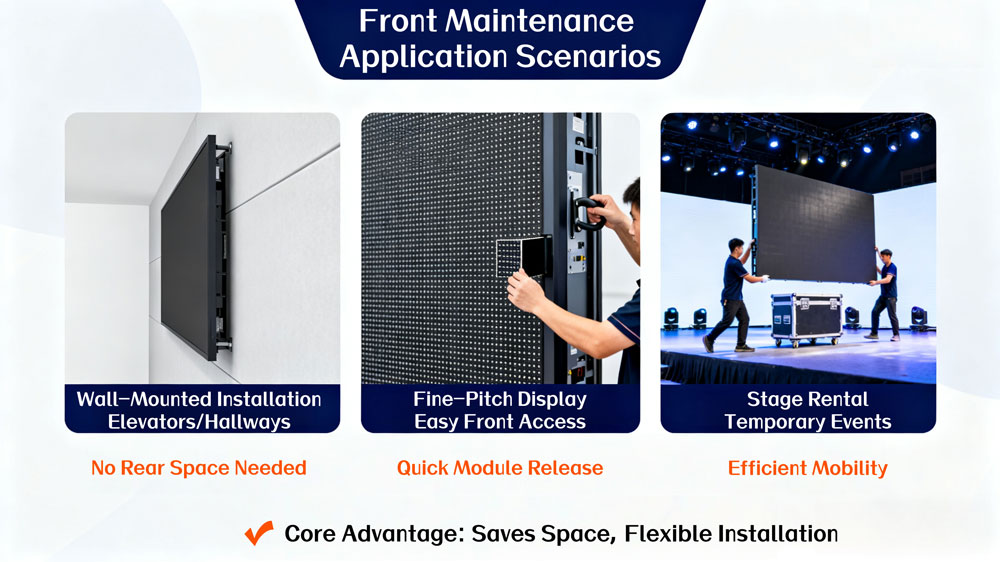

A front service LED module is designed for tight or closed spaces. If the display is mounted directly against a wall or built into a structure where the back is blocked, front access is the only practical choice.

Typical examples include:

Indoor wall installations — in shopping malls, control rooms, or meeting halls.
Narrow corridors and elevators — where there’s no room to leave a service passage behind the screen.
Rental and stage displays — where speed matters. Quick-release front modules save setup and teardown time.
Small-pitch LED displays — especially those under P2.0, where the modules are compact and precise maintenance is needed.

Front service is often chosen for projects where the display must be lightweight, thin, and visually clean. It lets designers create seamless, flush-mounted video walls that blend into modern interiors without bulky frames or service doors.

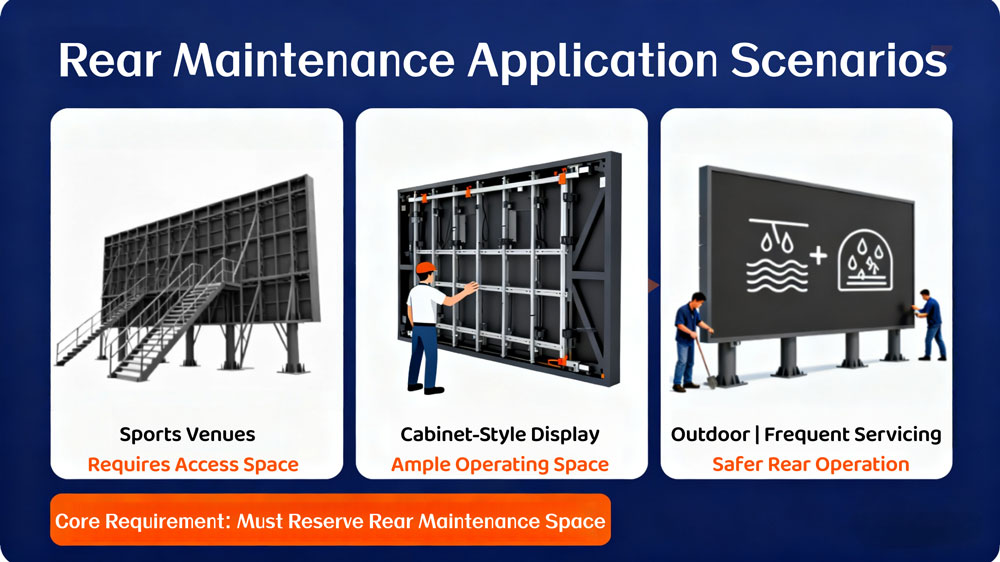

If the site allows a technician to walk or stand behind the screen, rear access is more practical and usually more economical.

You’ll often find rear maintenance designs in:

Outdoor billboards and advertising screens — large cabinets, easy access for technicians.
Sports stadiums and arenas — where big screens need stable frames and frequent servicing.
Fixed installations on structures or poles — such as roadside LED signs, where rear panels open for power or data checks.
Large LED walls with deep frames — where back access improves cooling and safety.

Rear service displays are preferred for heavy-duty use and outdoor environments because their thicker cabinets can handle weather protection, strong winds, and long operation hours.

3.3 Maintenance Efficiency and Cost Differences

When comparing front service and rear service LED screens, maintenance speed and overall cost are also two of the deciding factors.

Since all modules and core components are accessible from the front, technicians can remove or replace a faulty module in just a few minutes. This means no scaffolding, no climbing behind the structure, and no need to move the entire screen.

For example, in a retail store or control room where uptime is critical, quick maintenance from the front minimizes downtime and disruption. Front access is especially useful for high-density or small-pitch displays, where frequent fine adjustments might be needed.

However, front maintenance also requires trained personnel. Because the modules are often magnetically fixed and tightly aligned, careless handling can affect pixel alignment or cause visual gaps. Precision tools and skilled technicians are a must to keep the display perfectly flat and uniform.

Rear service LED displays take a bit more time to service because technicians must reach the back of the cabinet.

This process usually involves unlocking or opening a back door, unscrewing modules, and checking internal connections. While it takes longer, the workflow is straightforward and safe — there’s less risk of damaging the screen surface.

For large outdoor or stadium screens, rear access can actually be faster in practice because there’s already space and walkways behind the screen. Technicians can move freely, handle large modules, and carry out electrical testing without worrying about touching the display face.

3.4 Quick Comparison Table

The following table gives a clear overview of the main differences between front service and rear service LED displays.

If you’re planning a new installation or upgrading an existing one, this chart can help you decide which option matches your project needs.

Category	Front Service LED Screen	Rear Service LED Screen
Maintenance Direction	From the front of the screen	From the back of the screen
Cabinet Design	Thin, lightweight, compact	Thick, box-type, heavy-duty
Module Fixing Method	Magnetic or quick-release locks	Screws or rear clamps
Space Requirement	Minimal – no rear access needed	Needs 0.8-1.5 m behind for service
Installation Type	Wall-mounted, indoor, rental	Outdoor, pole-mounted, large-scale
Maintenance Speed	Fast – modules removed in minutes	Moderate – requires panel access
Maintenance Risk	Slight risk of pixel damage during handling	Safer, as servicing is from the back
Cooling Performance	Needs well-planned ventilation	Naturally better airflow
Initial Cost	Slightly higher (advanced mechanics)	Lower (simpler design)
Long-term Cost	Lower – less labor time	Higher – longer service time
Durability	Good for controlled indoor use	Stronger for outdoor or harsh environments
Typical Applications	Retail displays, showrooms, control rooms	Stadiums, billboards, outdoor signage

4. Choosing Between Rear and Front Access LED Display

Now that you know how front and rear maintenance systems differ, the next question is simple: which one should you choose?

4.1 Check the Installation Space

If your display will be mounted directly on a wall or inside a tight structure with no space behind, front access is your only real option.

But if your site already includes a rear service corridor or open framework—like an outdoor billboard or a large stage screen—then rear access makes more sense.

4.2 Consider the Maintenance Frequency

If the screen will be used in public indoor areas where uptime matters—like control rooms, airports, or shopping malls—choose front access. Quick repairs reduce downtime and keep the display running.

If the screen is outdoor and exposed to the elements, rear service often works better. It’s easier to open the back panels for regular cleaning and electrical checks without touching the display surface.

4.3 Evaluate the Display Size

Small and medium-sized screens are usually easier to build and maintain with front access. The lighter modules and compact structure fit well in indoor installations.

Large-scale screens—such as stadium displays or outdoor billboards—benefit from rear service. The heavier cabinets and deeper structure provide more stability and better cooling.

4.4 Balance Cost and Long-Term Value

A front maintenance LED display may cost slightly more at the start, but the savings come later. Faster maintenance, fewer tools, and less labor time can lower the lifetime cost.

A rear maintenance LED display has a lower upfront cost and uses standard components. However, it might require more structural work, like a steel frame or service platform behind it.

4.5 Match the Display to the Environment

Indoor projects: Front access is better for offices, control rooms, or shopping malls. It keeps the screen slim and neat.

Outdoor projects: Rear access is more durable, easier to protect from rain, dust, and heat, and better suited for large, high-brightness screens.

Rental events or temporary setups: front maintenance led modules are faster to swap, making them ideal for touring stages or exhibition booths.

💡 Need expert advice for your LED project?

Contact LedInCloud. We can help you assess your site, choose the right cabinet type, and plan a display that’s efficient to maintain and built to last.

5. Recommended LedInCloud Dual-Maintenance LED Display

If your project needs both front and rear maintenance options, you don’t have to choose between the two.

At LedInCloud, we provide professional-grade LED display systems designed for dual maintenance — giving you full flexibility during installation and servicing.

✔ XR Stage Series

The XR Stage Series is designed for rental, stage, and event environments where setup speed and visual quality both matter. Its 500×500mm lightweight cabinet makes assembly quick and secure, while the dual maintenance access allows technicians to work from either side of the display.

✔ OF1000 Series

Built for outdoor durability, the OF1000 Series combines rugged protection with dual maintenance capability. It features an IP65-rated enclosure and a tool-free fast lock system, making installation simple and safe even in large-scale outdoor environments.

✔ EV960 Series

The EV960 Series is a high-performance outdoor LED display designed for large-format 3D billboards and creative advertising applications. It supports dual service (front and rear maintenance) and is built with a durable aluminum chassis for superior protection and stability.

Whether you’re building an indoor stage wall or a large outdoor screen, LedInCloud offers LED display systems that give you both front and rear service flexibility — saving time, labor, and installation space.

Explore more LED display solutions at LedInCloud – LED Screen Cloud Platform.

6. Conclusion

Both front service and rear service LED displays have their own advantages. Front service screens save space and make maintenance faster, especially for indoor or wall-mounted projects. Rear service screens offer stronger protection and easier access for large outdoor setups.

The right choice depends on your space, budget, and how the screen will be used.
